Features

Specifications

Power Capacity: 6KVA

Safetyfeatures: Emergency Stop, Safety Light Curtains

Powersupply: 220V/380V, 50/60Hz

Max Payload: 10 Kg

Reach: 1500 Mm

Welding Type: Arc Welding

Application: Automotive, Construction, Shipbuilding, Metal Fabrication

Welding Cost: Low

Controlsystem: PLC With Touch Screen Interface

Condition: New

Maximum Payload: 10 Kg

Humidity: 20 % - 80 %

Item: Arc Welding Robot

Model: RW-5000

Welding Accuracy: High

Highlight:

Robotic Welding Arm

Robotic Laser Welding

Basic Infomation

Place of Origin: wuxi, china

Brand Name: CMC

Certification: ISO,CE

Payment & Shipping Terms

Packaging Details: Suitable for container shipping

Delivery Time: according to the machine requirment

Payment Terms: Down payment 30% T/T,70% T/T before shipping

Supply Ability: According requirement

Gallery

Robotic Welding Machine with Adaptive Welding Capabilities, 6 kg Payload ±0.05 mm Repeatability

Product Description

White Automated Robotic Welding Machine Robotic Laser Welding

Welding - Arc Robots

With Adaptive Welding Capabilities

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

Kawasaki's BA Series and R Series arc welding robots use the latest arc welding technology to rival the quality of a skilled human welder. The robots are equipped standard with arc welding specific software to enable quick and easy programming of the process path. Adaptive welding functionality is available to modify robot position, weave pattern and speed during welding to fill variable joints. Their built-in intelligence, flexibility and high accuracy make Kawasaki's arc welding robots ideal for a wide range of arc welding applications.

Typical Applications:

Arc Welding

Arc Welding Software:

Offline Programming Software - KCONG

BA006N Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

Kawasaki's sophisticated arc welding robots demonstrate the potential of a skilled operator from the moment they are installed.

BA006N Overview:

Payload: 6 kg

Axes: 6

Reach: 1,445 mm

Repeatability: ±0.05 mm

Applications:

Arc Welding

BA006N SPECIFICATIONS

Type	Articulated Robot
Degree of Freedom	6
Max. Payload (kg)	6
Max. Reach (mm)	1,445
Positional Repeatability (mm)	±0.05
Motion Range (°)	Arm Rotation (JT1): ±165 Arm Out-in (JT2): +150 - −90 Arm Up-down (JT3): +45 - −175 Wrist Swivel (JT4): ±180 Wrist Bend (JT5): ±135 Wrist Twist (JT6): ±360
Max Speed (°/s)	Arm Rotation (JT1): 240 Arm Out-in (JT2): 240 Arm Up-down (JT3): 220 Wrist Swivel (JT4): 430 Wrist Bend (JT5): 430 Wrist Twist (JT6): 650
Moment (N•m)	Wrist Swivel (JT4): 12 Wrist Bend (JT5): 12 Wrist Twist (JT6): 3.75
Moment of Inertia (kg•m²)	Wrist Swivel (JT4): 0.4 Wrist Bend (JT5): 0.4 Wrist Twist (JT6): 0.07
Mass (kg)	150
Body Color	Munsell 10GY9/1 equivalent
Installation	Floor, Ceiling
Environmental Condition	Ambient Temperature (°C): 0 - 45 Relative Humidity (%): 35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA)	2.0
Degree of Protection	IP65
Controller	America: E01 Europe: Japan & Asia:

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

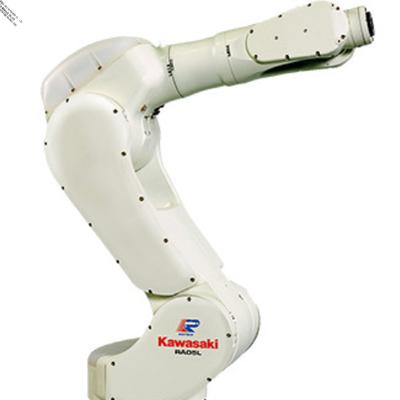

RA005L Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

The R Series Robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R Series Robots ideal for a wide range of applications throughout a multitude of diverse industries.

RA005L Overview:

Payload: 5 kg

Axes: 6

Reach: 903 mm

Repeatability: ±0.03 mm

Applications:

Arc Welding

RA005L SPECIFICATIONS

Type	Articulated Robot
Degree of Freedom	6
Max. Payload (kg)	5
Max. Reach (mm)	903
Positional Repeatability (mm)	±0.03
Motion Range (°)	Arm Rotation (JT1): ±180 Arm Out-in (JT2): +135 - −80 Arm Up-down (JT3): +118 - −172 Wrist Swivel (JT4): ±360 Wrist Bend (JT5): ±145 Wrist Twist (JT6): ±360
Max Speed (°/s)	Arm Rotation (JT1): 300 Arm Out-in (JT2): 300 Arm Up-down (JT3): 300 Wrist Swivel (JT4): 460 Wrist Bend (JT5): 460 Wrist Twist (JT6): 740
Moment (N•m)	Wrist Swivel (JT4): 12.3 Wrist Bend (JT5): 12.3 Wrist Twist (JT6): 7
Moment of Inertia (kg•m²)	Wrist Swivel (JT4): 0.4 Wrist Bend (JT5): 0.4 Wrist Twist (JT6): 0.12
Mass (kg)	37
Body Color	Munsell 10GY9/1 equivalent
Installation	Floor, Ceiling
Environmental Condition	Ambient Temperature (°C): 0 - 45 Relative Humidity (%): 35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA)	1.5
Degree of Protection	IP65
Controller	America: E77 Europe: E71 Japan & Asia: E74

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

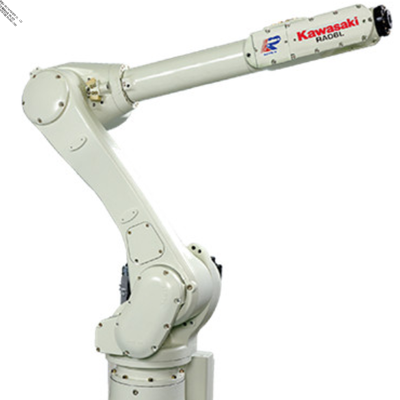

RA006L Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

RA006L Overview:

Payload: 6 kg

Axes: 6

Reach: 1,650 mm

Repeatability: ±0.06 mm

RA006L SPECIFICATIONS

Type	Articulated Robot
Degree of Freedom	6
Max. Payload (kg)	6
Max. Reach (mm)	1,650
Positional Repeatability (mm)	±0.06
Motion Range (°)	Arm Rotation (JT1): ±180 Arm Out-in (JT2): +145 - −105 Arm Up-down (JT3): +150 - −163 Wrist Swivel (JT4): ±270 Wrist Bend (JT5): ±145 Wrist Twist (JT6): ±360
Max Speed (°/s)	Arm Rotation (JT1): 250 Arm Out-in (JT2): 250 Arm Up-down (JT3): 215 Wrist Swivel (JT4): 365 Wrist Bend (JT5): 380 Wrist Twist (JT6): 700
Moment (N•m)	Wrist Swivel (JT4): 13 Wrist Bend (JT5): 13 Wrist Twist (JT6): 7.5
Moment of Inertia (kg•m²)	Wrist Swivel (JT4): 0.45 Wrist Bend (JT5): 0.45 Wrist Twist (JT6): 0.14
Mass (kg)	150
Body Color	Munsell 10GY9/1 equivalent
Installation	Floor, Ceiling
Environmental Condition	Ambient Temperature (°C): 0 - 45 Relative Humidity (%): 35 - 85 (No dew, nor frost allowed)
Power Requirements (kVA)	2.0
Degree of Protection	IP65
Controller	America: E01 Europe: Japan & Asia:

✽1: conforms to ISO9283

✽2: depends on the payload and motion patterns

RA010N Robot

SKILLED AND FLEXIBLE ARC WELDING ROBOTS

RA010N Overview:

Payload: 10 kg

Axes: 6

Reach: 1,450 mm

Repeatability: ±0.06 mm

MOTION RANGE & DIMENSIONS

Click on the drawings below to view. Dimensions shown are in (mm).
