|Height:||3m - 35m||Name:||Customized Street Light Pole Making Machine Supplier In China|
Polygonal pole welding machine,
3m pole welding machine,
CMC automated welding machine

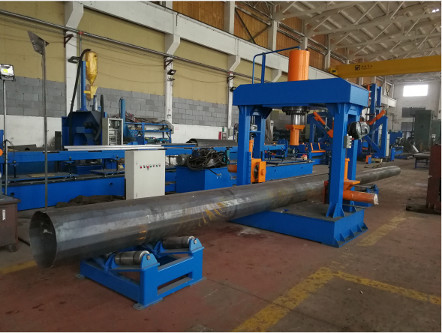

450 Seam Welder - Light Pole Machine For Light Pole Seam Welding
|Name||Other Name||Brand Name||CMC|
|Light pole shut-welding machine||
Close welding machine
Pole welding machine
Tube welding machine
|Feature||Specially designed for circle and polygon pole/tube|
Length: max 16 meters
APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 12000MM.
LIGHT POLE SHUT-WELDING MACHINE MODEL: 450/12000, it is suitable for one piece type polygonal and circle taper light pole. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
1. Long working table with rack for pull dolly.
2. Dolly for pulling pole.
3. Hydraulic clamping and welding unit (including 3 sets clamping wheels for polygonal and circle pole).
4. Submerged Arc Welding and Gas-shielded welding (CO2) Welding system, including welding wire feeding system.
5. The flux recovering system.
6. Back support unit.
Suitable light pole Thickness base on mild steel Q235
|Light pole diameter: 60~450mm||2.8~3mm|
|Light pole diameter:70~450mm||2.8~4mm|
|Light pole diameter: 250~450mm||2.8~6mm|
Power of Motor for Pump
Power of Motor for pulling dolly
4 KW, AC speed changeable type.
630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding
Welding wire diameter
1.2,1.6~2mm welding wire, according the pole thickness to do selection
|9||Working Speed||1.1~2m/min (Note: different thickness speed will be different|
|10||Gross weight||7000 kg|
Overall sizes (mm)
14meter table + 7 meter’s back support also included
OPTION:( detail see attached photos)
Note:, If chose the Lincoln welding machine,normally it is suitable for Submerged Arc Welding process
Note:for the standard machine, the dolly return back can be motorized with working speed, it is very slow for return back process. So, normally, the operator will open the dolly clutch and push the dolly by manual.
In order to reduce the manpower, we have option: Fast motorized return back for dolly. The operator only push button, the dolly will be back to the welding head.
See attached detail photos.
It is suitable for small diameter big thickness light pole, or steel plate with high tensile strength light pole.
With this additional option, the diameter from 60~450mm, thickness 2.8~6mm, all pole can be suitable. And easy for operation.
3. Product basic information
|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Metal pallet|
|Delivery Time:||50-60 days|
|Payment Terms:||Ex works/ FOB SHANGHAI/ CIF|
5. Light pole making process
