Multifunctional Steel plates, pipe Shot Blasting Machinery Automatic digital control

Multifunctional  Steel plates, pipe Shot Blasting Machinery Automatic digital control
Multifunctional  Steel plates, pipe Shot Blasting Machinery Automatic digital control Multifunctional  Steel plates, pipe Shot Blasting Machinery Automatic digital control Multifunctional  Steel plates, pipe Shot Blasting Machinery Automatic digital control Multifunctional  Steel plates, pipe Shot Blasting Machinery Automatic digital control

Large Image :  Multifunctional Steel plates, pipe Shot Blasting Machinery Automatic digital control

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Certification: CE, ISO
Model Number: HPG126
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container
Delivery Time: 20-60 days after receiving the deposit.
Payment Terms: T/T,L/C
Supply Ability: 12 Sets per month.

Multifunctional Steel plates, pipe Shot Blasting Machinery Automatic digital control

Description
Highlight:

shot blasting equipment

,

automatic shot blasting machine

HPG Heavy H-beam Shot Blasting Series HPG126​



Quick Detail:



Name Shot blasting machine Model HPG126
Industry used Forging, Foudry, Casting Brand CMC
Machine Type Automatic digital control Color Customized
After-sales service provided Engineers availabe to service machiney overseas Cleaning process Steel shot





Description:

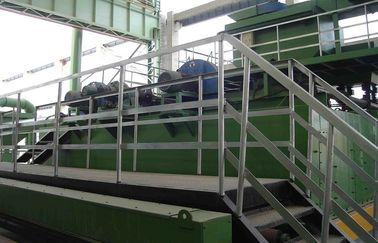

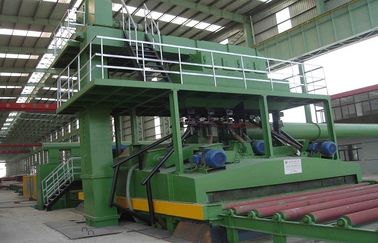

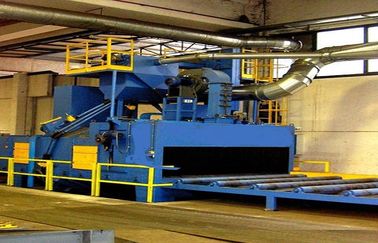

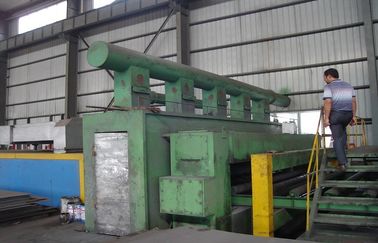

The shot blasting machine of this series is a kind of multifunctional shot blasting equipment of large scale welding structure, H-beam, space grid, steel plate. It can clean large “I” shape steel, heavy welded steel structure, belonging to a roller continuous operation equipment. This equipment selects of the world’s advanced single disc curve blade efficient shot blasting machine and it use the world’s advanced single disc curve blade efficient shot blasting machine, it can shot off high speed dense projectile hitting steel every parts in the primitive state to make stereo and all-around clean.





Applications:



Typically used in situations requiring the blasting of H beams, Angles and flats, steel plates, steel pipes, square tube, box iron at a high rate. Steel preprocessing machine line mainly used for construction machinery, mining machinery, chemical equipment, pressure vessel, transportation vehicle, ship and bridge and architectural profile industry etc. It used for improve the surface quality and resistance to corrosion.



· removing the rust, mill scale , weld spatter and other contaminants of work piece

· achiving a fine surface with certain roughness

· reducing the internal stres of work piece

· improving the ability of adhesion and anticorrosion

· improving the steel quality

· prolong the service life of work piece







Specifications:



Model



Technical parameters

HPG126 HPG1810 HPG2012
Effective cleaning height(mm) 1200 1800 2000
Effective cleaning widthness(mm) 600 1000 1200
Chamber body size of feeding(mm) 1230×800 1830×1200 2030×1400
Length of cleaning workpiece(mm) 3000-15000 3000-15000 3000-15000
Thickness of cleaning steel plate(mm) 5-60 5-60 5-60
Cleaning material specification 1200-600 1800-1000 2000-1200
Roller conveyor speed ( frequency stepless speed control(m/min) 0.5-6 0.5-6 0.5-5.5
Blast volume(kg/min) 6×220 8×220 8×220
Steel first loading(kg) 3000 5000 5000
Ventilation rate(m3/h) 7500 11700 15000
Depth below the ground(mm) 2030 2030 2260
Overall dimensions (mm) 26180×3700×7800 30360×3700×8400 30740×4600×8900
Total power (kw) 108.4 130.4 140.9
