Roller conveyor steel plate shot blasting machine for Forging , Foudry , Casting Industry

Roller conveyor steel plate shot blasting machine for Forging , Foudry , Casting Industry

Brand Name: CMC
Model Number: ZQ320-22
MOQ: 1 Set
Price: Negotiate
Payment Terms: T/T,L/C
Supply Ability: 20 Sets per month.
Detail Information
Place of Origin:
wuxi,China
Certification:
CE, ISO
Packaging Details:
Container
Supply Ability:
20 Sets per month.
Highlight:

shot blasting equipment

,

steel shot blasting equipment

Product Description

Roller conveyor shot blast machine ZQ320-22



Quick Detail:



Name Shot blasting machine Model ZQ320-22
Industry used Forging, Foudry, Casting Brand CMC
Machine type Automatic digital control Color Customized
After-sales service provided Engineers availabe to service machiney overseas Cleaning process Steel shot





Description:



Designed and produced by adopting the advantages of similar products from both within the country and abroad.

♦ The rusting cleaning part adopts high-efficient blast wheel and full shutter type shot sand separator.

♦ The sweeping machine adopts specially made high-strengh nylon rolling brush and high-pressure ventilator.

♦ The preheating and drying parts may adopt various heating methods.

♦ The paint spraying part adopts high-pressure airless spraying method.

♦ Complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level.



It's mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plates and various structural sections, as well as for cleaning and strengthening of metal structure parts.





Applications:



Steel plate shot blasting cleaning machine belongs to roller-type blast cleaning machine,mainly used for buildings ,bridges and other industries with large l-beam,H-beam steel structure such as size pieces of high stress and the elimination of cleaning the surface rust.





Specifications:



Model



Technical parameters

ZZ320-11 ZQ320-11 ZQ320-15 ZQ320-22
Impeller diameter(mm) φ330 Φ330 φ400 φ400
Impeller speed(Rev/min) 2935 2935 2935 2450
Pills casting speed(M/S) 55~65 65~75 65~75 60~70
Radial scattering angle 55-60 55-60 55-60 55-60
Axial scattering angle 8 8 8 8
Maximum shot volume(Kg/min) 220 240 280 350
Supporting the motor power(KW) 11 11 15 22
Recommended shot(mm) Ф1.2—Ф1.5 Ф1.2—Ф1.5 Ф1.2—Ф1.5 Ф1.2—Ф1.5







Advantages:



1. We provide some spare parts for free and delivered together with machine delivery.



2. We will dispatch professional person go to customer's factory to do on-site installation, assembly and commissioning.



3. Generally speaking, our Quality Guarantee is One year, but about this point, we also do it customized, that means we can extend warranty time according to customer's demands and requirements on the basis of agreement.



4. We will do the return visit for customers to inquire the using status, maintenance situation and so on to insure customers' beneficial maximum.

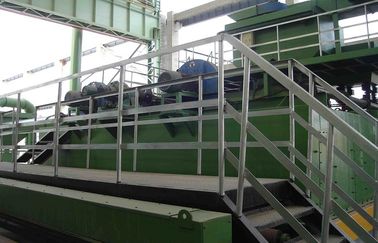

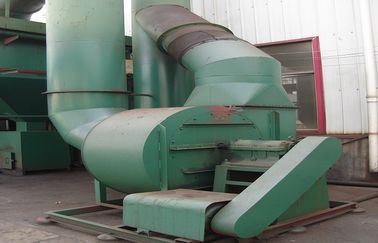

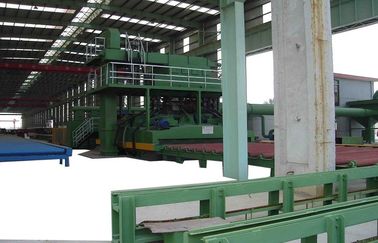

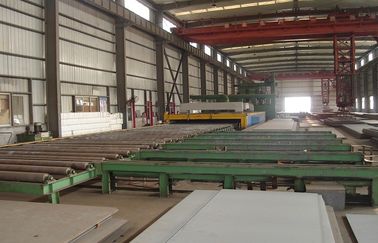

Detailed pictures:



Roller conveyor steel plate shot blasting machine for Forging , Foudry , Casting Industry 0
