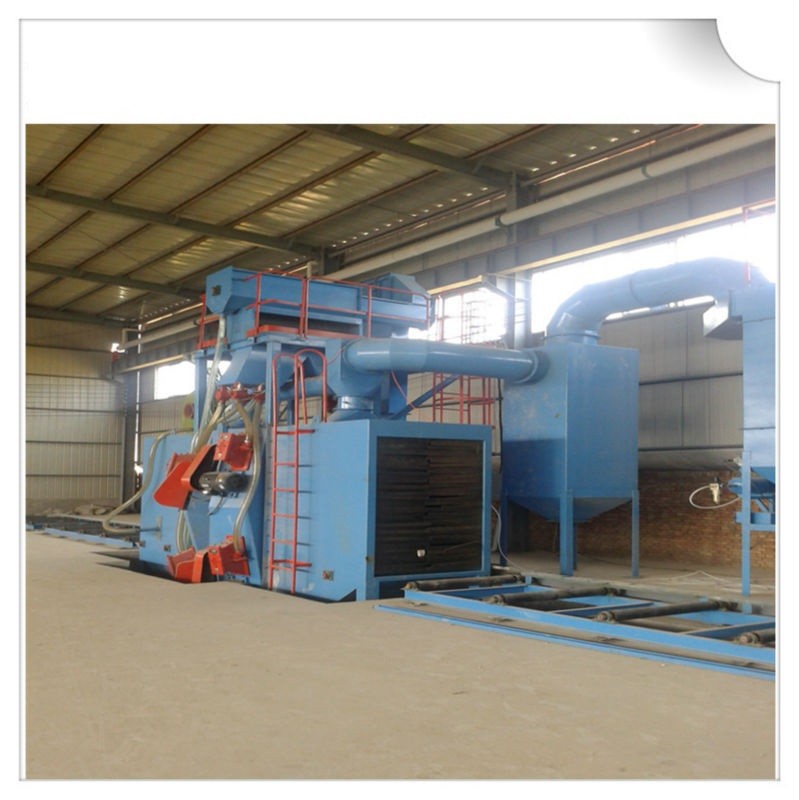

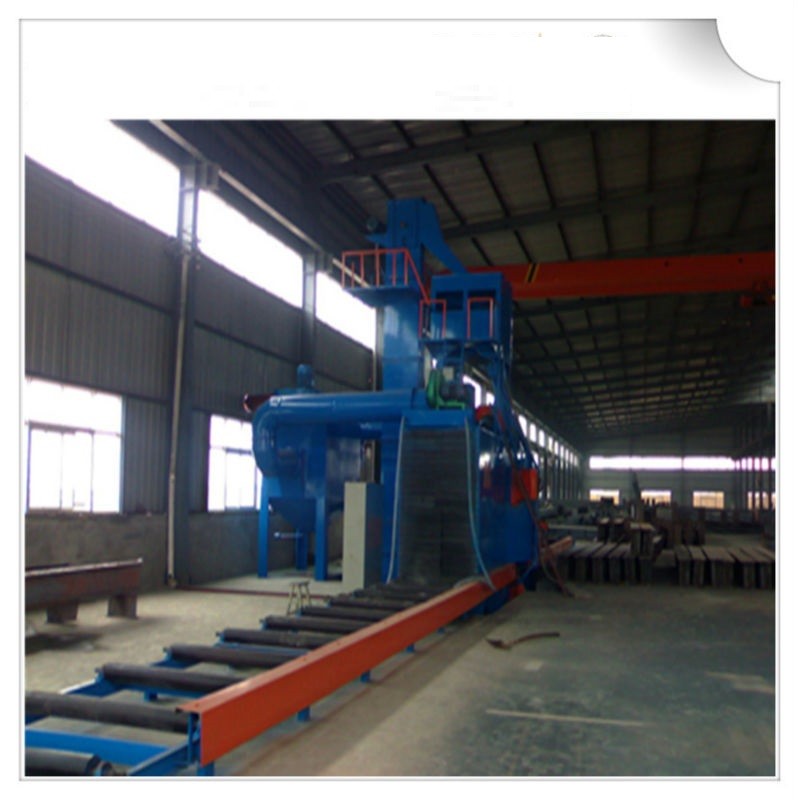

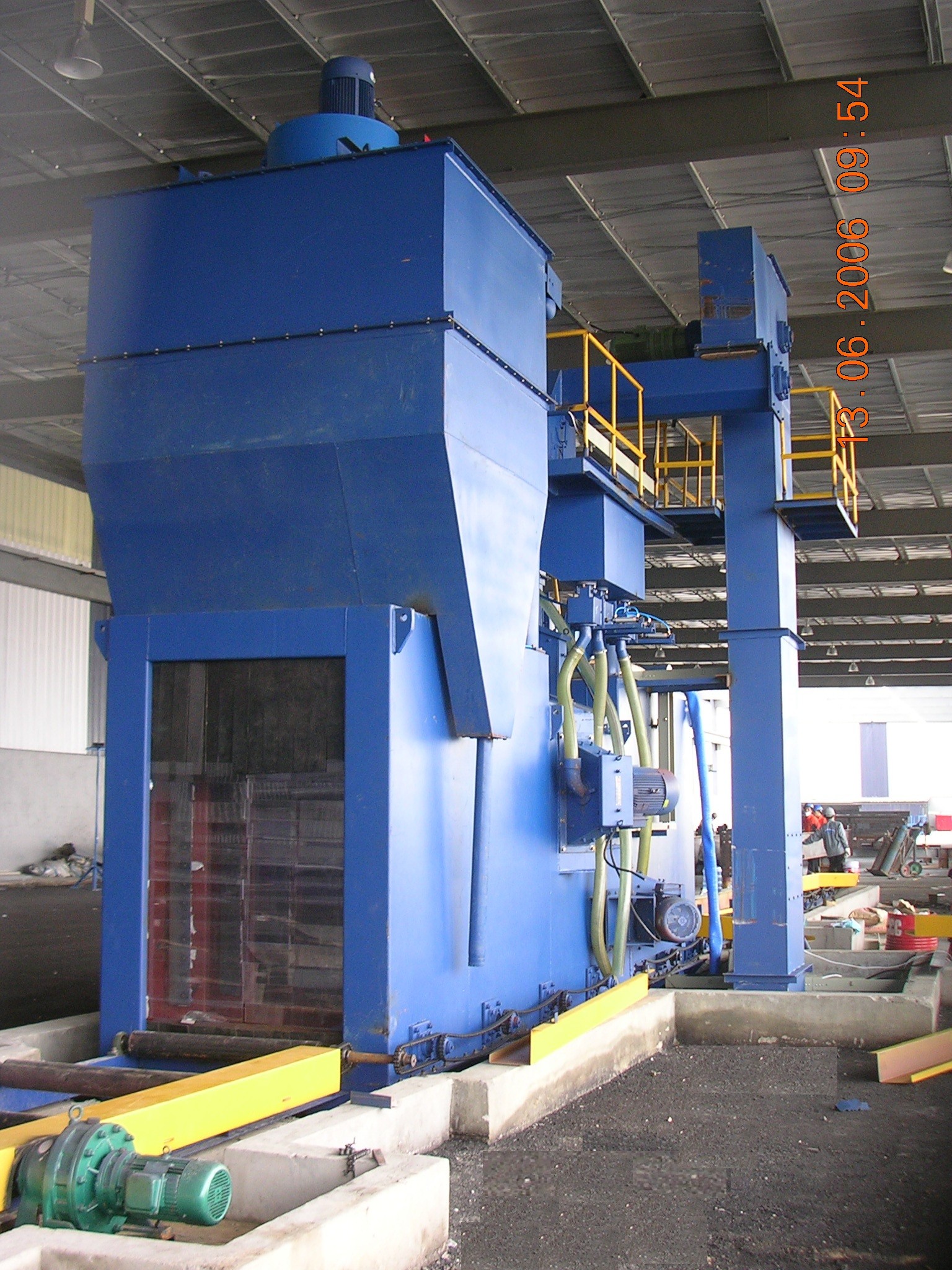

Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine

Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine
Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine

Large Image :  Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Certification: CE, ISO
Model Number: ZQ320-11
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container
Delivery Time: 20-60 days after receiving the deposit.
Payment Terms: T/T,L/C
Supply Ability: 30 Sets per month.

Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine

Description
Highlight:

automatic shot blasting machine

,

steel shot blasting equipment

Steel structure H beam shot blasting machine ZQ320-11



Quick Detail:



Name Shot blasting machine Model ZQ320-11
Industry used Forging, Foudry, Casting Brand CMC
Machine Type Automatic digital control Color Customized
After-sales service provided Engineers availabe to service machiney overseas Cleaning process Steel shot





Description:



1. Working principle



Sot blasting machine, in the cleaning process ,the adjustable speed conveyor roller is controlled by the electric,it will transport the steel workpieces or steel projectile body to the blasting area of cleaning machine room , its whole body on each side is hit and friction by the strong intensive projectile from different coordinate orientation ,

so that the oxide scale, rust and dirt on the rapidly falling, get some roughness and smooth steel surface ,on both sides of the exits and entrances of outdoor, roller loadand unload the workpieces. Projectiles falled above the steel and dust and rust is purged by the venting device , scattered down the pill dust mixture is transported by screw conveyor into the chamber funnel, vertical and horizontal screw conveyor brings together below the lelevator, then rise to separater on the upper part , purity projectile after separation drops in the separator hopper for recycling shot blasting. the dust produced during the shot blast cleaning is sent to the dust removal system by the exhaust pipe,treated air is discharge to atmosphere,the granular dust is collected .





2. Production flow for shot blasting machine



Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine 0





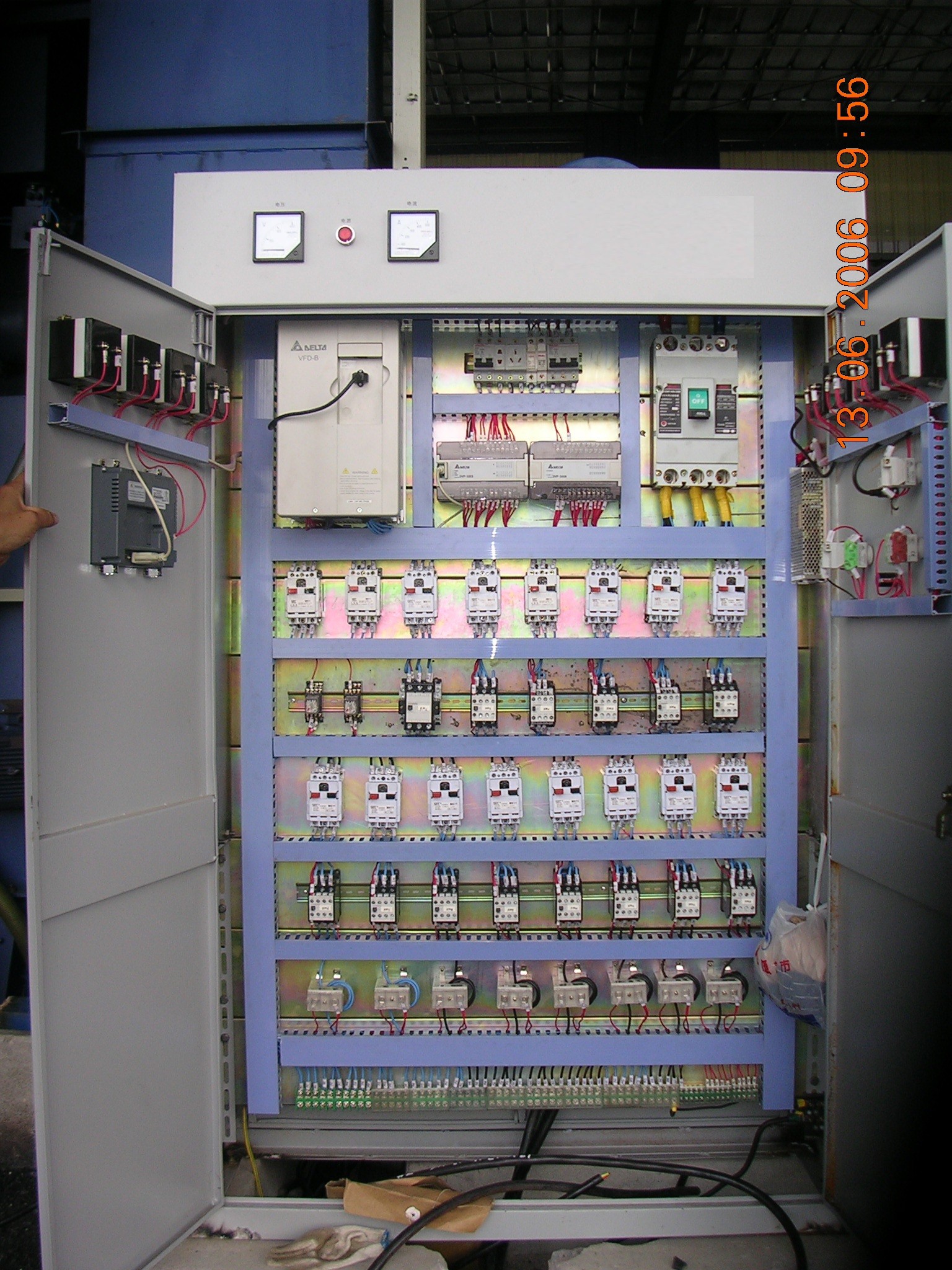

3. Equipment components

Steel structure H beam shot blasting machine / Roller Conveyor Sand Blasting Machine 1







Applications:



Steel plate shot blasting cleaning machine belongs to roller-type blast cleaning machine,mainly used for buildings, bridges and other industries with large l-beam,H-beam steel structure such as size pieces of high stress and the elimination of cleaning the surface rust.





Specifications:



Model



Technical parameters

ZZ320-11 ZQ320-11 ZQ320-15 ZQ320-22
Impeller diameter(mm) φ330 Φ330 φ400 φ400
Impeller speed(Rev/min) 2935 2935 2935 2450
Pills casting speed(M/S) 55~65 65~75 65~75 60~70
Radial scattering angle 55-60 55-60 55-60 55-60
Axial scattering angle 8 8 8 8
Maximum shot volume(Kg/min) 220 240 280 350
Supporting the motor power(KW) 11 11 15 22
Recommended shot(mm) Ф1.2—Ф1.5 Ф1.2—Ф1.5 Ф1.2—Ф1.5 Ф1.2—Ф1.5
