Automatic Shot Blasting Machine for cleaning heavy welded steel structure

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Certification: CE, ISO
Model Number: HPG3020
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Container
Delivery Time: 20-60 days after receiving the deposit.
Payment Terms: T/T,L/C
Supply Ability: 10 Sets per month.

Detail Information

High Light:

shot blasting equipment


steel shot blasting equipment

Product Description

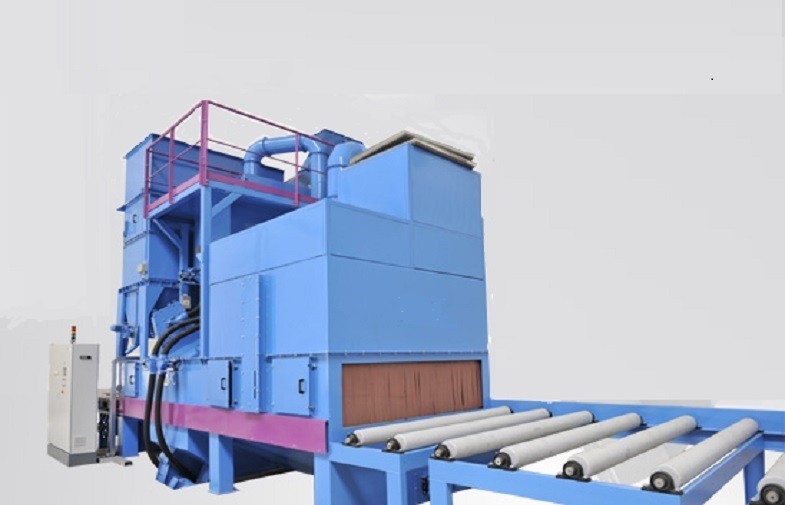

HPG Heavy H-beam Shot Blasting Series HPG3020


Quick Detail:


Name Shot blasting machine Model HPG3020
Industry used Forging, Foudry, Casting Brand CMC
Machine Type Automatic digital control Color Customized
After-sales service provided Engineers availabe to service machiney overseas Cleaning process Steel shot

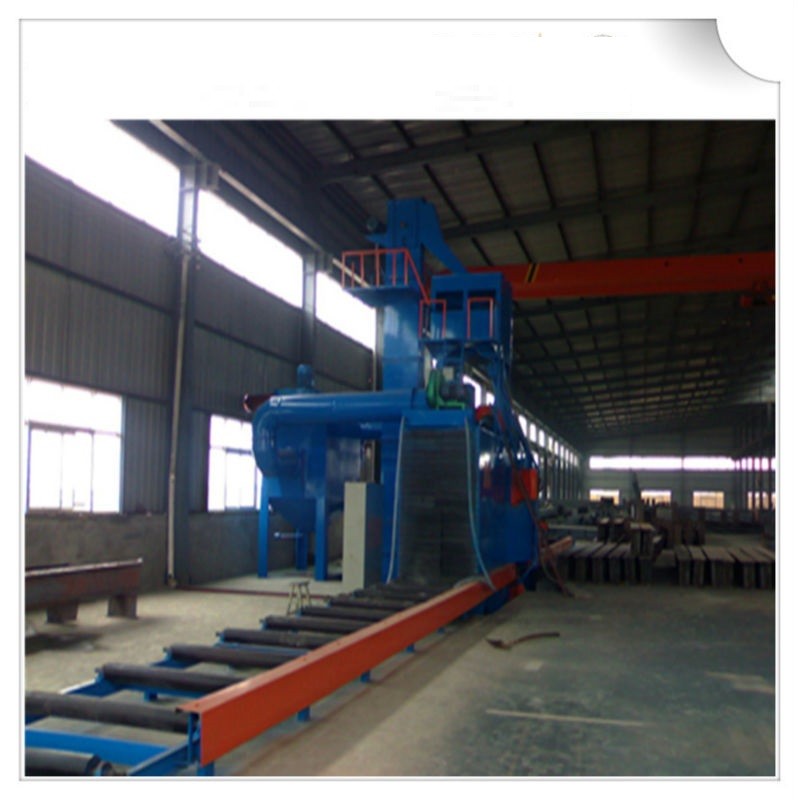

The shot blasting machine of this series is a kind of multifunctional shot blasting equipment of large scale welding structure, H-beam, space grid, steel plate. It can clean large “I” shape steel, heavy welded steel structure, belonging to a roller continuous operation equipment. This equipment selects of the world’s advanced single disc curve blade efficient shot blasting machine and it use the world’s advanced single disc curve blade efficient shot blasting machine, it can shot off high speed dense projectile hitting steel every parts in the primitive state to make stereo and all-around clean.






Typically used in situations requiring the blasting of H beams, Angles and flats, steel plates, steel pipes, square tube, box iron at a high rate. Steel preprocessing machine line mainly used for construction machinery, mining machinery, chemical equipment, pressure vessel, transportation vehicle, ship and bridge and architectural profile industry etc. It used for improve the surface quality and resistance to corrosion.



· removing the rust, mill scale , weld spatter and other contaminants of work piece

· achiving a fine surface with certain roughness

· reducing the internal stres of work piece

· improving the ability of adhesion and anticorrosion

· improving the steel quality

· prolong the service life of work piece







Technical parameters

HPG2512 HPG2515 HPG3020
Effective cleaning height(mm) 2500 2500 3000
Effective cleaning widthness(mm) 1200 1500 2000
Chamber body size of feeding(mm) 2530×1400 2530×1700 3030×2200
Length of cleaning workpiece(mm) 3000-18000 3000-18000 3000-18000
Thickness of cleaning steel plate(mm) 5-80 5-100 5-120
Cleaning material specification 2500-1200 2500-1500 3000-2000
Roller conveyor speed ( frequency stepless speed control(m/min) 0.5-5.5 0.4-4 0.5-5.5
Blast volume(kg/min) 12×220 12×220 14×220
Steel first loading(kg) 6500 7000 8000
Ventilation rate(m3/h) 22000 25000 33000
Depth below the ground(mm) 2260 2260 2930
Overall dimensions (mm) 37820×4600×9500 40820×5000×9600 40978×5500×11090
Total power (kw) 201 208.5 253
