| Brand Name: | CMC |
| Model Number: | 300/250 |
| MOQ: | 1 set |
| Price: | Negociate |
| Payment Terms: | TT,LC,FOB,CIF |
| Supply Ability: | Negociate |
Quick Detail:
| Name | Othe Name | Brand Name | CMC |
| CNC Light Pole door cutting machine |
Pole door cutting machine Pipe door cutting machine Octagonal pole cutting Conical pole cutting Tube cutting |
Feature | Cutting shape can be circle, square, rectangle, elliptic type |
| Cutting capacity |
2500mm in length 58mm min outer diameter 300mm max outer diameter |
Usage Industrial | Different shapes of pipe or tubes door cutting |
Description

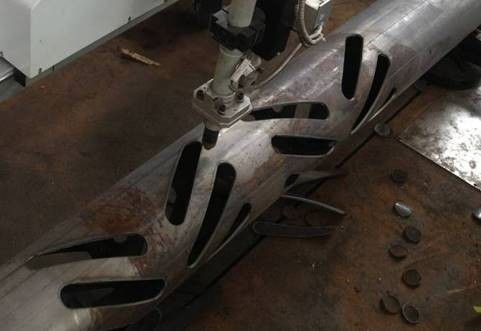

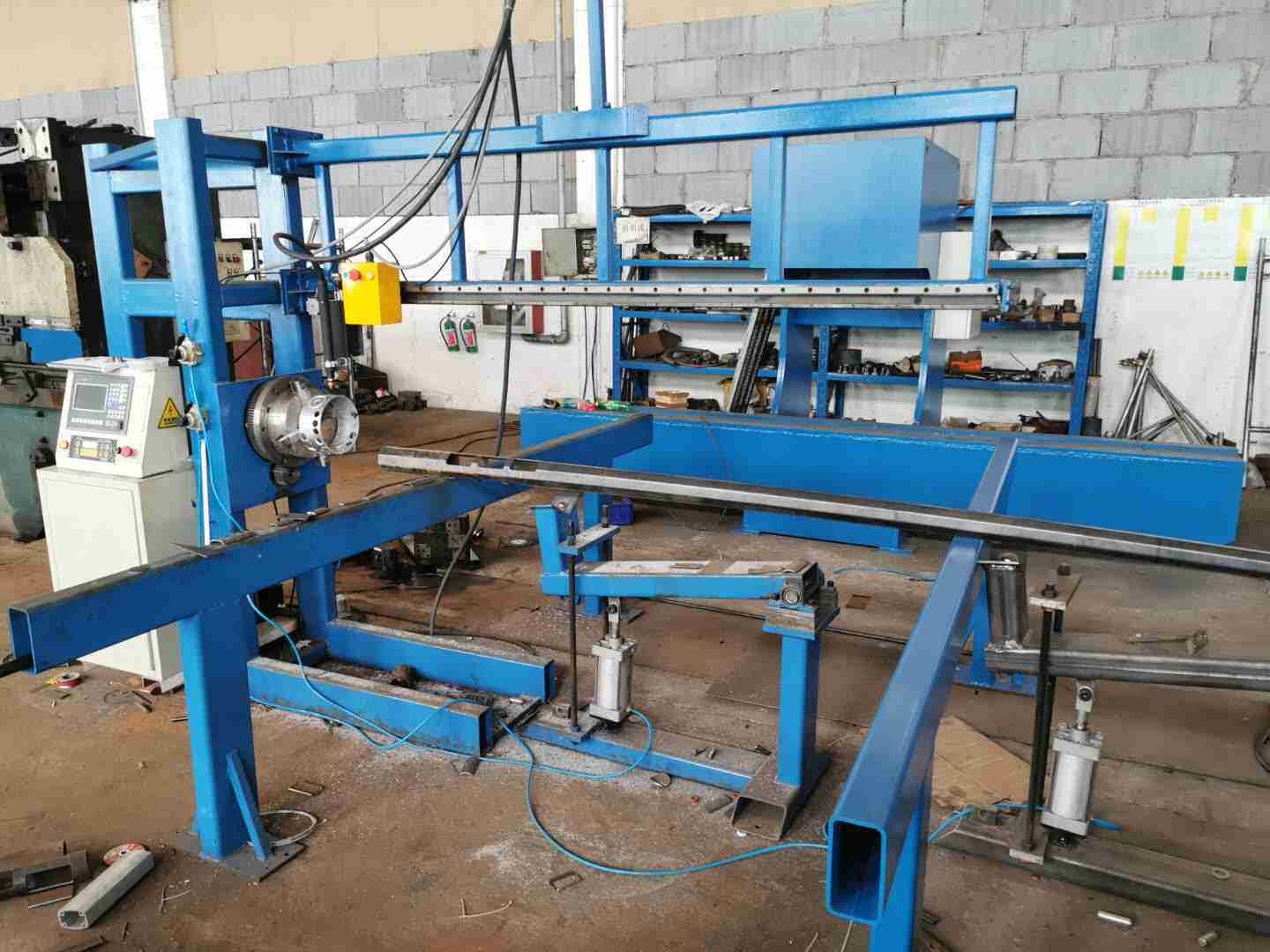

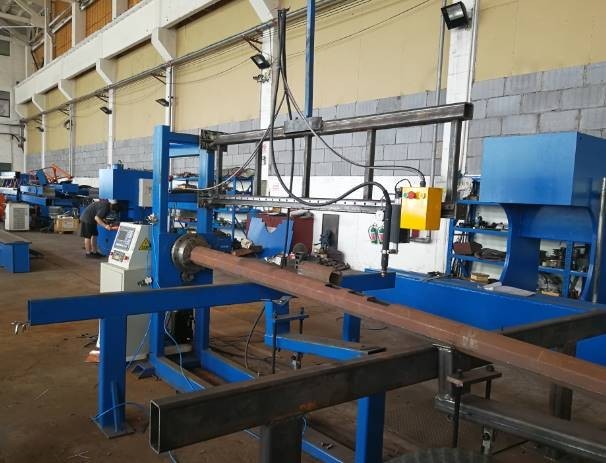

It is suitable for conical, octagonal light pole door CNC cutting, Also it can cut round pipe. The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.

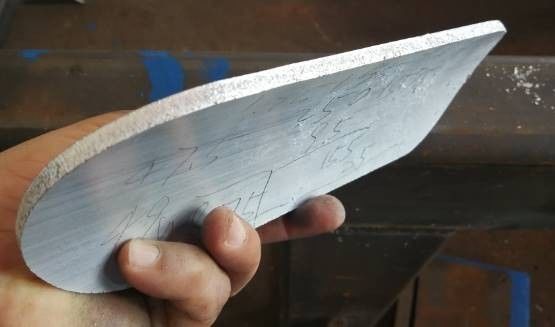

The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better then flame cutting.
Specifications
| No. | Item | Parameter |
| 1 | Max. cutting length |
2500mm (for once cutting) Note: the cutting gun stand is moving type , so, move the dolly, it can cut any length pole or pipe. |
| 2 | Min pipe outer diameter | 58 |
| 3 | Max pipe outer diameter | 300 |
| 4 | Plasma source |
Hypertherm Powermax 65 ( according requirements) |
| 5 | Max plasma perforation cutting thickness | Base on Plasma sourcec |
| 6 | Max plasma edge cutting thickness | Base on Plasma source |
| 7 | Max.cutting speed |

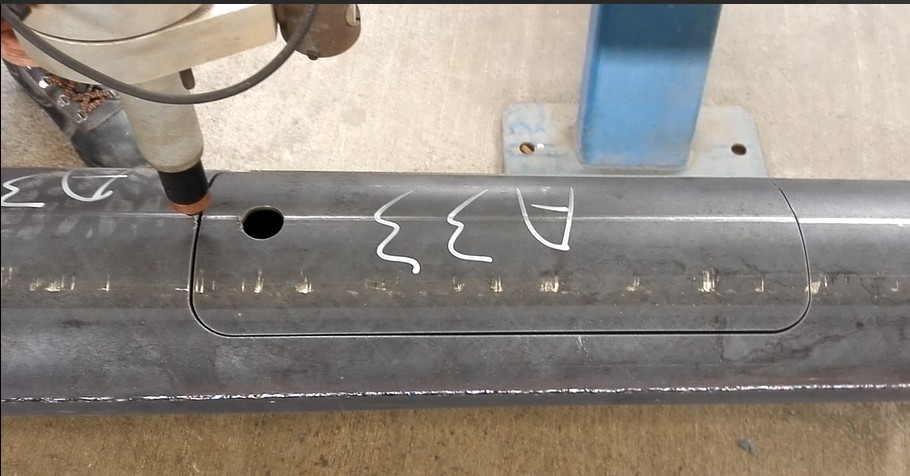

Base on Plasma source (for one normal light pole electrical door, the cutting time is about 30~40 seconds) |
| 8 | Main motor/Brand | Servo motor/Chinese |
| 9 | Main motor power | 1.5kw, 1500rmp |
| 10 | CNC system | ADTECH HC4300 |
| 11 | Control axis | 2 axis, X,Z |
| 12 | CNC Plasma cutting torch | 1 set |
| 13 | Arc voltage height controller | Portable CNC Plasma Torch Controller, XPTHC-Portable300 |
| 14 | Programming Software | 1, Chinese |
| 15 | Environmental temperature | 0-45℃ |
| 16 | Humidity | <90%, no condensation |
| 17 | Surroundings | Ventilation, no big shake |
| 18 |
Input voltage (Can be made according to buyer’s country voltage requirement.) |
Single phase,220V, 50HZ Three phases, 380V, 50HZ |
