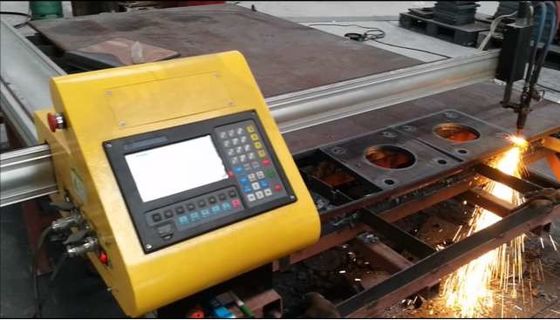

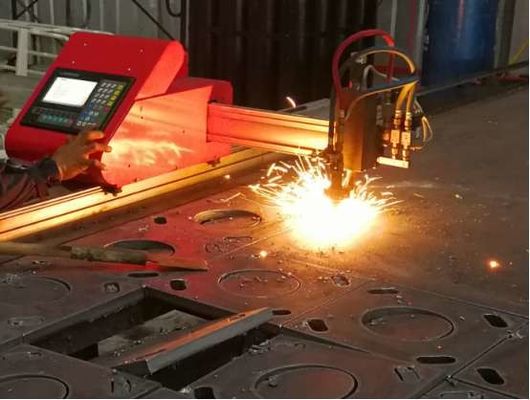

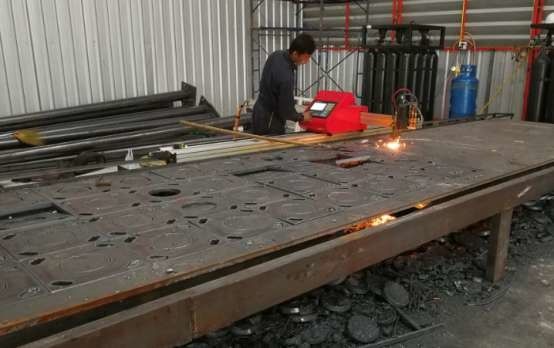

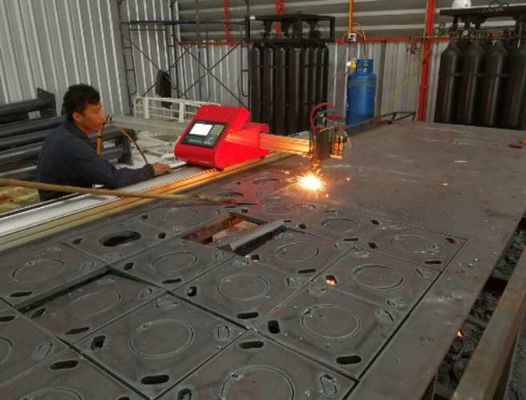

CNC Portable Flame Cutting Machine , Light Pole Machine to Cut Light Pole Base Plate

Product Details:
Place of Origin: WUXI
Brand Name: CMC
Model Number: 1500*3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: metal pallet and plastic cover
Delivery Time: 25-30days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

Detail Information

High Light:

light pole production line

Product Description

Quick Detail:


Name Other names Brand Name CMC
CNC Flame Cutting Machine -Light pole machine for cutting light pole base plate

CNC flame cutting machine

CNC cutting

Mild steel cutting

Big thickness cutting

Thick metal sheet cutting

Cutting range

X axis: 1500mm

Y axis: 3000mm

Cutting thickness: 6-150mm

Advantage Support drawing and nesting in AUTOCAD environment Option It can be equipped with Plasma, two founctions





CNC flame cutting machine can cut large thickness mild steel , cutting expenses is very low. It can cut any shape, supply inteGNPS software for Numerical control cutting machine programming.So, it is very suitable to cut light pole base plate.



Its software has following features:

  1. Simple in use, easiness to lean, integrate with AutoCAD. Multi-language support, now support English version.
  2. Special Auto correct machine cumulative, ensure complex nesting programming accurately.
  3. Special combine beeline which quoin less than 0.1mm
  4. Special luminal sheet anti-distortion can get good quality cutting
  5. Special nearby cut points auto-combined, reduce make hole times and enhance sheet usage.
  6. Special intelligent lead-in and lead-out, small circle automatic lead in/out from center
  7. Special support optimize small arc to lines, prevent control card process arc occur problems.
  8. Software compensation supported
  9. Special support cut-in place cut-over technical, can sweep the cut-in place salient, especially useful for plasma cutting.
  10. Unenclosed contour cutting supported




Mode 1500*3000
Input voltage, Power Frequency 220V, 50Hz
Rated power 180w
CNC system Adtech
LCD size 5.7 inch
Effective cutting range X axes:1500mm; Y axes: 3000mm
Flame cutting thickness 6-150mm
Cutting accuracy ±0.5
Cutting type Flame
Nesting soft InteGNPS (it is compatible with AUTO CAD)
Packing Way Wooden Packing
