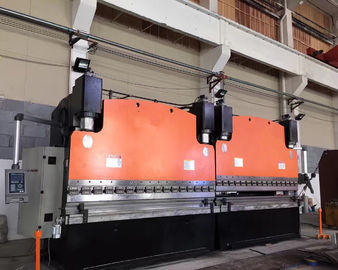

7.5kw 2500mm Multi-Axis CNC Hydraulic Press Brake 100t For Steel Tower / Truck Carriage

Quick Detail:

Application:

CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial....

Description:

1) With stylish design, high rigidity, high speed

2) Electro-hydraulic servo system, closed loop control system controls accuracy

3) Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece

4)Back gauge is driven by servo motor, adopted ball-screw and linear guide way, it could make sure positioning accuracy

Specifications

Communication with customers

A: what is difference during DA-52, DA-56, DA-65W and DA66T?

About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:

DA-52 control system:

1. With LCD true-color display
2. Max control 4 axis(Y1,Y2 and two auxiliary axis)
3. worktable crowning compensation control
4. tooling, material and product library
5. USB interface
6. Advanced Y axle control algorithm, it can control closed loop, also open loop

DA-56 control system:

1. With LCD true-color display
2. 2D programming
3. Bending process
4. Developed length calculation
5. worktable deflection compensation control
6. tooling, material and product library
7. USB interface
8. Servo control, frequency control and AC motor control

DA65W controller system:

1. Modular structure, max 20 axis
2. Built-in PLC reduces machine circuit design, let the machine more stable
3. Processing automatic calculation and optimization
4. self diagnosis function supply diagnosis for the whole system and components function
5. multi-language selection
6. 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
7. 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
8. It can works 2500 program, 90 tooling.
9. Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.

DA66T controller system:

1. Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
2. Standard Ethernet interface, connect windows
3. real-time windows system, multi-task treatment and file management
4. USB interface, connect external device: mouse and fingerboard
5. Colorful display: 12 inch
6. TFT 2D graphics mode programming
7. Automatic bending processing
8. PLC function
9. operation warning system

A: If it is difficult to operate controller system?

B: First, these systems are not difficult, easy in fact. If the workers in the factory have experience of operation NC machines, then our system is easy for them to study, when we send machines, we will give controller system manual. If the factory feels it is hard, then they can send one engineer to our side, we will give him some training in our factory.

A: Please indicate press brake warranty terms

Warranty:

Warranty time : one year from finishing commissioning date.

Deatail Warranty :

1. Long distance Technical supporting, free forever.

Any questions, problem on machine, on process help. We can give solution and information to customer by email, skype, video , phone .

2. In the warranty time, If due to machine quality reason , some parts broken , we will supply the parts , parts is free for customer , shipping cost is free for customer.

3. After the warranty time, If needs some machine parts, we also supply the parts with basic cost only.

4. If need our engineer to come, we will arrange, but customer will pay for Visa, air ticket, hotel, food cost, and salary.
