Conventional self aligning welding rotator , Automatic Welding Machine for pipe

Conventional self aligning welding rotator , Automatic Welding Machine for pipe

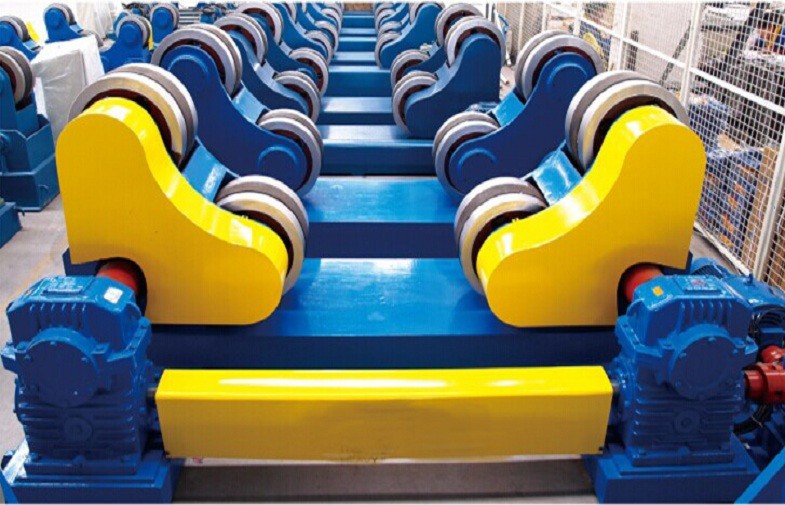

    • Conventional self aligning welding rotator ,  Automatic Welding Machine for pipe

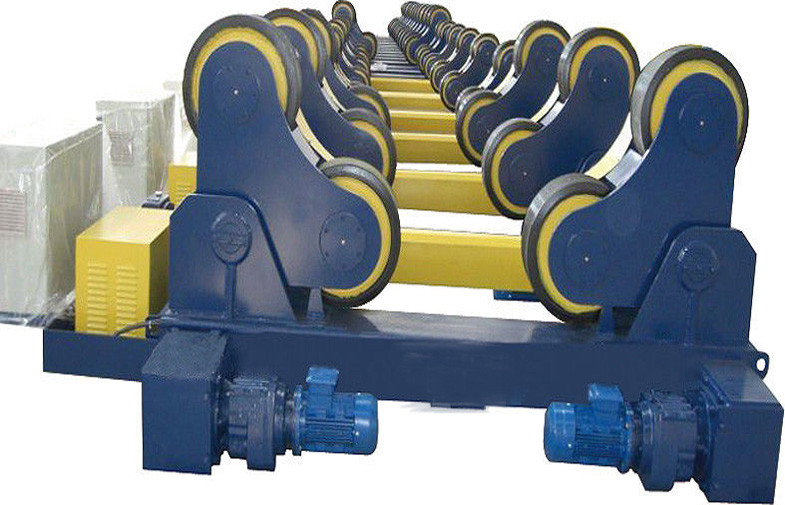

    • Conventional self aligning welding rotator ,  Automatic Welding Machine for pipe

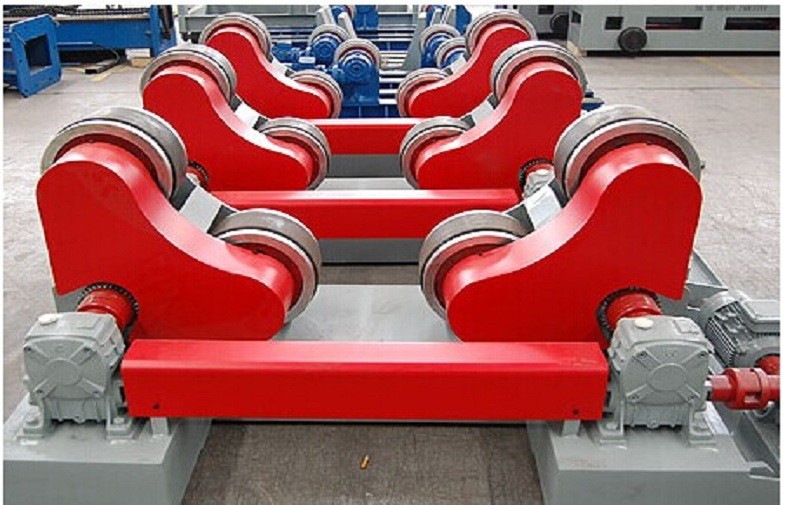

    • Conventional self aligning welding rotator ,  Automatic Welding Machine for pipe
  • Conventional self aligning welding rotator ,  Automatic Welding Machine for pipe

    Product Details:

    Place of Origin: wuxi, china
    Brand Name: CMC
    Certification: ISO,CE
    Model Number: HGZ Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: according to the machine requirement
    Packaging Details: Suitable for container shipping
    Delivery Time: according to the machine requirment
    Payment Terms: Down payment 30% T/T, 70% T/T before shipping
    Supply Ability: According requirement
    Contact Now
    Detailed Product Description
    High Light:

    welding rotator

    Quick Detail:



    Name Products nickname Brand Name Certificate
    Welding roller Welding rotation CMC CE,ISO





    Description:

    Mostof this series rollers are made according to customer’s requirements.
    In our light pole production line, it is used to support big diameter light pole or high mast.


    Conventional self aligning welding rotator ,  Automatic Welding Machine for pipe 0




    Applications:

    Wide wheels rollers, to enhance the friction force between the wheels and tank, conventional + self aligned roller, to suit large diameter range of the tank, motorized lead screw rollers, to reduce labor force when changing the wheel distance of heavy capacity of rollers, Pu wheels, for stainless steel tank turning, full steel wheels, for heavy weight tank turning.




    Features:



    1, The swing angle of roller group can be automatically regulated according to the work piece diameter and size and manual calibration is not needed.
    2, Steel glue assembly roller, long ton adopts full steel rolling, which has big loading capacity and driven capacity.
    3,  Inported frequency conversion speed regulator, which featres in wide regulation width, big starting power and high adjustable precision.
    4, Manual control box operation, which can be remote controlled and it is simple and reliable.





    Technical parameter:



    Model Max.Loading Weight (T) Applicable Cylindrical Diameter(mm) Roller Dimeter and Width (mm) Roller Linear Velocity (m/h) Power of Motor (KW) Speed Regulation Mode
    Rubber Rollers Metal Rollers
    HGZ5 5 Φ250-2300 Φ250×100 2×Φ240×20 6-60 0.75 Electromagnetic Stepless Speed Regulations or Frequency Conversion Stepless Speed Regulation
    HGZ10 10 Φ320-2800 Φ300×120 2×Φ290×25 6-60 1.1
    HGZ20 20 Φ500-3500 Φ350×120 2×Φ340×30 6-60 1.5
    HGZ40 40 Φ600-4200 Φ400×120 2×Φ390×40 6-60 3
    HGZ60 60 Φ750-4800 Φ450×120 2×Φ440×50 6-60 4
    HGZ80 80 Φ850-5000 Φ500×120 2×Φ490×60 6-60 5.5
    HGZ100 100 Φ1000-5500 Φ500×120 2×Φ490×70 6-60 7.5
    HGZ150 150 Φ1100-6000 Fbrication According to Demands 6-60 7.5
    HGZ300 300 Φ1200-7000 6-60 2×5.5
