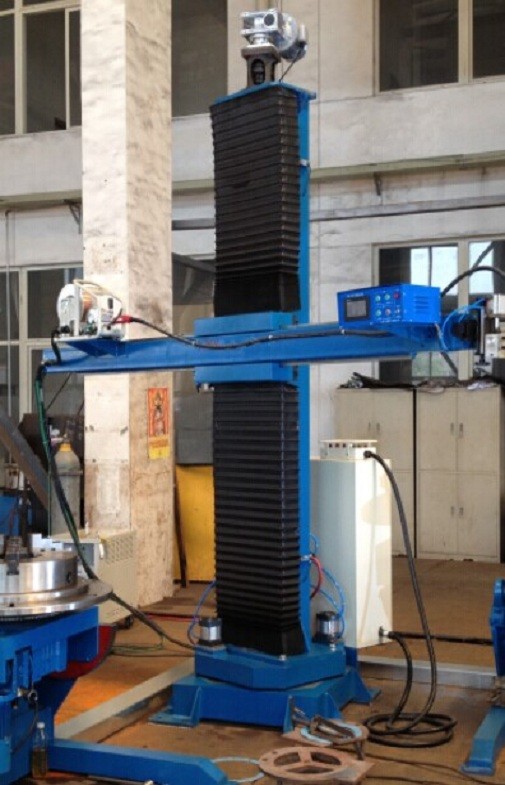

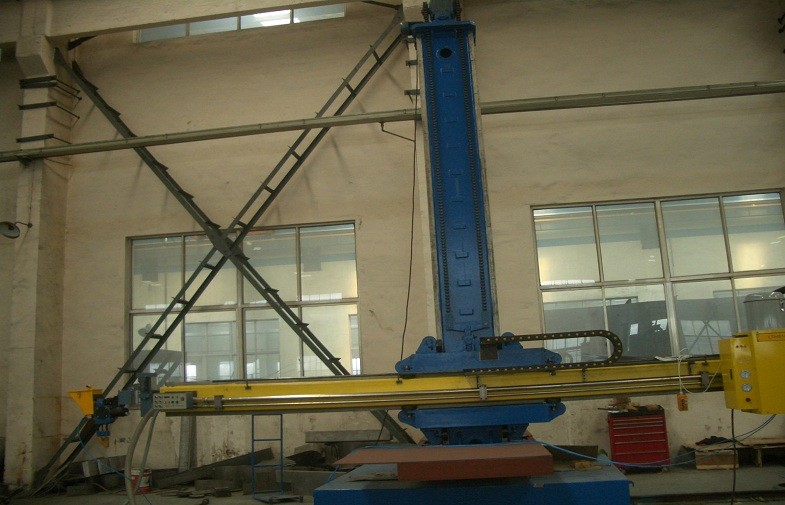

Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe

Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe
Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe

Large Image :  Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe

Product Details:
Place of Origin: wuxi, china
Brand Name: cmc
Certification: ISO
Model Number: HC-4040
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

Automatic Welding Machine , welding manipulation / column and boom For Large Water Pipe

Description
High Light:

automatic welding equipment

 Quick Detail



Name



Products nickname



Brand Name



Certificate



Welding Operation Machine Welding Columm & Boom CMC CE,ISO





Technical Parameters:



Specification HC4040
Structure mode Stable type, without rotation
Vertical lifting stroke 4000 mm
Crossbeam’s lifting speed 1500mm/min
Horizontal expansion or contraction stroke 4000 mm
Crossbeam’s feeding speed 0.12-1.2 m/min
Applicable diameter of cylindrical body 700-4000 Φ amm
Column rotating speed 0.22rpm/min
Welding direction The direction of crossbeam's feeding
Ambient temperature -5~50℃
Relative humidity <95%, no condensation
Surrounding environment Ventilation, no greater impact
Power 380V±10%, 50Hz





Main Configuration:



Name Description Remark
Crossbeam 1 piece
Column 1 piece
Guide device 1 set
Adjusting method of crossbeam’s feeding Frequency conversion
Transmission method of crossbeam’s feeding Gear and rack

Transmission method of crossbeam's lifting with

uniform speed

Chain wheel and chain
Model of motor reducer for crossbeam's lifting 100-155 2.2KW i=900 Wuxi TianYi
Model of motor for crossbeam's feeding CV40-0.75-200 -380V Taiwan
Lifting transmission chain 20A
Cross fine-tuning by manual 1 set
Flux recovery device 1 set
