Automatic Welding Machine with 4000 mm Vertical Lifting Stroke and 700-4000 Φ mm Applicable Diameter for Large Water Pipe Welding

1 set
MOQ
according to the machine requirement
Price
Automatic Welding Machine with 4000 mm Vertical Lifting Stroke and 700-4000 Φ mm Applicable Diameter for Large Water Pipe Welding
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

automatic welding equipment
Basic Infomation
Place of Origin: Wuxi, China
Brand Name: cmc
Certification: ISO
Model Number: HC4040
Payment & Shipping Terms
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T,70% T/T before shipping
Supply Ability: According requirement
Product Description

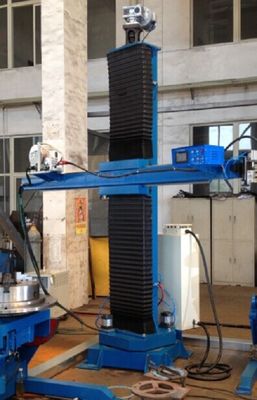

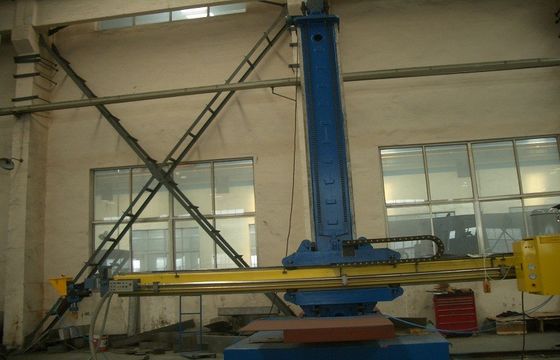

Automatic Welding Machine for Large Water Pipe Applications
Product Overview
Product Name Welding Operation Machine
Product Nickname Welding Column & Boom
Brand Name CMC
Certifications CE, ISO
Technical Specifications
Specification HC4040 Model
Structure Mode Stable type, without rotation
Vertical Lifting Stroke 4000 mm
Crossbeam Lifting Speed 1500 mm/min
Horizontal Expansion Stroke 4000 mm
Crossbeam Feeding Speed 0.12-1.2 m/min
Applicable Cylindrical Body Diameter 700-4000 Φ mm
Column Rotating Speed 0.22 rpm/min
Welding Direction Crossbeam feeding direction
Ambient Temperature -5°C to 50°C
Relative Humidity <95%, no condensation
Surrounding Environment Ventilation, no greater impact
Power Requirements 380V±10%, 50Hz
Main Configuration
Component Description Remarks
Crossbeam 1 piece
Column 1 piece
Guide Device 1 set
Crossbeam Feeding Adjustment Frequency conversion
Crossbeam Feeding Transmission Gear and rack
Crossbeam Lifting Transmission Chain wheel and chain
Motor Reducer for Crossbeam Lifting 100-155 2.2KW i=900 Wuxi TianYi
Motor for Crossbeam Feeding CV40-0.75-200 -380V Taiwan
Lifting Transmission Chain 20A
Cross Fine-tuning (Manual) 1 set
Flux Recovery Device 1 set
