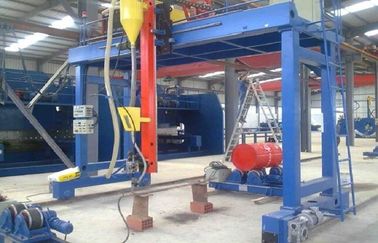

Automatic Gantry Welding Machine For High Mast seam weld And Huge Pipe / tube 300 - 2000mm

Brand Name:	CMC
Model Number:	SHL-4000
MOQ:	1 set
Price:	negotiated
Payment Terms:	Down payment 30% T/T, 70% T/T before shipment
Supply Ability:	According to requirement

Detail Information

Product Description

Detail Information

Place of Origin:

Wuxi, Jiangsu, China

Certification:

ISO

Packaging Details:

Suitable for container shipping, both marine and inland transportation

Supply Ability:

According to requirement

Highlight:

automatic welding equipment

Product Description

Quick Detail:

Name

Other Name

Brand Name

CMC

Gantry Type Welding Machine

High mast welding machine

High mast seam weld

High mast seam welding machine

Big/large pole welding

Big/large pipe/tube welding

Feature

It can weld big diameter pole/tube/pipe seam automatically.

Welding capacity

Diameter range 300-2000mm

12000mm in length

Welding wire

3.2-5mm wire

Application:

It is for final welding process for high mast longitudinal weld-seam

Description:

Component configuration supplied by seller

travel driving motor :YDS100-4 low speed motor 1 set
welding lifting choose SCWS-08-1.1W deceleration machine 1 set
flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m

D,submerged arc welding machine 1 set

E,power cord 3×16m㎡,60m

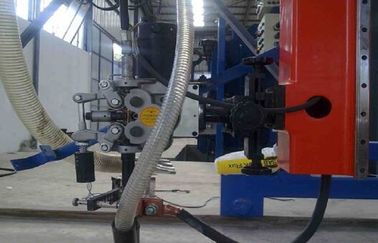

F,arc guidance 1 sets(including welding gun)

G,cable movement pulley

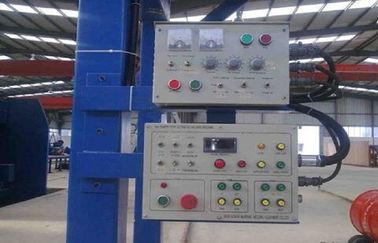

H,electrical apparatus box 1 set control box 1 set

technical documents

Whole machine foundation drawing
machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)

parts supplied by buyer

A, 24Kg track 40m

B, Make base according to supplied information

C, Gliding wire frame

D, Welding V frame or roller frame

E, Lubrication for deceleration machine (machine oil 20#)

High mast welding process: We have two welding ways

1) High efficiency way, use high mast assembly and straightening machine to close the high mast pole

Automatic Gantry Welding Machine For High Mast seam weld And Huge Pipe / tube 300 - 2000mm 0

Automatic Gantry Welding Machine For High Mast seam weld And Huge Pipe / tube 300 - 2000mm 1

2) Economical way

Automatic Gantry Welding Machine For High Mast seam weld And Huge Pipe / tube 300 - 2000mm 2

Automatic Gantry Welding Machine For High Mast seam weld And Huge Pipe / tube 300 - 2000mm 3
