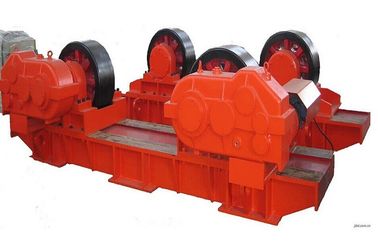

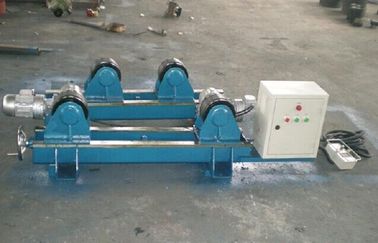

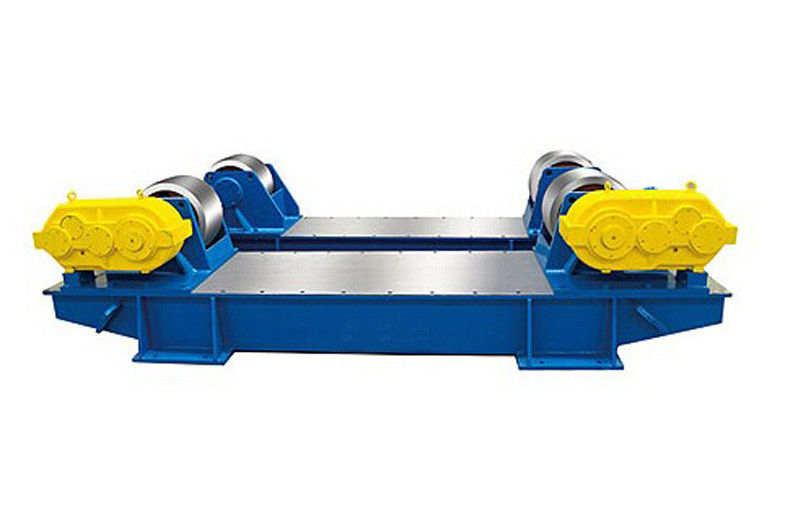

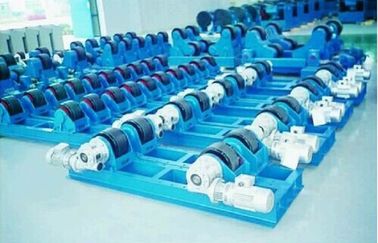

High speed Automatic Welding Machine Turning Roller / Tank roller

High speed Automatic Welding Machine Turning Roller / Tank roller
High speed Automatic Welding Machine Turning Roller / Tank roller High speed Automatic Welding Machine Turning Roller / Tank roller High speed Automatic Welding Machine Turning Roller / Tank roller High speed Automatic Welding Machine Turning Roller / Tank roller High speed Automatic Welding Machine Turning Roller / Tank roller

Large Image :  High speed Automatic Welding Machine Turning Roller / Tank roller

Product Details:
Place of Origin: wuxi, china
Brand Name: CMC
Certification: ISO,CE
Model Number: HGK series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

High speed Automatic Welding Machine Turning Roller / Tank roller

Description
Highlight:

welding rotator


Welding Rollers

Quick Detail:



Name Products nickname Brand Name Certificate
Welding roller Welding rotation CMC CE,ISO





Performance and Structural Features


1.Use screw for regulation, large ton adopts prepared screw to adjust central distance of roller, so as to adjust to the chuange of diameter of work piece.
2. Steel glue assembly roller, long ton adopts full steel roller, which features in large loading capacity and driven capacity.
3. Excellent speed reducing driven organ.
4. Frequency conversion stepless speed regulation, which is simple and reliable.
5. Manual control box operation, which can be remote controlled.





Technical parameters



Model Max.Loading Wight Applicable Cylindrical Diameter Roller Diameter and Width Roller Linear Velocity(m/h) Power of Moter(kw) Distance Adjustable Type Speed Regulation Mode
Rubber Rollers Meta; Rollers
HGK15 5 Φ250-2300 Φ250×100 2×Φ240×20 6-60 2×0.37 Manual Screw Adjustable, Screw Stepping Adjustable Frequency Conversion Stepless Speed Regulation
HGK10 10 Φ320-2800 Φ300×120 2×Φ290×25 6-60 2×0.55
HGK20 20 Φ500-3500 Φ350×120 2×Φ340×35 6-60 2×1.1
HGK40 40 Φ600-4200 Φ400×120 2×Φ390×45 6-60 2×1.5
HGK60 60 Φ750-4800 Φ450×120 2×Φ440×60 6-60 2×2.2
HGK80 80 Φ850-5000 Φ500×120 2×Φ490×70 6-60 2×3
HGK100 100 Φ1000-5500 Φ500×120 2×Φ490×100 6-60 2×4 Screw Stepping Adjustable
HGK150 150 Φ1100-6000   Φ620×220 6-60 2×4
HGK250 250 Φ1100-7500   Φ660×260 6-60 2×5.5
HGK400 400 Φ1100-7500   Φ750×320 6-60 2×7.5
HGK500 500 Φ1100-7500   Φ750×400 6-60 2×11
