High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency

Brand Name:	CMC
Model Number:	SHL-4000
MOQ:	1 set
Price:	according to the machine requirement
Payment Terms:	30% T/T Down payment, 70% T/T before shipping, L/C
Supply Ability:	According to specific requirement

Detail Information

Product Description

Detail Information

Place of Origin:

Wuxi, Jiangsu, China

Certification:

ISO

Packaging Details:

Suitable for container shipping, both marine and inland transportation

Supply Ability:

According to specific requirement

Highlight:

light pole production line

Product Description

High Mast Gantry Welding Machine For Large Pipe / Tube , High Efficiency

Quick Detail:

Name

Other Name

Brand Name

CMC

High mast welding machine-light pole machine to weld high mast

High mast welding machine

High mast seam weld

High mast seam welding machine

Gantry type welding machine

Big/large pole welding

Big/large pipe/tube welding

Feature

It can weld big diameter pole/tube/pipe seam automatically.

Welding capacity

Diameter range 300-2000mm

12000mm in length

Welding wire

3.2-5mm wire

Application:

It is for final welding process for high mast longitudinal weld-seam

Description:

Component configuration supplied by seller

travel driving motor :YDS100-4 low speed motor 1 set
welding lifting choose SCWS-08-1.1W deceleration machine 1 set
flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m

D,submerged arc welding machine 1 set

E,power cord 3×16m㎡,60m

F,arc guidance 1 sets(including welding gun)

G,cable movement pulley

H,electrical apparatus box 1 set control box 1 set

technical documents

Whole machine foundation drawing
machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)

parts supplied by buyer

A,24Kg track 40m

B,Make base according to supplied information

C,Gliding wire frame

D,welding V frame or roller frame

E,lubrication for deceleration machine (machine oil 20#)

High mast welding process:

We have two ways

1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole

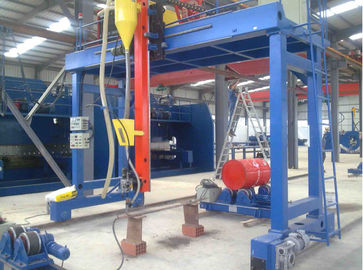

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 0

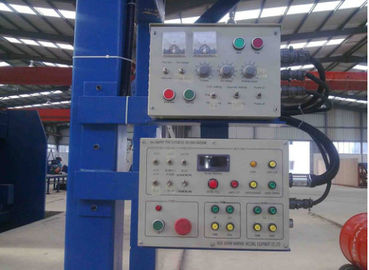

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 1

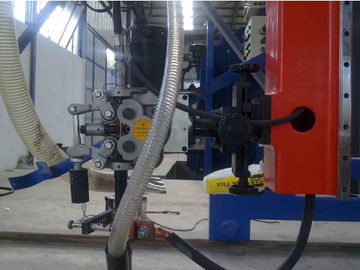

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 2

2)Economical way

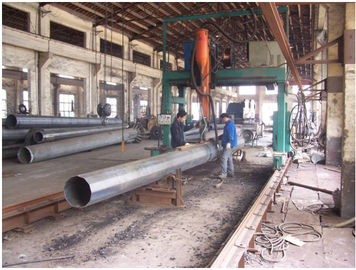

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 3

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 4
