Brand Name:	CMC
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	According to specific requirement

编号NO.	项目Item	参数Parameter
1	灯杆最大直径Pole max diameter	300mm
2	最大长度Pole max.length	12m
3	最小厚度Pole min. thickness	2.5mm
4	最大厚度 Pole max. thickness For welding	For welding: 12mm
5	胀管可以变形的最大厚度 The maximum thickness of the expanded tube that can be deformed	6mm
6	适合的单根杆子最大重量 Pole max weight	标准standard: 300kg
7	底板三角加强筋的数量 Max quantity of base plate stiffener	4~8 说明:如果数量多,加强筋间距小而影响焊枪进入, 可以焊接一半的加强筋. Note: If the quantity is large and the spacing of the stiffeners is small and the welding torch is affected, half of the stiffeners can be welded.
8	底板三角加强筋尺寸 Size of base plate stiffener	一般的普通路灯杆,智慧杆均适合 (不同尺寸的加强筋需要不同的模具,可以按照随机提供的模具, 后续用户自己加工制作) Suitable for normal street light poles and high mast. (Different stiffener size require different molds, processed and manufactured by the user in accordance with the mold provided in the machine)
9	焊接速度 Welding speed	参考速度 300~500mm/分钟不同厚度不同焊接速度 300~500mm/min for reference Different thickness requires different welding speed.
10	底板形状 Base plate shape	圆形,正方形,八边形,四边的倍数边型 Circle, square, octagonal, multiple times of four sides
11	底板最小厚度 Min thickness of base plate	Recommended value:10mm (太薄内外焊接有难度,容易烧穿, If too thin, it's difficult to weld inside and outside, cause to burn through risk)
12	底板最大厚度 Max thickness of base plate	一般杆子都适合 Suitable for normal poles
13	底板最小尺寸 Min size of base plate	150mm×150mm
14	底板最大尺寸 Max size of base plate	580mm 直径,或者对边尺寸580x580 Diameter: 580mm, or square plate 580x580.
15	对加强筋和底板尺寸一致性的要求 Requirements for the consistency of stiffener size and base plate	尺寸公差在1mm以内建议用激光切割或者等离子切割,以确保尺寸的一致性,来获得比较好的机器人焊接效果 Dimension tolerance is within 1mm It is recommended to use laser cutting or plasma cutting to ensure the size consistency for better robot welding effect.
16	适合杆型 Suitable for pole type	圆锥杆,圆杆,八角杆,八角以上多棱形,等径杆都适合 Conical poles, round poles, octagonal poles, polygonal shapes above octagonal, and equal diameter poles are all suitable

CNC Hydraulic Press Brake

Press Brake Machine

CNC Tandem Press Brake

Light Pole Machine

Light Pole Shut-Welding Machine

Light Pole Door Cutting Machine

Highmast And Monopole Seam Welding Machine

Cut To Length Machine

Taper Cutting Machine

Guardrail Roll Forming Machine

Hydraulic Shearing Machine

Press Brake Tooling

Shearing Machine Blade

Shot Blasting Machine

Laser Cutting Machine

CNC Plasma Cutting Machine

Automatic Welding Machine

Pole Straightening Machine

Steel Coil Slitting Line

Robotic Welding Machine

Hot Dip Galvanizing Equipment

CNC Hydraulic Press Brake

Press Brake Machine

CNC Tandem Press Brake

Light Pole Machine

Light Pole Shut-Welding Machine

Light Pole Door Cutting Machine

Highmast And Monopole Seam Welding Machine

Cut To Length Machine

Taper Cutting Machine

Guardrail Roll Forming Machine

Hydraulic Shearing Machine

Press Brake Tooling

Shearing Machine Blade

Shot Blasting Machine

Laser Cutting Machine

CNC Plasma Cutting Machine

Automatic Welding Machine

Pole Straightening Machine

Steel Coil Slitting Line

Robotic Welding Machine

Hot Dip Galvanizing Equipment

products details

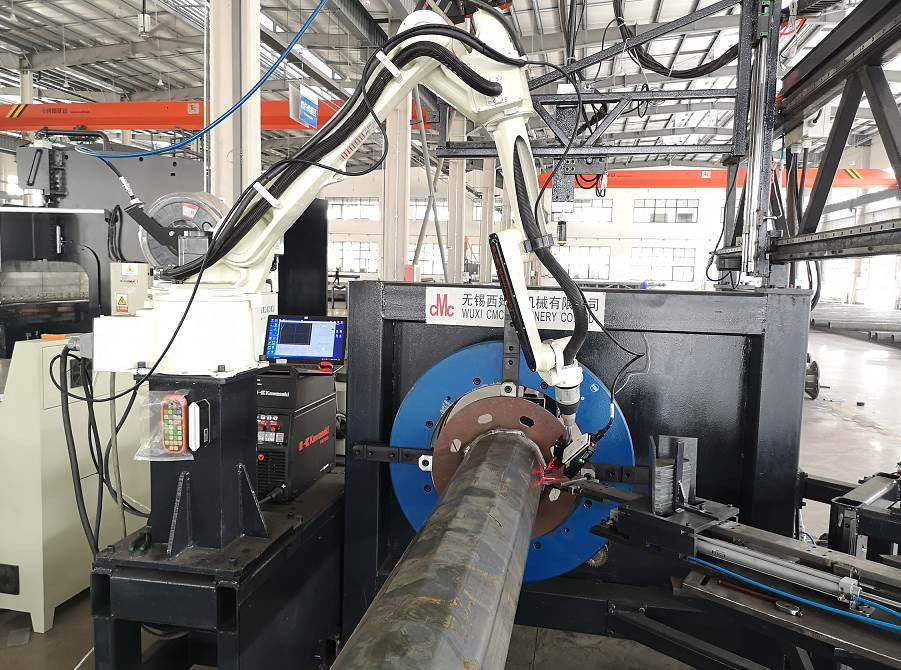

Robot Base Plate Welding Machine For Light Pole Model RW-120/300
