Lamp Post Taper Cutting Machine 6mm Cnc Plate Cutting Machine
|Place of Origin:||wuxi,China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||Metal pallet|
|Delivery Time:||80-90 days|
|Payment Terms:||Ex works/ FOB SHANGHAI/ CIF|
automatic cutting machine,
cut to length line
Lamp Post Equipment: Taper Cutting Machine To Get One Side Bigger One Side Smaller Plate
|Name||Other name||Brand Name||CMC|
|Taper Cutting Machine||
Ladder shaped plate cutting machine,
Lamp Post cutting machine,
|Feature||Our line can cut the scrap edge of the steel sheet, cut one piece into 3 piece, and get one small size and one big size width|
2-6mm in thickness
12000mm in length
800-1600mm in width
|Usage Industrial||Street light pole industrial|

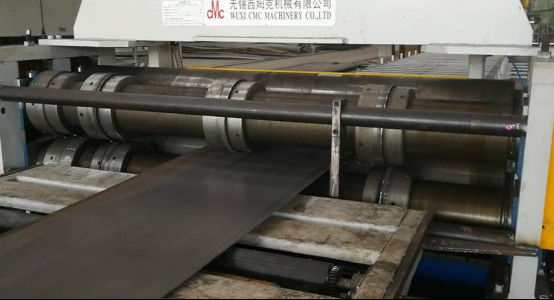

The lamp post plate slitting machine is base on the rolling shearing principle.
There are two precess step on the machine:
First step is to cut the scrap edge of the hot rolled steel to get the exact width and good edge which is good for lamp post seam welding process.
There is a dolly in the front of the slitting unit. It is for control the straight cutting.
Second step is to cutting the lamp post taper steel and get one side big one side small width steel plate.

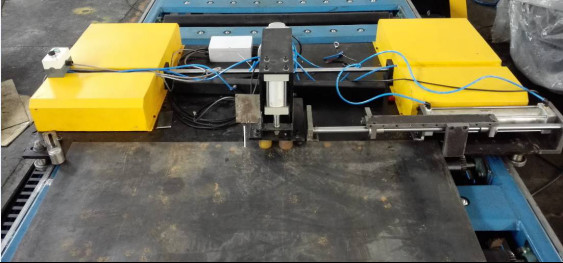

There is a dolly in the cof the slitting unit. It is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree.

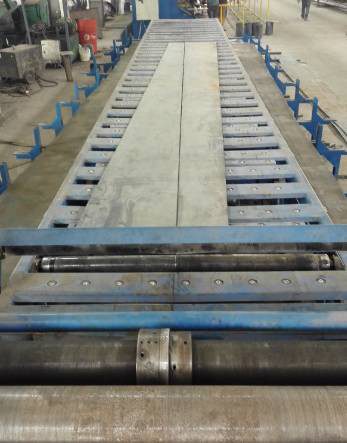

It is for lamp post material to cut the scrap edge of the sheet two sides, and slitting the sheet into 3 pieces or 2 pieces to get one side small and one side big width.
|Max. Cutting Thickness||Mm||2.5~6|
|Max. inner Width of double slitting unit||Mm||1600|
|Max. inner Width of taper slitting unit||Mm||1800|
|Max. Cutting Length||Mm||
12000 or 14000
|Power of the motor||Kw||5.5+5.5|
40x3m( for 12m light pole),
or 46x3m( for 14m light pole)
