Product Details:
|
Highlight: | automatic cutting machine,plate cutting machine |
---|

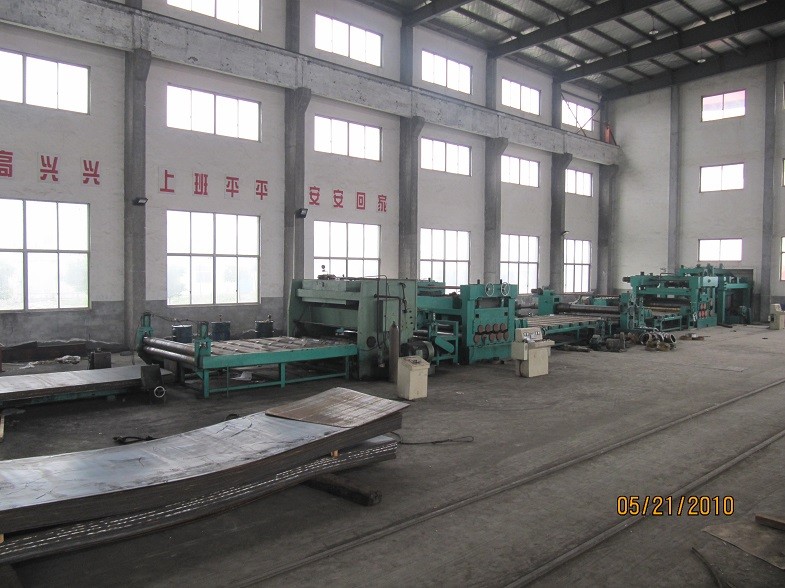

Economical Cut To Length Line - Light Pole Machine For 6m 8m 10m 12m 14m Light Pole Without Shear And Guide Units.
Quick Detail:
Name | product other name | Brand Name | CMC |
Cut to length line for light pole |
Decoiler, Steel coil cutting machine, Slitting, Cutting machine for light pole; taper machine |
Feature | Our line is different with the traditional cut to length, you can get ladder-shaped sheet with one side small and one side bigger width |
Cutting capacity |
2-6mm in thickness 12000mm in length 800-1600mm in width |
Usage Industrial | Street light pole industrial |
Description:
Technical Parameter
1. Thickness of material: 2mm-6.0mm for Q235A hot rolled mild steel
2. Width of material: 800-1600mm
3. Weight of steel coil: Max 15 tons
4. Inner diameter of steel c oil: Φ500mm-Φ750mm
5. Leveling speed: 5- 15m/min
6. Number of leveling rollers: 13
7. Leveling rollers diameter : 130mm
8. Length range for scale: 2000~12000mm according requirments.
10. Tolerance of cutting length :±15mm (base on 8m length plate)
11. Main leveling motor power: 37kw (total about 57KW)
12. width area for machine:about 7000mm
Application:
It is for light pole material uncoiling, leveling, cutting, scrape edge slitting and taper slitting process, to get one side small width, one side big width steel plate.
Specifications
1. Steel coil loading dolly car:
UP and down: Hydraulic
Horizontal moving: motorized
Max.loading weight: 15Tons
2. Hydraulic double-head umbrella type decoiler:
Including:Motorized pay off, Motor, reducer,
The chain system takes the shift to rotate. The rotation direction can be clockwise and unclockwise.
Open and close: Hydraulic
Max.loading weight: 15Tons
3. Leveling unit:(two lay type),
Two layer rollers leveler,
13 rollers,including 2 feeding rollers,11 leveling rollers
Leveling roller material:42Cr. dia:130mm,IF quenched
Two layers Leveling rollers, motor drive worm screw to adjust up layer move up and down. .
Transmission system includes speed adjustable motor, reducer and so on.
Feeding rollers up/down movement is with hydraulic.
Unit is with guiding systeml
length measuring
Length counting encoder is installed on the roller
4, Cutting(Manual plasma cutter prepared by customer)
5. Double edge slitting unit.
It is for slitting scrape edge of the hot rolled steel plate to get the exact width for light pole.
It is base on the rolling shearing principle to cut the steel sheet. There is a dolly in the front of the slitting unit. It is for control the straight cutting. By change the position of the slitting blade to get different width fr different size light pole sheet.
Including :
Supporting table with the rail
Clamping sheet dolly, one piece
Double blades type edge slitting unit with motor and gear box.

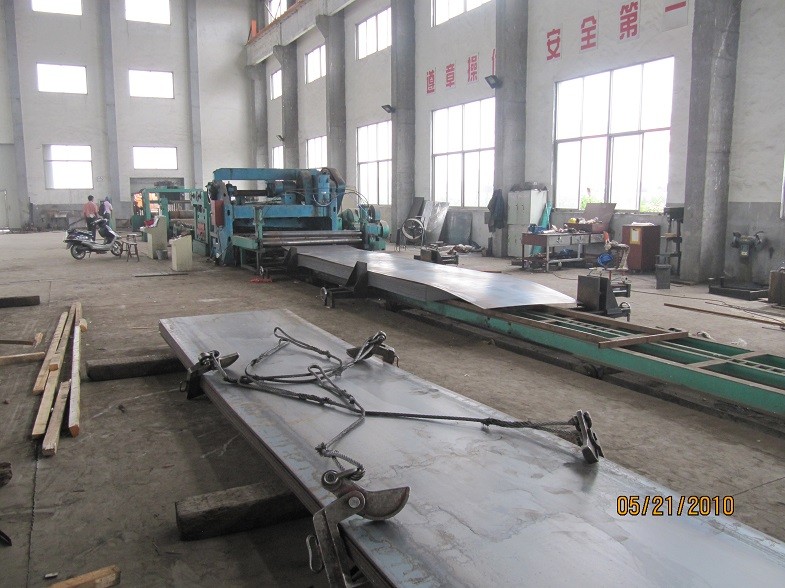

6. Taper slitting unit
The taper slitting machine is base on the rolling shearing principle to cut the steel sheet. There is a dolly in the front of the slitting unit. It is for control the taper cutting degree. By change the position of the stopper on dolly to control the taper slitting rate.
Including :
Supporting table with the rail
Clamping sheet dolly, one piece
Single blades type edge slitting unit with motor and gear box.
7. Ball type support table for finished taper sheet
8. Electrical system:
Central control table.
PLC, AC driver inverter have the feature of quick response and good activity,which can effectively control the measuring accuracy and running speed.
9. Hydraulic system:
Hydraulic power 25L/min
Including:hydraulic station, valves, oil tank, joint, soft pipe, hard pipe and so on.
What is the difference with our standard cut to length and economical one?
Compared with standard cut to length, the economical type does not have 1) hydraulic guiding-pressing, shovel-head, pinch and feeding device
The user must use crane to lift and guild the sheet head to the leveling unit
2) hydraulic swing beam shearing machine: QC12Y-6X2000
The user must use manual plasma cutter machine to cut the sheet.
Communication with customers
A: How to cut sheet with one side small width and one side big width sheet by this machine?
B: First, there is a double edge slitting unit, it is for slitting scrape edge of the hot rolled steel plate to get the exact width for light pole, and then we can use our taper slitting unit to cut the steel sheet into 2 pieces with one side small and one side bigger sheet. There is a dolly in the front of the slitting unit. It is for control the taper cutting degree. By change the position of the stopper on dolly to control the taper slitting rate.
A: How many models do we have for cut to length?
B: We have three kinds, 6X1600-12meters(the max cutting length is 12meters), 6X1600-14 meters(max 14 meters) and 6X1600-16 meters(max 16 meters)
A: How long is your quality guarantee period
One year. And when the machine arrives at customer workshop, we will send engineer to commissioning machine and give training. But also, the client can let their engineer to our workshop to study before delivery.
3.product basic information
Place of Origin: | China |
Brand Name: | CMC |
Model Number: | EC6X1600 |
4.trade clause
Minimum Order Quantity: | 1 set |
Price: | negotiation |
Packaging Details: | Metal pallet |
Delivery Time: | 80-90 days |
Payment Terms: | Ex works/ FOB SHANGHAI/ CIF |
After-sales service | We will send engineer to customer workshop to installation, commissioning and give the training |
