Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces

Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces
Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces

Large Image :  Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Model Number: 6X1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: 80-90 days
Payment Terms: Ex works/ FOB SHANGHAI/ CIF
After-sales service: We will send engineer to customer workshop to installation, commissioning and give the training

Bevel cutting Machine For lighting pole production slitting sheet into 3 pieces or 2 pieces

Description
High Light:

automatic cutting machine

,

plate cutting machine



ET 6X1600 slitting machine for light pole machine to get one side bigger one side smaller plate







Quick Detail:



Name Other name Brand Name CMC
Steel plate slitting machine for light pole

Ladder shaped plate cutting machine,

Light pole cutting machine,

Slitting machine

Feature Our line can cut the scrap edge of the steel sheet, cut one piece into 3 piece, and get one small size and one big size width
Cutting capacity

2-6mm in thickness

12000mm in length

800-1600mm in width

Usage Industrial Street light pole industrial









Description:

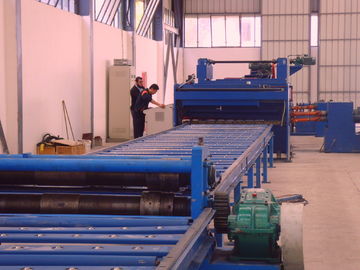

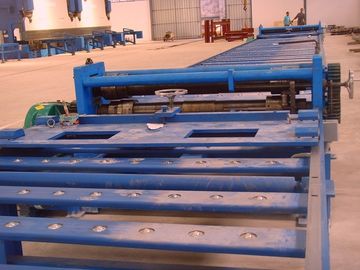

The light pole plate slitting machine is base on the rolling shearing principle.

There are two precess step on the machine:

First step is to cut the scrap edge of the hot rolled steel to get the exact width and good edge which is good for light pole seam welding process.

There is a dolly in the front of the slitting unit. It is for control the straight cutting.

Second step is to cutting the light pole taper steel and get one side big one side small width steel plate.

There is a dolly in the cof the slitting unit. It is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree.







Application:



It is for light pole material to cut the scrap edge of the sheet two sides, and slitting the sheet into 3 pieces or 2 pieces to get one side small and one side big width.









Specifications



TECHNICAL FEATURES
Name Unit Value
Max. Cutting Thickness Mm 2.5~6
Max.plate width Mm 1600
Max. inner Width of double slitting unit Mm 1600
Max. inner Width of taper slitting unit Mm 1800
Max. Cutting Length Mm

12000 or 14000

(according requirments)

Slitting speed m/min. 12
Power of the motor Kw 5.5+5.5
Overall size

40x3m( for 12m light pole),

or 46x3m( for 14m light pole)















































What is the difference with our cut to length and steel plate slitting machine?



The cut to length is suitable for the material: steel coil, while the steel plate slitting machine is for the metal sheet. Therefore, if the customers have many orders, then we suggest customer to buy steel coil, if less quantity and small budget, then clients can buy metal sheet from market directly.







Communication with customers



A: How to guarantee the cutting rate?

B: In fact, the work can measure the size and make mark on the sheet, then the position of the stopper on dolly to control the taper slitting rage.



A: How about speed of this machine?

B: It can reach 12m / min. It means we can get two poles material in one min.



A: How long is your quality guarantee period

One year. And when the machine arrives at customer workshop, we will send engineer to commissioning machine and give training. But also, the client can let their engineer to our workshop to study before delivery.
