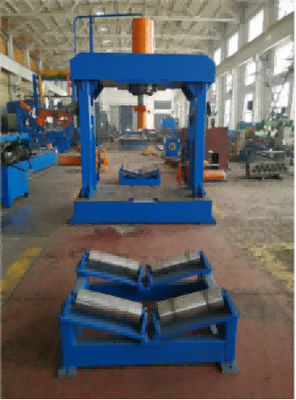

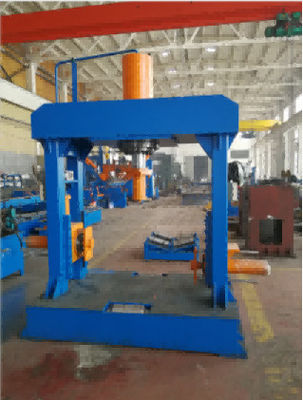

1000mm Big light pole close and straightening machine for transmission tower

1000mm Big light pole close and straightening machine for transmission tower
1000mm Big light pole close and straightening machine for transmission tower 1000mm Big light pole close and straightening machine for transmission tower 1000mm Big light pole close and straightening machine for transmission tower 1000mm Big light pole close and straightening machine for transmission tower 1000mm Big light pole close and straightening machine for transmission tower

Large Image :  1000mm Big light pole close and straightening machine for transmission tower

Product Details:
Place of Origin: wuxi -china
Brand Name: cmc
Model Number: HJZ-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

1000mm Big light pole close and straightening machine for transmission tower

Description
High Light:

light pole production line



High Mast Assembly And Straightening - Light Pole Machine Specially Design For High Mast







Quick Detail:



Name Other names Brand Name CMC
High Mast Assembly and straightening machine

High mast close and straightening machine,

High mast close seam,

Big pole close and straightening,

Big light pole close and straightening,

Feature Close and straightening two functions for high mast
Cutting capacity Max diameter: 1000mm Usage Industrial High mast, transmission tower









Application:



This machine is suitable for following process of high mast making









Characteristics:

  1. The Three hydraulic cylinder clamping two pieces parts of high mast and do spot welding process.
  2. Press the high mast to making the bottom area round shape, in order to assemble the bottom flange
  3. Press the high mast for straightening after welding or after welding and Hot Dip Galvanizing process





Specifications



No. Item Unit Value
1 Model   HJZ-1000
2 Max, diameter of the pole mm 1000
3 Working force KN 1000
4 Max stroke Mm 650
5 Max distance from rod to worktable Mm 1150
6 Two-side cylinder output force KN 300X2
7 lateral cylinder stroke mm 400
8 Movement distance from upper to lower for two-side cylinder mm 430
9 Max working pressure MPa 25
10 Height above ground of worktable mm 305
11 Column inner distance mm 1450
12 Total motor power kW 18.5+5.5
13 Weight kg 4000
14 Overall size mm 1300*1900*2400





































High mast welding process:



We have two ways

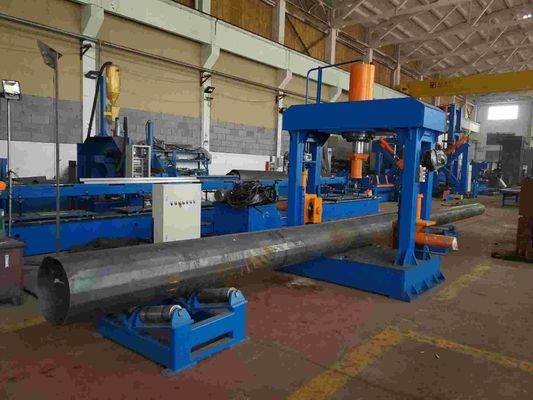

1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole

1000mm Big light pole close and straightening machine for transmission tower 0

1000mm Big light pole close and straightening machine for transmission tower 1

1000mm Big light pole close and straightening machine for transmission tower 2

2)Economical way

1000mm Big light pole close and straightening machine for transmission tower 3

1000mm Big light pole close and straightening machine for transmission tower 4
