High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube

Brand Name:	CMC
Model Number:	SHL-4000
MOQ:	1 set
Price:	according to the machine requirement
Payment Terms:	Down payment 30% T/T, 70% T/T before shipping
Supply Ability:	According requirement

Detail Information

Product Description

Detail Information

Place of Origin:

Wuxi, Jiangsu, China

Packaging Details:

Suitable for container shipping

Supply Ability:

According requirement

Highlight:

gantry welding machine

Product Description

Quick Detail:

Name

Other Name

Brand Name

CMC

High mast welding machine-light pole machine to weld high mast

High mast welding machine

High mast seam weld

High mast seam welding machine

Gantry type welding machine

Big/large pole welding

Big/large pipe/tube welding

Feature

It can weld big diameter pole/tube/pipe seam automatically.

Welding capacity

Diameter range 300-2000mm

12000mm in length

Welding wire

3.2-5mm wire

Application:

It is for final welding process for high mast longitudinal weld-seam

Description:

Component configuration supplied by seller

travel driving motor :YDS100-4 low speed motor 1 set
welding lifting choose SCWS-08-1.1W deceleration machine 1 set
flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m

D,submerged arc welding machine 1 set

E,power cord 3×16m㎡,60m

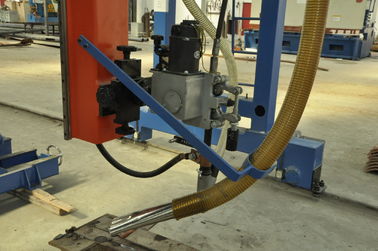

F,arc guidance 1 sets(including welding gun)

G,cable movement pulley

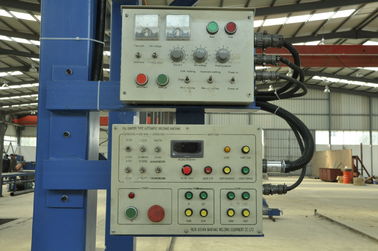

H,electrical apparatus box 1 set control box 1 set

technical documents

Whole machine foundation drawing
machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)

parts supplied by buyer

A,24Kg track 40m

B,Make base according to supplied information

C,Gliding wire frame

D,welding V frame or roller frame

E,lubrication for deceleration machine (machine oil 20#)

High mast welding process:

We have two ways

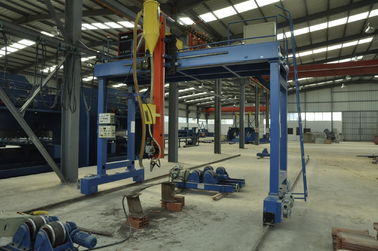

1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube 0

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube 1

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube 2

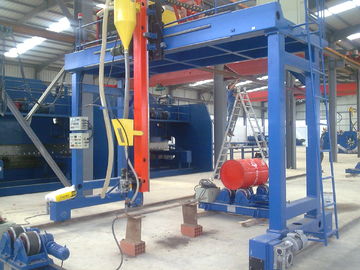

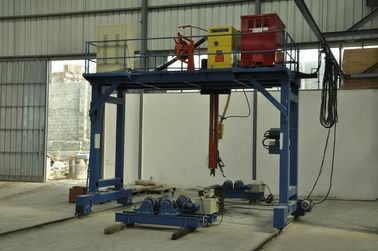

2) Economical way

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube 3

High efficiency Light Pole Machine, High Mast Gantry welding machine for large pipe / tube 4
