Lamp Post Taper Cutting Machine 6mm Cnc Plate Cutting Machine

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Model Number: 6X1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: 80-90 days
Payment Terms: Ex works/ FOB SHANGHAI/ CIF

Detail Information

NAME: Lamp Post Equipment APPLICATION: Street Light Pole Industrial
PROCESS: Get One Side Bigger One Side Smaller SPEED: 12m/min
High Light:

lamp post Taper Cutting Machine


12m/min Taper Cutting Machine


6mm cnc plate cutting machine

Product Description

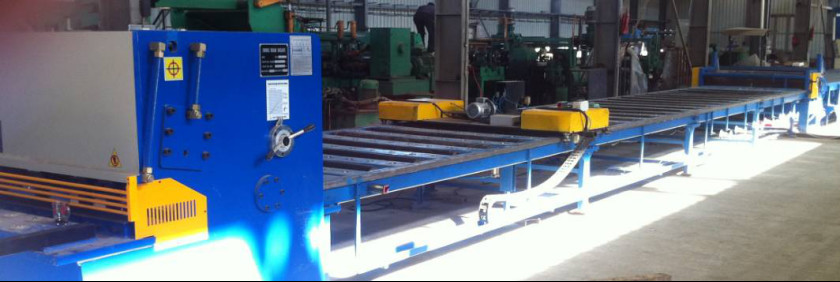

Lamp Post  Equipment Taper Cutting Machine To Get One Side Bigger One Side Smaller Plate




The lamp post plate slitting machine is base on the rolling shearing principle.

There are two precess step on the machine:

First step is to cut the scrap edge of the hot rolled steel to get the exact width and good edge which is good for lamp post seam welding process.

There is a dolly in the front of the slitting unit. It is for control the straight cutting.

Second step is to cutting the lamp post taper steel and get one side big one side small width steel plate.

There is a dolly in the cof the slitting unit. It is for control the taper cutting degree. Through changing the base position on dolly to change the taper degree.


Quick Detail:


Name Other name Brand Name CMC
Taper Cutting Machine

Ladder shaped plate cutting machine,

Lamp Post cutting machine,

Slitting machine

Feature Our line can cut the scrap edge of the steel sheet, cut one piece into 3 piece, and get one small size and one big size width
Cutting capacity

2-6mm in thickness

12000mm in length

800-1600mm in width

Usage Industrial Street light pole industrial





It is for lamp post material to cut the scrap edge of the sheet two sides, and slitting the sheet into 3 pieces or 2 pieces to get one side small and one side big width.




Name Unit Value
Max. Cutting Thickness Mm 2.5~6
Max.plate width Mm 1600
Max. inner Width of double slitting unit Mm 1600
Max. inner Width of taper slitting unit Mm 1800
Max. Cutting Length Mm

12000 or 14000

(according requirments)

Slitting speed m/min. 12
Power of the motor Kw 5.5+5.5
Overall size

40x3m( for 12m light pole),

or 46x3m( for 14m light pole)
