High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency

1 set
MOQ
according to the machine requirement
Price
High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

light pole production line

Basic Infomation
Place of Origin: Wuxi, Jiangsu, China
Brand Name: CMC
Certification: ISO
Model Number: SHL-4000
Payment & Shipping Terms
Packaging Details: Suitable for container shipping, both marine and inland transportation
Delivery Time: According to specific requirement
Payment Terms: 30% T/T Down payment, 70% T/T before shipping, L/C
Supply Ability: According to specific requirement
Product Description

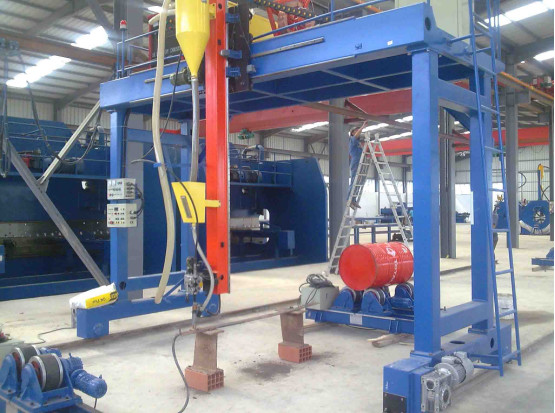

High Mast Gantry Welding Machine For Large Pipe / Tube , High Efficiency



Quick Detail:



Name Other Name Brand Name CMC
High mast welding machine-light pole machine to weld high mast

High mast welding machine

High mast seam weld

High mast seam welding machine

Gantry type welding machine

Big/large pole welding

Big/large pipe/tube welding

Feature It can weld big diameter pole/tube/pipe seam automatically.
Welding capacity

Diameter range 300-2000mm

12000mm in length

Welding wire 3.2-5mm wire





Application:



It is for final welding process for high mast longitudinal weld-seam



Description:

  • Component configuration supplied by seller
  • travel driving motor :YDS100-4 low speed motor 1 set
  • welding lifting choose SCWS-08-1.1W deceleration machine 1 set
  • flux recovery fitting 1 set, powder bucket 1 set, suction 1 piece, sucker 1×5m

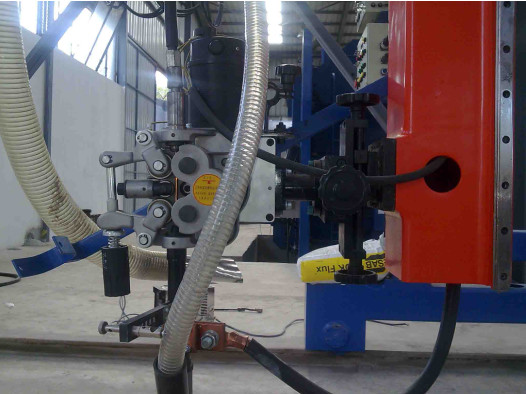

D,submerged arc welding machine 1 set

E,power cord 3×16m㎡,60m

F,arc guidance 1 sets(including welding gun)

G,cable movement pulley

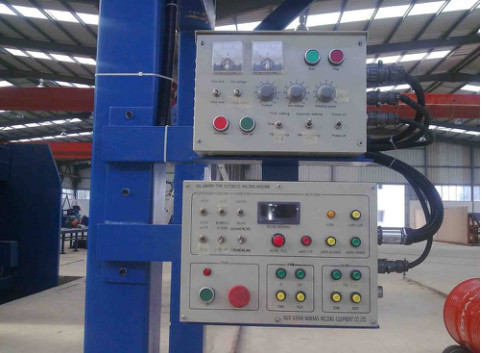

H,electrical apparatus box 1 set control box 1 set

  • technical documents
  • Whole machine foundation drawing
  • machine instructions (electrical appliance diagrams, line hanger drawing, V frame drawing)
  • parts supplied by buyer

A,24Kg track 40m

B,Make base according to supplied information

C,Gliding wire frame

D,welding V frame or roller frame

E,lubrication for deceleration machine (machine oil 20#)



High mast welding process:

We have two ways

1)High efficiency way,use high mast assembly and straightening machine to close the high mast pole

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 0

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 1

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 2

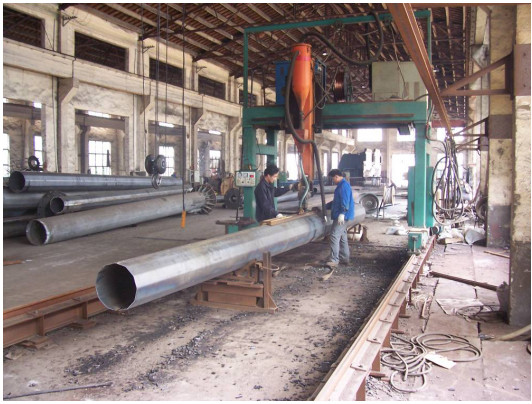

2)Economical way

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 3

High Mast Gantry Welding Machine For Large Pipe / Tube, High Efficiency 4
