Hydraulic Monopole Straightening Machine 1200KN For 5G Pole Straightening Splicing Reshaping

1 set
MOQ
negotiable
Price
Hydraulic Monopole Straightening Machine 1200KN For 5G Pole Straightening Splicing Reshaping
Features Gallery Product Description Request A Quote
Features
Specifications
Max Processing Pole Length: 12000mm（12m）
Color: Customizable
Processed Workpiece Type: Ower Monopole / 5G Pole / High Mast Pole
Total Straightening Tonnage: 1200KN
Main Motor Configuration: 15kW + 5.5kW Dual Pump Motor
Machinable Pole Diameter Range: 700mm – 2800mm
Operation Control Mode: Wireless Remote Control
Surface Protection Material: Polyurethane Coating
Highlight:

Hydraulic Monopole Straightening Machine 1200KN

,

5G Pole Straightening Machine

,

Pole Splicing Reshaping Machine
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: CMC
Model Number: HJZ-2800
Payment & Shipping Terms
Packaging Details: Suitable for container shipment, both marine and inland transportation
Delivery Time: According to requirement
Payment Terms: L/C,T/T
Supply Ability: According to requirements
Product Description
Multi-Function Hydraulic Monopole Straightening Machine HJZ-2800
Quick Overview
Item Details
Product Name Monopole Straightening Machine / Power Pole Straightener
Model HJZ-2800
Integrated Functions Pole straightening, plate splicing, post-weld rounding
Applicable Workpieces Power transmission monopole, 5G communication pole, high mast light pole
Origin Jiangsu, China
MOQ 1 Set
Standard Voltage 380V 50Hz, customizable
Target Buyers Steel pole factory, telecom tower production plant
Product Introduction

The HJZ-2800 heavy-duty hydraulic monopole straightener is specifically designed for large-diameter, thick-wall power poles, 5G smart monopoles, and highway high mast poles. This advanced machine integrates three core working procedures: longitudinal welding deformation correction, two steel plate splicing positioning, and post-weld pole rounding for easier flange assembly.

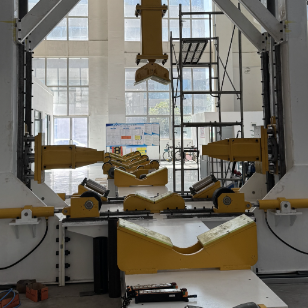

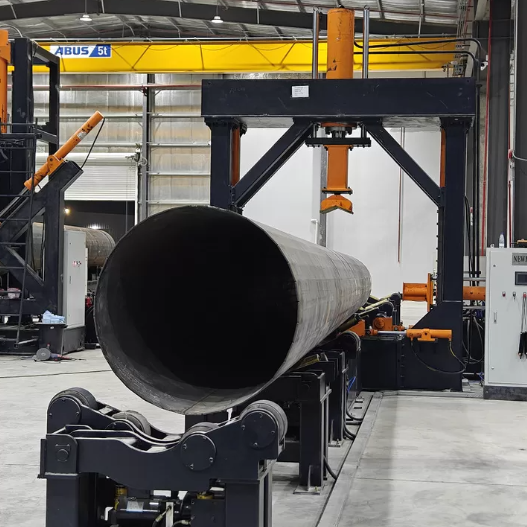

Featuring a robust three-beam frame design, the machine incorporates independent main cylinder and dual side cylinders with separated oil circuits to prevent pressure loss. The jog control system supports synchronous or separate operation of side cylinders. Standard wireless remote handle and polyurethane-coated pressing parts eliminate indent marks on pole surfaces. Built-in hydraulic lifting support rollers and rotating devices significantly simplify loading, moving, and rotating of poles up to 12 meters long.

Core Processing Functions
Serial No. Function Description
Function 1 Straighten bending deformation of poles after longitudinal seam welding
Function 2 Clamp and splice two bent steel plates via top & side cylinders, support manual spot welding for follow-up full welding
Function 3 Reshape welded poles into perfect round shape for smooth flange installation
Technical Parameters
No. Item Unit Value
1 Model Number - HJZ-2800
2 Applicable Pole Diameter Range mm 700 ~ 2800
3 Max Supportable Pole Length mm 12000
4 Working Force of Top Main Cylinder KN 1200
5 Max Stroke of Main Cylinder mm 1400
6 Max Distance Between Cylinder Rod & Worktable mm 2900
7 Output Force of Single Side Cylinder KN 300 × 2
8 Stroke of Lateral Side Cylinders mm 800
9 Vertical Travel Range of Side Cylinders mm 1300
10 Max Hydraulic Working Pressure MPa 21
11 Worktable Height from Ground mm 650
12 Inner Clearance Between Two Columns mm 3200
13 Main Motor Power (Dual Pump System) kW 15 + 5.5
14 Net Weight of Main Machine kg 25000
15 Machine Floor Space mm Length: Pole length + 2500; Width: 5300; Height: 6000
Structural & Performance Advantages
Advantage Item Detailed Explanation
Three-beam integrated frame Main hydraulic cylinder mounted at the center of upper crossbeam for vertical lifting movement
Vertically adjustable dual side cylinders Side cylinders move up and down via long-stroke cylinders to align pressing points with pole central axis
Independent hydraulic oil circuits Main cylinder and side cylinders adopt separated pipelines, no mutual interference and zero pressure loss
Jog operation control All movements work on jog mode; two side cylinders can run simultaneously or individually
Hydraulic lifting support rollers Two sets of front & rear lifting wheels for easy forward & backward movement of long poles
Hydraulic rotating devices Lifting rotary structures at both ends to rotate poles freely during processing
Auxiliary positioning rollers 4 small hydraulic cylinders control internal rollers to fix poles stably
Standard wireless remote control Handheld remote for safer, single-person operation away from the machine
Polyurethane protective coating All contact pressing parts wrapped with PU layer to avoid pole surface scratches & indentations
Application Matching
Pole Type Corresponding Working Stage
Large power transmission monopole Post-weld straightening, rounding & plate splicing
5G communication signal pole Thick-wall forming, positioning and deformation correction
Highway high mast lighting pole Oversized long pole bending rectification
Packaging & Shipment Information
Item Specification
Export Packing Split disassembly, waterproof film + heavy steel frame package
Total Gross Weight (with package) About 27500kg
Production Lead Time 15-25 working days after deposit receipt
Loading Port Shanghai Port / Ningbo Port
Trade Terms FOB, CFR, CIF Negotiable
After-Sales Service
Service Item Service Details
Warranty Coverage 12 months full machine warranty; 24 months for hydraulic cylinder, pump and main motor
Spare Parts Supply Long-term supply of low-cost vulnerable spare parts online
Overseas Service Professional engineers available for overseas installation, commissioning & operator training
Online Technical Support 24/7 video, email and phone troubleshooting guidance
Supporting Documents Complete English operation manual & operation video delivered together
Frequently Asked Questions
1. What types of poles is HJZ-2800 suitable to process?
It is designed for large thick-wall poles including power transmission monopole, 5G communication pole and highway high mast pole, applicable diameter range 700-2800mm.
2. How many working functions does this machine integrate?
It has three core integrated functions: post-longitudinal-welding straightening, steel plate splicing positioning, and post-weld rounding to facilitate flange assembly.
3. Can this machine avoid indent marks on pole surface?
Yes, all pressing contact components are covered with thick polyurethane coating to protect steel pole surface from scratches and indentations.
