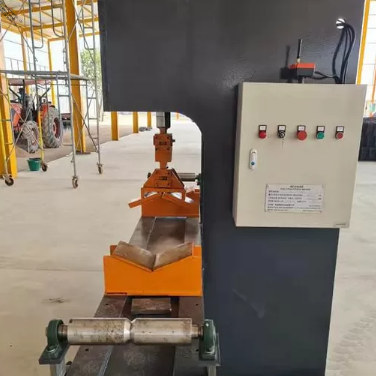

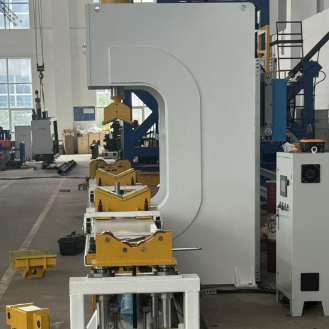

630KN Heavy Force Hydraulic Pole Straightening Machine with 4000mm Processing Length and Wireless Remote Control

1 set
MOQ
negotiable
Price
630KN Heavy Force Hydraulic Pole Straightening Machine with 4000mm Processing Length and Wireless Remote Control
Features Gallery Product Description Request A Quote
Features
Specifications
Color: Customizable
Processed Workpiece Type: Street Light Pole & High Mast Pole
Total Straightening Tonnage: 63 Ton (630KN)
Effective Processing Length: 4000mm
Hydraulic Pump Motor Power: 7.5 KW
Supporting Roller Layout: Double Side Standard Rollers
Machinable Pole Diameter Range: 58mm - 600mm
Operation Control Mode: Wireless Remote Control
Highlight:

630KN hydraulic street light pole straightener

,

heavy force pole straightening machine

,

4000mm street light pole repair tool
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: CMC
Model Number: JZ-30-3000
Payment & Shipping Terms
Packaging Details: Suitable for container shipment, both marine and inland transportation
Delivery Time: According to requirement
Payment Terms: L/C,T/T
Supply Ability: According to requirements
Product Description
Hydraulic Street Light Pole Straightening Machine
JZ-63-4000
1. Quick Overview
Item Details
Product Name Pole Straightening Machine / Tapered Light Pole Straightener
Model JZ-63-4000
Core Usage Correct bending deformation of street light poles & high mast poles after longitudinal welding and hot dip galvanizing
Origin Jiangsu, China
MOQ 1 Set
Standard Voltage 380V 50Hz, customizable
Target Customer Light pole manufacturing factory, steel pole production line
2. Product Introduction

JZ-63-4000 heavy-duty hydraulic pole straightening machine is customized for straightening tapered street light poles and high mast poles after welding and hot dip galvanizing. It comes with wireless remote control handle for convenient single-person operation. All contact pressure parts are covered with polyurethane material to eliminate indentations and scratches on galvanized pole surface. Standard double-side supporting rollers fix poles stably during pressurization. Powerful 630KN hydraulic force supports poles diameter from 58mm to 600mm. 4000mm extended worktable perfectly fits extra-long highway high mast poles.

3. Core Features & Business Benefits
Feature Customer Benefit
Wireless remote control handle Operate far from machine, higher safety & efficiency, single-person operation
Polyurethane protective cover on rollers & ram No marks/scratches on finished galvanized poles, reduce polishing rework cost
Standard dual-side support rollers Firm clamping, no slipping, stable straightening precision
630KN heavy hydraulic straightening force Suitable for thick & large-diameter high mast poles, tiny residual bending
Wide processing diameter: 58–600mm From small garden lamp poles to large highway high mast poles
4000mm extended worktable Process long poles without secondary clamping
7.5kw heavy-duty pump motor Stable continuous hydraulic output, long service life
Integrated solid frame, total weight 2600kg Anti-vibration during pressing, consistent correction effect
4. Complete Technical Parameters
Item Unit Value
Max. Applicable Pole Diameter mm 600
Min. Applicable Pole Diameter mm 58
Nominal Working Pressure KN 630
Length of Worktable mm 4000
Distance Between Two Housings mm 900
Throat Depth (Cylinder center to side frame) mm 310
Cylinder Stroke mm 400
Max. Opening Clearance Height mm 600
Main Pump Motor Rotate Speed r/min 1440
Main Pump Motor Power KW 7.5
Overall Dimension-Length mm 4000
Overall Dimension-Width mm 1260
Overall Dimension-Height mm 2230
Total Net Machine Weight Kg 2600
5. Application Scope
Workpiece Type Processing Working Stage
Road street light tapered poles After longitudinal seam welding
Large highway high mast poles After hot dip galvanizing anti-rust treatment
Solar street lamp poles Post-welding bending correction
Traffic monitoring signal poles Post-galvanizing straightening
Octagonal lighting steel poles Deformation straightening after fabrication


6. Packaging & Shipment Information
Item Specification
Export Packing Heavy steel frame or standard export wooden case
Packing Outer Size 4100*1360*2330mm
Gross Weight (with package) About 2850kg
Production Lead Time 7–15 working days after deposit
Loading Port Shanghai Port / Ningbo Port
Trade Terms FOB, CFR, CIF negotiable
7. After-Sales Service Support
Service Item Detailed Content
Warranty Period 12 months full machine warranty; 24 months for core hydraulic components
Spare Parts Supply Long-term supply of low-cost vulnerable spare parts online
Oversea Technical Service Professional engineers available for overseas installation, commissioning & training
Online Support 24/7 video, email & phone technical guidance
Attachment Files English operation manual and operation video supplied together
8. FAQ
Question Answer
1. What is the straightening force of JZ-63-4000 machine?? No. All pressure heads and support rollers are wrapped with thick polyurethane to avoid indentation and surface scratches.
2. What size poles can JZ-63-4000 straighten? The machine has a 4000mm worktable; poles longer than 4m can be processed by segmented clamping. Applicable pole diameter range: 58mm–600mm, ideal for large high mast poles.
3. Is wireless remote control standard equipped? Yes, wireless remote handle is standard accessory for safe and convenient single-person operation.
