Name: 30Ton 3M Wireless Remote Control Pole Straightening Machine for Street Light Poles
Brand: Wuxi CMC Machinery Co.,Ltd
SKU: JZ-30-3000
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Total Straightening Tonnage: 30 Ton (300KN)

Effective Processing Length: 3000mm

Machinable Pole Diameter Range: 58mm - 300mm

Operation Control Mode: Wireless Remote Control

Color: Customizable

Supporting Roller Layout: Double Side Standard Rollers

Processed Workpiece Type: Street Light Pole & High Mast Pole

Hydraulic Pump Motor Power: 5.5 KW

Highlight:

30Ton street light pole straightening machine

3M pole straightening machine with remote

wireless remote control pole straightening machine

Basic Infomation

Place of Origin: WUXI, CHINA

Brand Name: CMC

Model Number: JZ-30-3000

Payment & Shipping Terms

Packaging Details: Suitable for container shipment, both marine and inland transportation

Delivery Time: According to requirement

Payment Terms: L/C,T/T

Supply Ability: According to requirements

Gallery

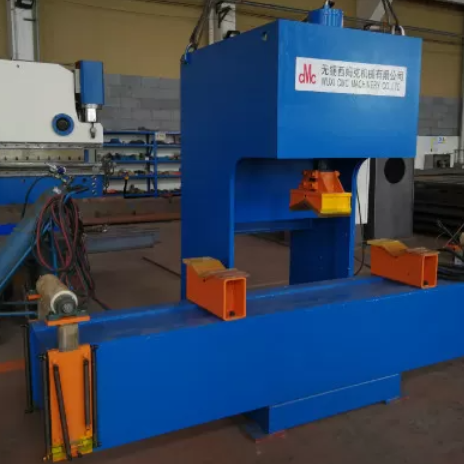

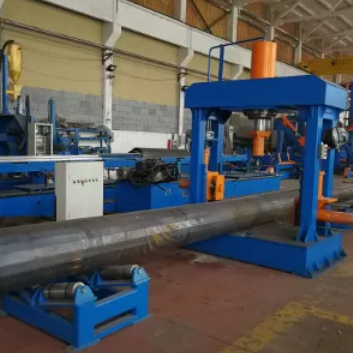

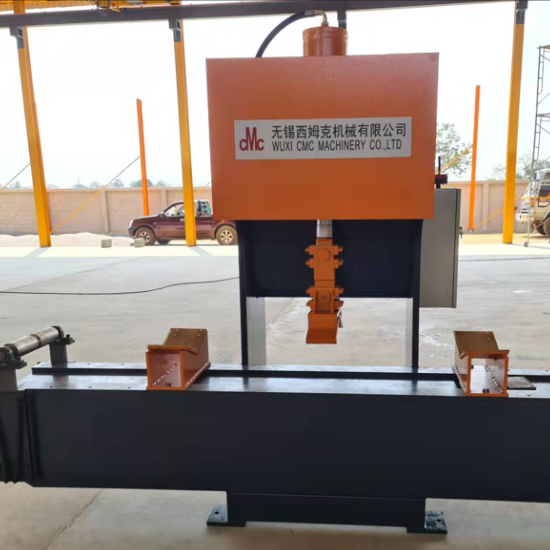

30Ton 3M Wireless Remote Control Pole Straightening Machine for Street Light Poles

Product Description

Product Introduction

This JZ-30-3000 hydraulic pole straightening machine is professionally designed to correct bending deformation of tapered street light poles and high mast poles after longitudinal welding and hot dip galvanizing treatment.

It is equipped with a wireless remote control handle for one-person easy operation, and all contact rollers are covered with a thick polyurethane layer to avoid scratches and indentation on the galvanized pole surface.

Standard double-side supporting rollers ensure stable clamping during the straightening process. With 300KN nominal hydraulic pressure, it provides stable straightening force for poles with a diameter ranging from 58mm to 300mm, and the 3000mm effective worktable length fits most conventional street lamp poles on the market.

Core Features & Competitive Advantages

Feature	Benefit for Your Business
Wireless remote control handle	Allows free movement around the machine, improves operation safety and working efficiency, one-person operation is available
Polyurethane cover on pressure head & rollers	Protects the galvanized pole surface from indentation and scratches, reduces post-polishing rework cost
Standard double-side support rollers	Provides stable bearing, avoids pole slipping and rolling during pressurization, ensures straightening accuracy
300KN stable hydraulic power output	Delivers uniform straightening force, leaves minimal residual deformation on the pole
Wide applicable diameter range (58mm-300mm)	Compatible with small garden light poles to large highway high mast poles, multi-purpose for different production needs
Compact overall structure with 2300kg total weight	Saves factory space, flexible for workshop layout and placement
3000mm long worktable	Covers the processing length of most conventional street light poles, no need for secondary clamping

Main Technical Parameters

Item	Unit	Value
Max. Applicable Pole Diameter	mm	300
Min. Applicable Pole Diameter	mm	58
Nominal Working Pressure	KN	300
Length of Worktable	mm	3000
Distance Between Housings	mm	900
Throat Depth (Cylinder center to side frame)	mm	310
Cylinder Stroke	mm	350
Max. Open Height	mm	550
Main Pump Motor - Rotate Speed	r/min	1440
Main Pump Motor - Power	KW	5.5
Overall Dimension - Length	mm	3000
Overall Dimension - Width	mm	1260
Overall Dimension - Height	mm	2030
Total Machine Weight	Kg	2300

Application Scope

Applicable Pole Type	Processing Stage
Road street light poles	After longitudinal seam welding
Highway high mast lighting poles	After hot dip galvanizing treatment
Monitoring signal poles	Post-welding & post-galvanizing deformation correction
Solar street lamp poles	Tapered steel pole straightening
Octagonal street light poles	Bending correction after welding

Packaging & Shipping Details

Item	Details
Packaging Type	Standard export wooden box or steel frame packing
Packaging Size	310013602130mm
Gross Weight	2500kg (with packing)
Lead Time	7-15 working days upon receipt of deposit
Shipping Port	Shanghai Port / Ningbo Port, China
Trade Terms	FOB, CFR, CIF (Negotiable)

9. After-sales Service & Technical Support

Service Item	Content
Warranty Period	12 months for the whole machine, 24 months for core hydraulic parts
Spare Parts Supply	Long-term supply of low-cost vulnerable parts online
Oversea Service	Engineers available for on-site installation, commissioning and operation training
Technical Support	24/7 online technical support via video call, email and phone
Installation Guide	Detailed English installation manual and operation video provided
