Brand Name:	CMC
Model Number:	JZ-63-4000
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	According to specific requirement

TECHNICAL PARAMETER 主要技术参数
Name 项目		Unit 单位	Value 数值	Value 数值
Max. Pole diameter最大灯杆直径		mm	350	650
Min. Pole diameter最小灯杆直径		mm	60	60
Nominal working pressure标称工作压力		KN	300	630
Length of worktable 工作台长度		mm	3000	4000
Distance between Housing 墙板间距		mm	840	900
Throat Depth 喉口深度 (Cylinder center to side frame)		mm	210	310
Stroke油缸行程		mm	400	400
Max. Open Height 最大开启高度		mm	510	600
Main Motor(for Pump)电动机油泵	Rotate Speed旋转速度	r/min	1440	1440
Main Motor(for Pump)电动机油泵	Power 功率	KW	5	7.5
Overall Dimensions 外形尺寸	Length 长	mm	3000	4000
	Width 宽	mm	1260	1260
	Height 高	mm	2230	2230
Weight重量		Kg	2000	2300

CNC Hydraulic Press Brake

Press Brake Machine

CNC Tandem Press Brake

Light Pole Machine

Light Pole Shut-Welding Machine

Light Pole Door Cutting Machine

Highmast And Monopole Seam Welding Machine

Cut To Length Machine

Taper Cutting Machine

Guardrail Roll Forming Machine

Hydraulic Shearing Machine

Press Brake Tooling

Shearing Machine Blade

Shot Blasting Machine

Laser Cutting Machine

CNC Plasma Cutting Machine

Automatic Welding Machine

Pole Straightening Machine

Steel Coil Slitting Line

Robotic Welding Machine

Hot Dip Galvanizing Equipment

CNC Hydraulic Press Brake

Press Brake Machine

CNC Tandem Press Brake

Light Pole Machine

Light Pole Shut-Welding Machine

Light Pole Door Cutting Machine

Highmast And Monopole Seam Welding Machine

Cut To Length Machine

Taper Cutting Machine

Guardrail Roll Forming Machine

Hydraulic Shearing Machine

Press Brake Tooling

Shearing Machine Blade

Shot Blasting Machine

Laser Cutting Machine

CNC Plasma Cutting Machine

Automatic Welding Machine

Pole Straightening Machine

Steel Coil Slitting Line

Robotic Welding Machine

Hot Dip Galvanizing Equipment

products details

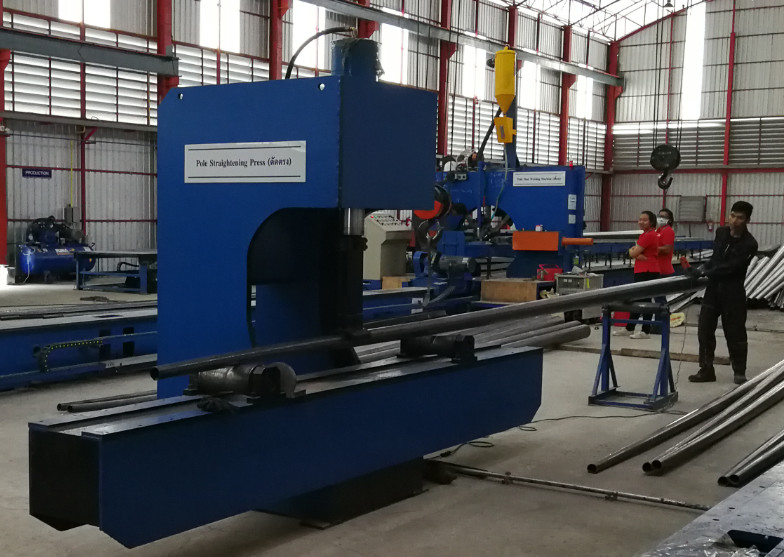

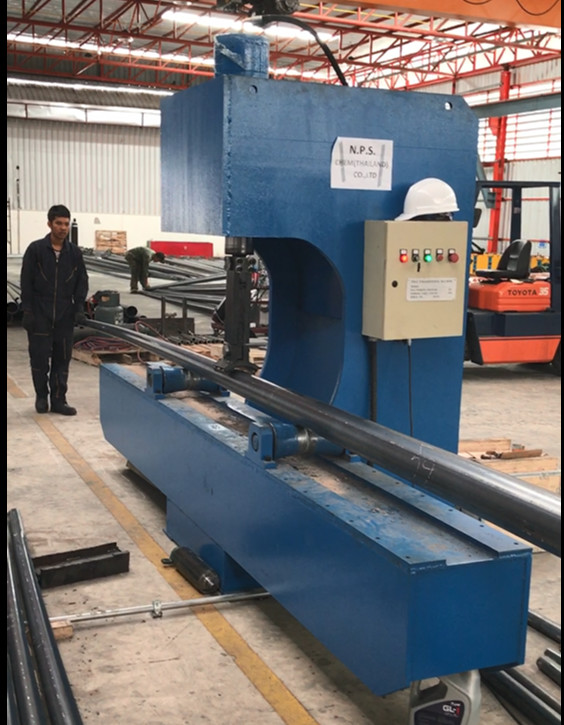

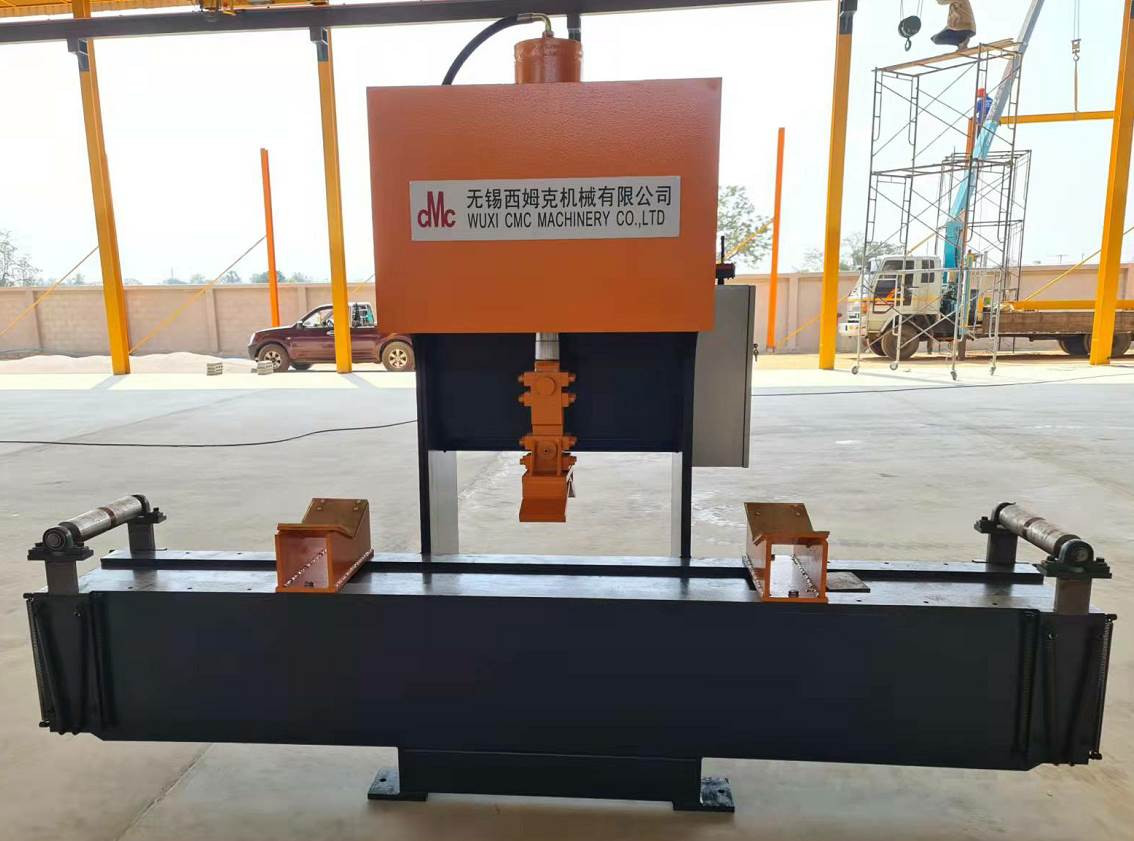

Light Pole Straightening Machine Model JZ-63-4000
