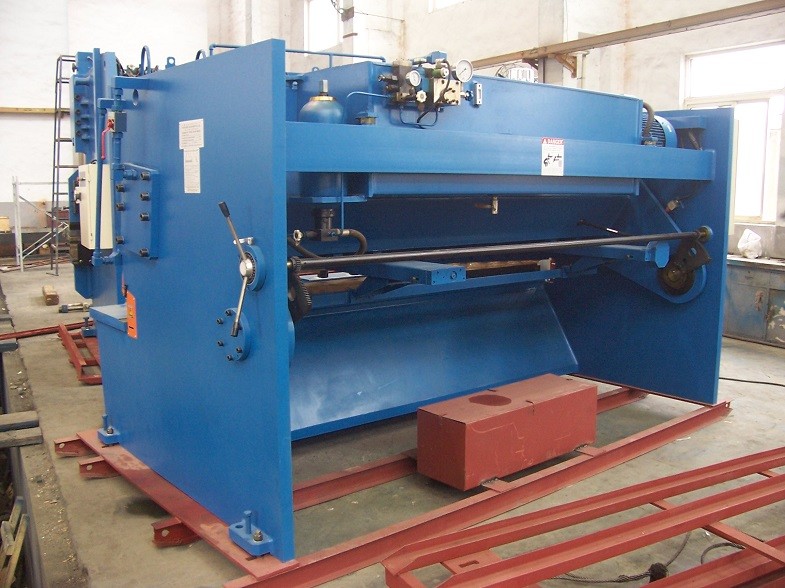

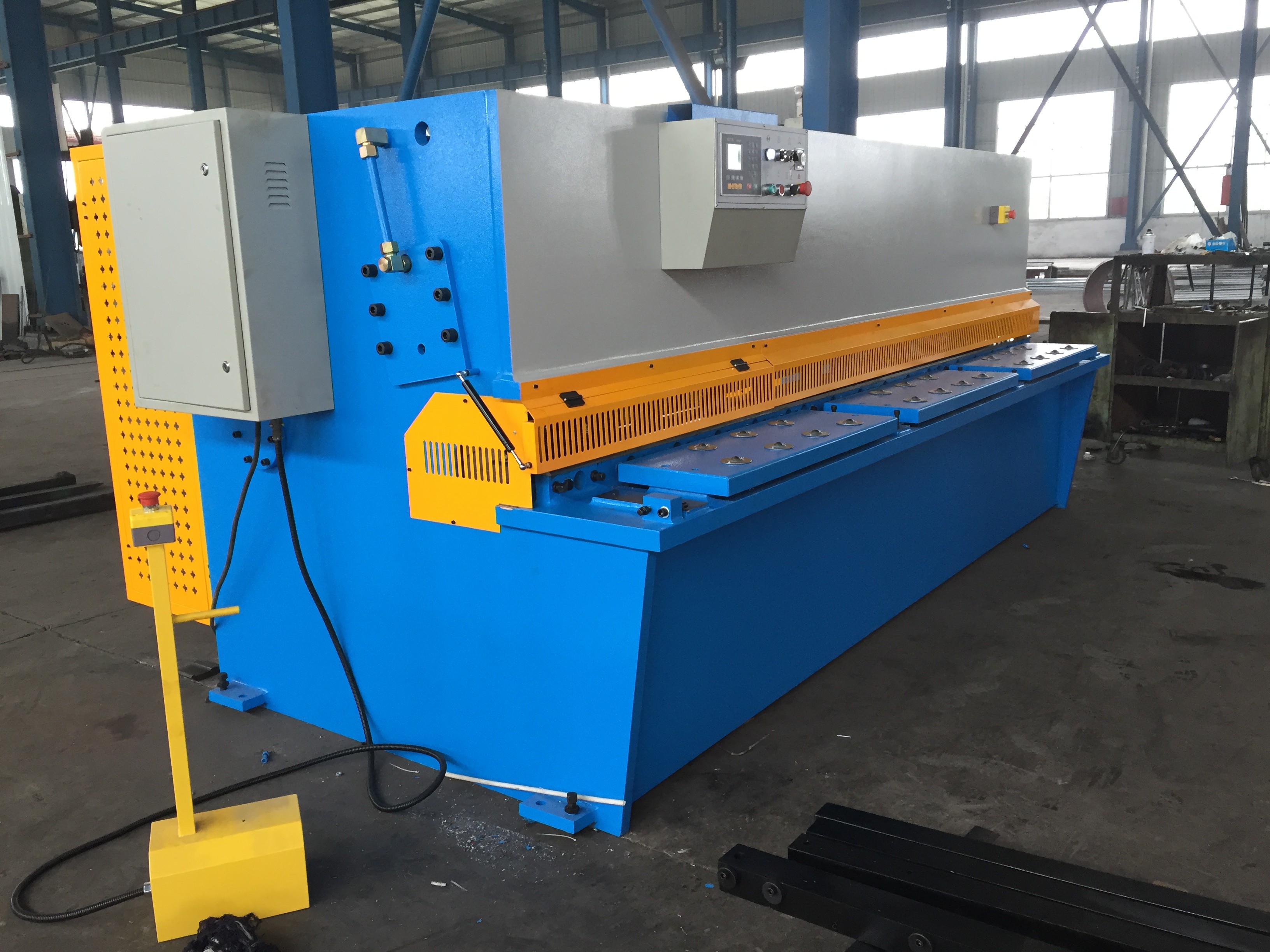

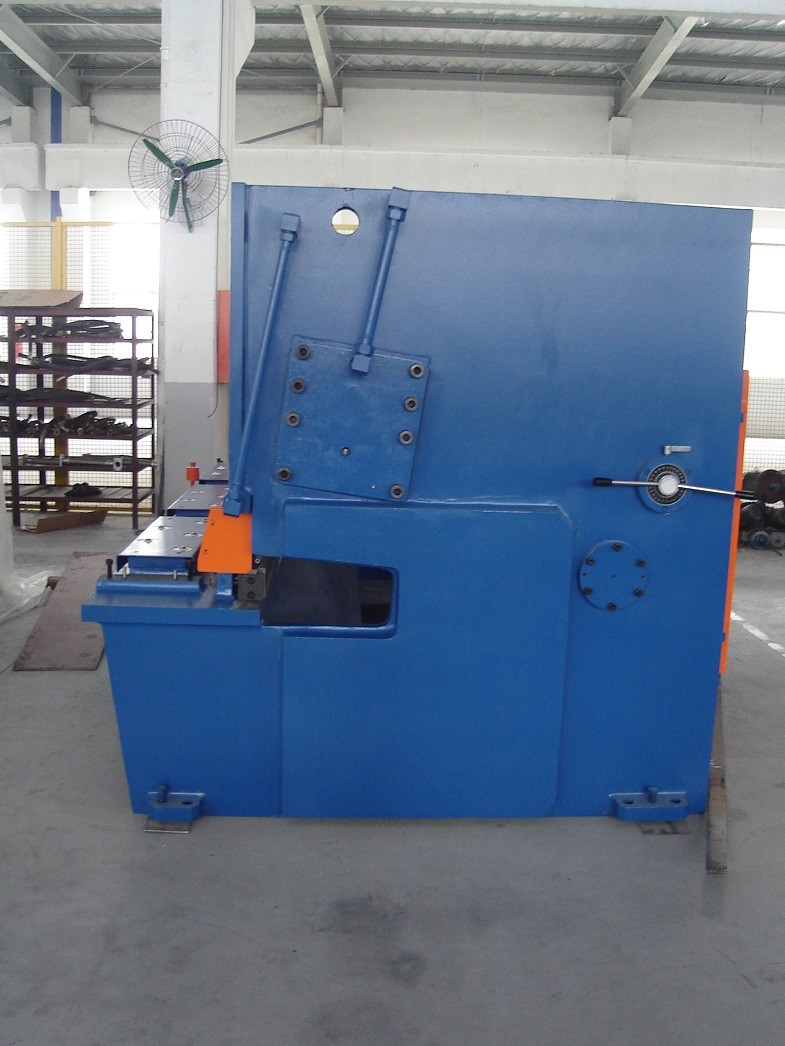

25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting

25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting
25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting 25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting 25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting 25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting

Large Image :  25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting

Product Details:
Place of Origin: wuxi -china
Brand Name: CMC
Model Number: QC12Y series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: FOB/CIF
Supply Ability: According requirement

25 x 2500 Heavy Duty Hydraulic Shearing Machine / metal cutting

Description
Highlight:

hydraulic guillotine shearing machine

,

sheet metal shearing machine

Fetures:

1)Sheet plate structure is adopted.with hydraulic transmission and accumulator return,typical of an easy operation,reliable performance,and nice appearance.fitted with digital display system.

2)Hydraulic driven and returning stroke is activated by the nitrogen cylinder smoothly and promptly.The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.

3)Rolling material support ball is provided,to minimize fish tail with sheet bar and to reduce frictional resistance.

4)The machine tool is provided with the functions of digital display,soft limit,as well as prompt for one-way positioning clearance,and automatic counting for shearing.

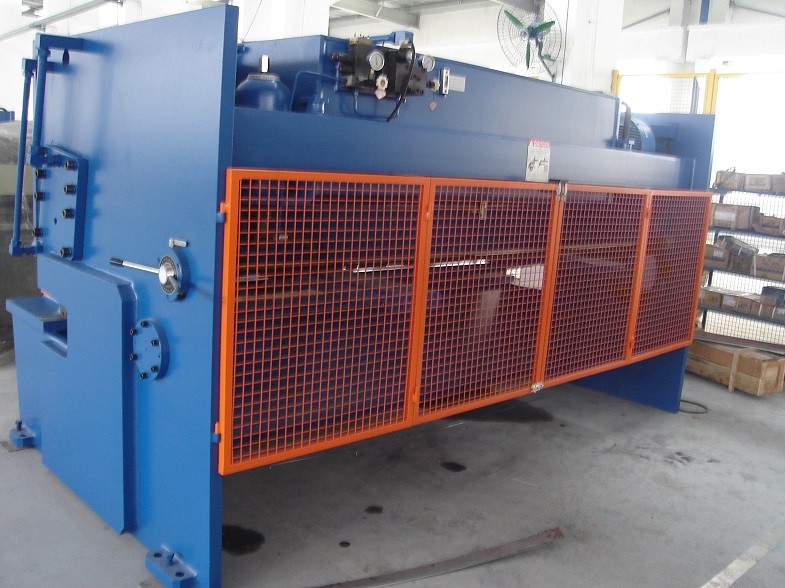

5)The machine uses protection fence for safe operation.



Technical Parameters:

Model Number of stroke Bake gauge Range Cutting Angle Main Motor Dimension
QC12Y-12×2500 10 20-600 10 4850*2152*2090
QC12Y-12×3200 10 20-800 1°30’ 10 3400*1690*1800
QC12Y-12×4000 8 20-800 8 4085*2250*2150
QC12Y-12×5000 8 20-800 8 5900*2480*2400
QC12Y-16×2500 8 20-800 8 3435*2050*2130
QC12Y-16×3200 7 20-800 7 4120*2192*2155
QC12Y-16×4000 7 20-800 7 4900*2300*2315
QC12Y-20×2500 6 20-800 2°30’ 6 3450*2075*2515
QC12Y-20x3200 5 20-800 2°30’ 5 4180*2300*2600
QC12Y-20x4000 5 20-800 2°30’ 5 4950*2388*2760
QC12Y-25x2500 5 20-800 5 3460*2300*2696






Hydraulic System:



- Adopt integrated hydraulic control system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.

- Every complete working cycle can be achieved through the control of hydraulic valve.The remote adjustment valve can adjust the working pressure at the right side of the wall board.

- All seals in cylinder is imported,the most famous brand,good quality and high performance

-Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly



Cutting Control System:



- The cutting times of this machining tool is displayed on a Estun E10 NC and accurately show the cut after the block size and number display.

- The parallelism of the sheet to be cut off and the precision of the shear size can be ensured. The cut stroke and cut times also can be controlled.

- Light alignment device eases drawing line for cutting, Standard front support sheet frame, A set of standard blades

- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.



Blade Adjustable and cutting Precision:



- Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.

- The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades D2 quality.

- Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.

- System uses a bladder-type hydraulic accumulator as an auxiliary energy,absorb the pressure shock,the machine is running smooth,low noise.





Advance Technology and Procedures:



- Optional:Holland Delem DAC350, DAC360, DAC310 or Estun E200 cnc controller automatically controls the backgauge, cutting stroke, cutting angle and the blades gap together the numbers of workpieces accurately.

- European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

-X axis back gauge clearance are controlled by E10s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail,, maximum stroke of backgauge can realize 1000mm.
