Pole Straightening Machine JZ-63-4000

Pole Straightening Machine JZ-63-4000
Pole Straightening Machine JZ-63-4000 Pole Straightening Machine JZ-63-4000 Pole Straightening Machine JZ-63-4000

Large Image :  Pole Straightening Machine JZ-63-4000

Product Details:
Place of Origin: Wuxi, China
Brand Name: CMC
Certification: ISO9001-2000
Model Number: JZ-63-4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to requirements
Packaging Details: Sutable for container shipping
Delivery Time: 50-60 days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

Pole Straightening Machine JZ-63-4000

Description
Name: Pole Straighten Machine Color: Blue
Application: For Light Pole Feature: Automatic
Condition: New Diameter: 600mm
High Light:

sheet metal punching machine

,

cnc plate punching machine

POLE STRAIGHTENING MACHINE MODEL: JZ-63-4000

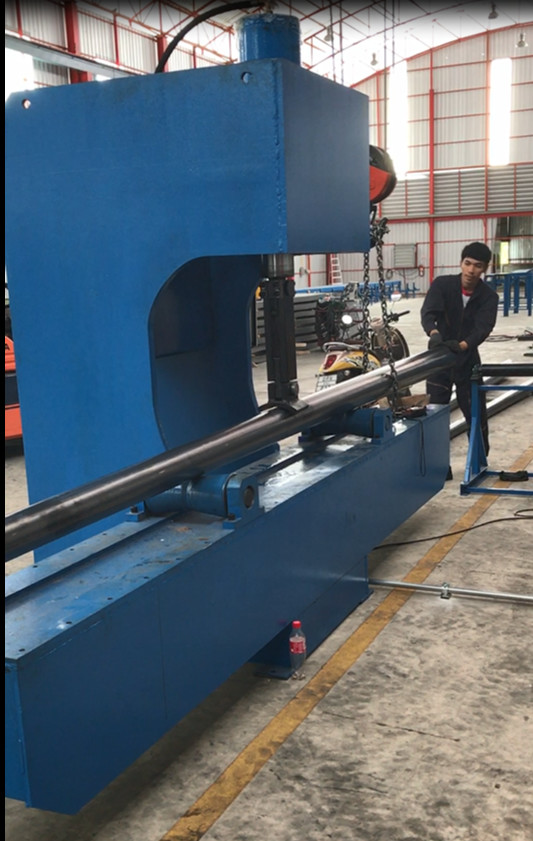

Application: it is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.

With wireless remote control handle

With polyurethane cover



路灯杆校直机 型号:JZ-63-4000

应用:本机主要用于,对路灯杆,高杆灯杆在合缝焊接和热镀锌后的弯曲变形,进行校直.

带无线遥控操作手柄,聚胺脂覆盖防止压痕

2. Technical parameter

TECHNICAL PARAMETER 主要技术参数
Name 项目 Unit 单位 Value 数值

Max. Pole diameter

最大灯杆直径

mm 600

Min. Pole diameter

最小灯杆直径

mm 58

Nominal working pressure

标称工作压力

KN 630

Length of worktable

工作台长度

mm 4000

Distance between Housing

墙板间距

mm 900
Throat Depth 喉口深度 mm 310(Cylinder center to side frame)
Stroke油缸行程 mm 400
Max. Open Height 最大开启高度 mm 600
Main Motor (for Pump)电动机油泵 Rotate Speed旋转速度 r/min 1440
Power功率 KW 7.5
Overall Dimensions外形尺寸 Length长 mm 4000
Width宽 mm 1260
Height高 mm 2230
Weight重量 Kg 3000
