Product Details:
|
| Power: | Hydraulic | Type: | Straighten |
|---|---|---|---|
| Feature: | Automatic | Application: | For Light Pole |
| Condition: | New | Diameter: | 400mm |
| Highlight: | cnc turret punching machine,sheet metal punching machine |
||

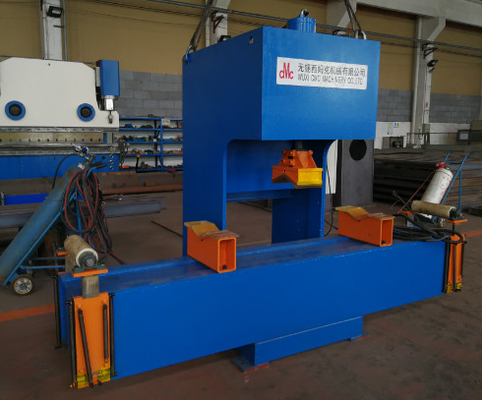

POLE STRAIGHTENING MACHINE MODEL: JZ-30-4000
Application: it is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.
With wireless remote control handle
With polyurethane cover
路灯杆校直机 型号:JZ-30-4000
应用:本机主要用于,对路灯杆,高杆灯杆在合缝焊接和热镀锌后的弯曲变形,进行校直.
带无线遥控操作手柄,聚胺脂覆盖防止压痕
2. Technical parameter
| TECHNICAL PARAMETER 主要技术参数 | |||
| Name 项目 | Unit 单位 | Value 数值 | |
|
Max. Pole diameter 最大灯杆直径 |
mm | 400 | |
|
Min. Pole diameter 最小灯杆直径 |
mm | 58 | |
|
Nominal working pressure 标称工作压力 |
KN | 300 | |
|
Length of worktable 工作台长度 |
mm | 4000 | |
|
Distance between Housing 墙板间距 |
mm | 900 | |
| Throat Depth 喉口深度 | mm | 220(Cylinder center to side frame) | |
| Stroke油缸行程 | mm | 400 | |
| Max. Open Height 最大开启高度 | mm | 600 | |
| Main Motor (for Pump)电动机油泵 | Rotate Speed旋转速度 | r/min | 1440 |
| Power功率 | KW | 5.5 | |
| Overall Dimensions外形尺寸 | Length长 | mm | 4000 |
| Width宽 | mm | 1260 | |
| Height高 | mm | 2030 | |
| Weight重量 | Kg | 3000 | |
