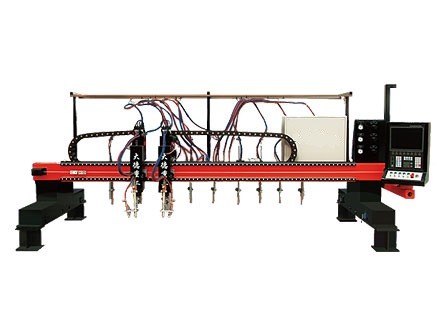

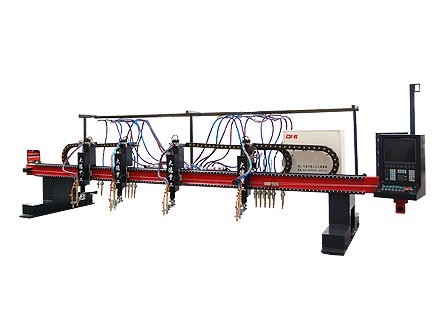

High speed Multi-Head Vertical Strip CNC Plasma Cutting Machine for Industrial

Name

High speed Multi-Head Vertical Strip CNC Plasma Cutting Machine for Industrial

Brand Name:	CMC
Model Number:	CNC6-4000
MOQ:	1 set
Price:	according to the machine requirement
Payment Terms:	L/C, T/T
Supply Ability:	According requirement

Detail Information

Product Description

Detail Information

Place of Origin:

wuxi ,china

Certification:

ISO

Packaging Details:

Suitable for container shipping

Supply Ability:

According requirement

Highlight:

portable cnc plasma cutting machine

,

cnc plasma cutting equipment

Product Description

Description:

This series of CNC cutting machine is a multiple-function thermal cutting automatic device with high efficiency, high precision and high security,combined together with computer control, precise mechanical transmission and oxyen fuel gas. Additional matching function items: power marking torch, automatic ignition, triple-torch straight cutting head, capacitive height sensing, plasma, high-frequency knocking arl.

Main Features:

● The digital control cutter is a high efficient, reliable multi-function thermal cutting automatic equipment integrating of computerized control, precision machine and oxygen-acetylene gas cutting. The selected configuration include:power-spraying lining, automatic ignition, straight line three cutting torch, capaitance autpmatic height regulation. plasma cutting and high frequency punching marking;
● Control system: USA Micro EDGE or Chinese Adtech Hc6500

● Adopt Japan Panasonic AC servo system, Germany NEUGART heliocentrictype reducer with large reduction ratio;

Technical Parameters:

Model			CNC6-4000
Gauge		4000mm	Roughtness of cutting face		Ra12.5
Effective cutting width		3200mm	Repeat precision		±0.5mm
Min.cutting width	CNC	230mm	Circuit	Oxygen	P=1MPa
				Acetylence	P=0.1MPa
	Strip	80mm		Voltage	AC220v±10%
				Frequency	50Hz
Cutting thickness		6-150
Cutting speed		0.05-1
Max.Returning Speed		6000mm/min	Total Power		2kw
Cutting precision		±0.5mm/1000mm
