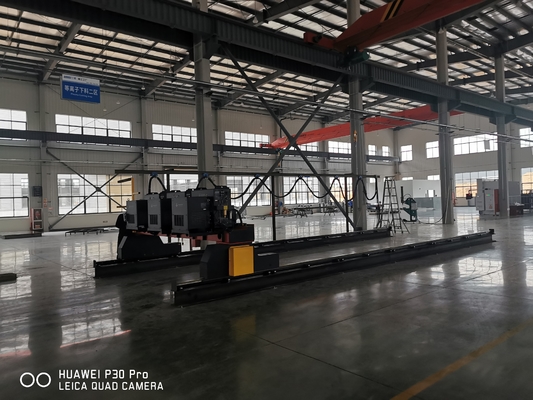

High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial

High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial
High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial
High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial

Large Image :  High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial

Product Details:
Place of Origin: wuxi ,china
Brand Name: CMC
Certification: ISO
Model Number: CP4000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: according to the machine requirement
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: L/C, T/T
Supply Ability: According requirement

High Speed CNC Plasma Cutting Machine Multi Head Vertical Strip For Industrial

Description
High Light:

High Speed CNC Plasma Cutting Machine

,

Vertical Strip CNC Plasma Cutting Machine

,

Multi Head CNC Plasma Cutting Machine

Description:



This series of CNC cutting machine is a multiple-function thermal cutting automatic device with high efficiency, high precision and high security,combined together with computer control, precise mechanical transmission and oxyen fuel gas. Additional matching function items: power marking torch, automatic ignition, triple-torch straight cutting head, capacitive height sensing, plasma, high-frequency knocking arl.





Main Features:



● The digital control cutter is a high efficient, reliable multi-function thermal cutting automatic equipment integrating of computerized control, precision machine and oxygen-acetylene gas cutting. The selected configuration include:power-spraying lining, automatic ignition, straight line three cutting torch, capaitance autpmatic height regulation. plasma cutting and high frequency punching marking;
● Control system: USA Micro EDGE or Chinese Adtech Hc6500

● Adopt Japan Panasonic AC servo system, Germany NEUGART heliocentrictype reducer with large reduction ratio;





Technical Parameters:



Model   CP4000
Gauge 4000mm Roughtness of cutting face Ra12.5
Effective cutting width 3200mm Repeat precision ±0.5mm
Min.cutting width CNC 230mm Circuit Oxygen P=1MPa
Acetylence P=0.1MPa
Strip 80mm Voltage AC220v±10%
Frequency 50Hz
Cutting thickness 6-150
Cutting speed 0.05-1
Max.Returning Speed 6000mm/min Total Power 2kw
Cutting precision ±0.5mm/1000mm
