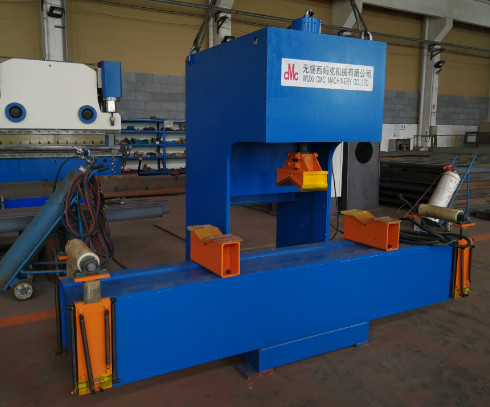

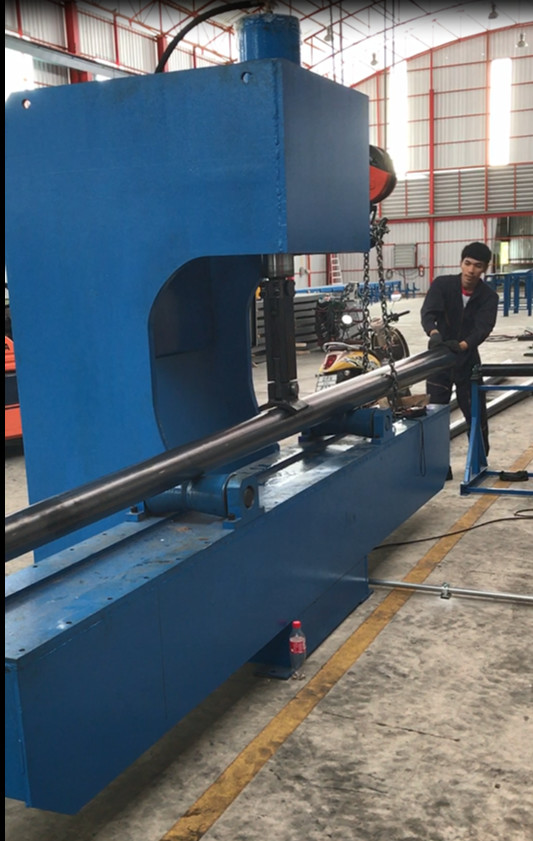

Pole Straightening Machine JZ-63-5000

Pole Straightening Machine JZ-63-5000
Pole Straightening Machine JZ-63-5000 Pole Straightening Machine JZ-63-5000 Pole Straightening Machine JZ-63-5000

Large Image :  Pole Straightening Machine JZ-63-5000

Product Details:
Place of Origin: Wuxi, China
Brand Name: CMC
Certification: ISO9001-2000
Model Number: CKY3032-1250x2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: According to requirements
Packaging Details: Sutable for container shipping
Delivery Time: 50-60 days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

Pole Straightening Machine JZ-63-5000

Description
Color: Blue Type: Straighten
Application: For Light Pole Feature: Automatic
Condition: New Diameter: 600mm
High Light:

cnc turret punching machine

,

cnc plate punching machine

路灯杆校直机 型号:JZ-63-5000

POLE STRAIGHTENING MACHINE MODEL: JZ-63-5000



Application: it is for straightening the street light pole and high mast,5G pole after welding and Hot Dip Galvanizing process.

With wireless remote control handle

With polyurethane cover



Proprietary features:

  • The length of the worktable is 5m, which is suitable for small diameter and large thickness rods such as 5G pole
  • The straightening fulcrum is connected with the workbench by bolts and can be moved according to the specific conditions of the pole to suit the street light poles with different diameters and thicknesses
  • The rod traveling roller is separated from the pressing point, which is convenient to bear relatively large straightening force. Under the action of relatively large straightening force, the indentation on the surface of the rod is avoided due to the large contact area of the pressing point.
  • Polyurethane covers the pressure point to prevent indentation
  • The pole walking rollers at both ends are equipped with springs, which can be adjusted to suit rods of different weights
  • The lower fulcrum of the oil cylinder is a movable V-groove, which is suitable for the requirements of different tapers and edges
  • With wireless remote control operation handle, it is simpler to avoid cable dragging back and forth.

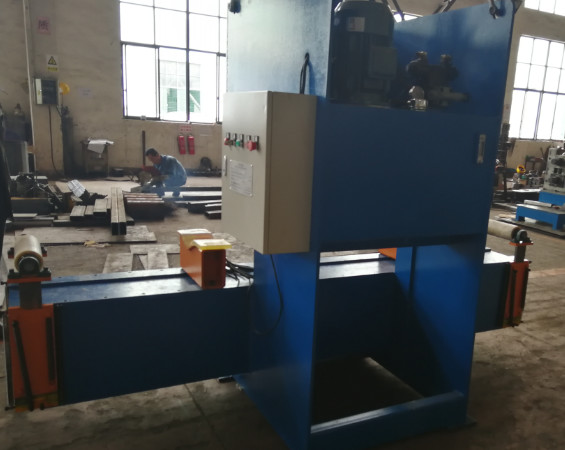

  • Hydraulic station, the machine is designed as a whole, which is convenient to move anywhere in the workshop



Technical parameter 主要技术参数



Name 项目 Unit 单位 Value 数值
Max. Pole diameter最大灯杆直径 mm 600
Min. Pole diameter最小灯杆直径 mm 58
Nominal working pressure标称工作压力 KN 630
Length of worktable 工作台长度 mm 5000
Distance between Housing 墙板间距 mm 900
Throat Depth 喉口深度 mm 310(Cylinder center to side frame,油缸中心到墙板)
Stroke油缸行程 mm 400
Max. Open Height 最大开启高度 mm 600
Main Motor (for Pump)电动机油泵

Rotate Speed

旋转速度

r/min 1440
Power功率 KW 7.5
Overall Dimensions外形尺寸 Length长 mm 4000
Width宽 mm 1260
Height高 mm 2230
Weight重量 Kg 3500
