CMC CE Guardrail 450mm Panel Roll Forming Machine

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: The whole body covered with plastic bag. or according to the customers requirements.
Delivery Time: According to the stocks
Payment Terms: T/T,L/C,D/P
Supply Ability: 50 Sets per month.

Detail Information

Name: Guardrail Panel Roll Forming Machine After-sales Service Provided: Free Spare Parts, Engineers Available To Service Machinery Overseas
Power(W): 22kw-1000kw Weight: 65KG
Showroom Location: None Brand Name: CMC
High Light:

450mm Guardrail Roll Forming Machine


22kw Panel Roll Forming Machine

Product Description


CMC CE 450 - 476mm Guardrail panel roll forming machine


I.Basic machine parameters

  1. Mechanical properties and specifications of raw materials
  • Material: Q345B galvanized sheet
  • Thickness: 2.5~3.0mm
  • Width: 450-476mm
  • Weight: 65KG
  • Specifications of products
  • Product: by product drawing
  • Product width: 310mm ± 5mm
  • Product height: 81mm ± 5mm
  • Product specifications
  • Forming method: Cold roll forming
  • Production speed: ≤10m / min
  • Feeding direction: left feed
  • Main voltage: 380V, 50Hz
  • Unit total power: about 20.7KW
  • Drive shaft bearing: 6026
  • Turbo lift: SWL10-3 / 23-FU3
  • Main drive motor: YVP180M-4-15
  • Reducer: ZQ500-48.57
  • Wallboard material: A3
  • Shaft material: 40
  • Mold material: Gcr15

II,Overview of equipment structure

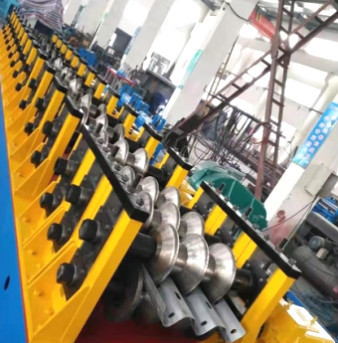

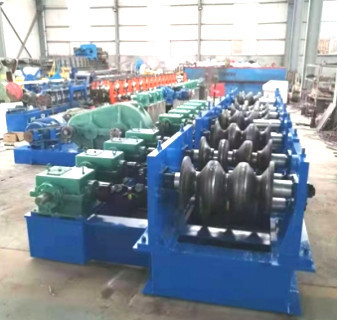

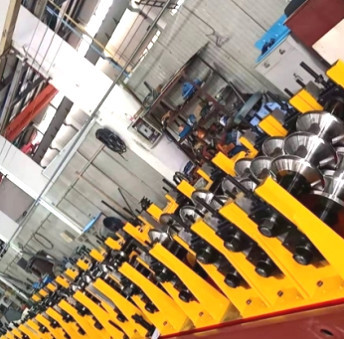

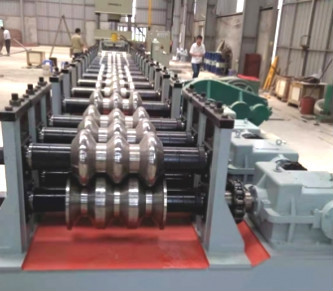

The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.


III,Equipment configuration checklist




Part Name





Forming mould


One set of molds on each side



15KW drive motor





Forming mold shaft





Turbo lift





Lifting drive motor





ZQ500 reducer





Electrical console





Equipment anchor bolt






IV.Payment terms and after-sale service:

1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 60 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
The buyer should pay the installation charges (USD 100 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
