Product Details:
|
Highlight: | light pole production line |
---|
Quick Detail:
Name | Other Name | Brand Name | CMC |

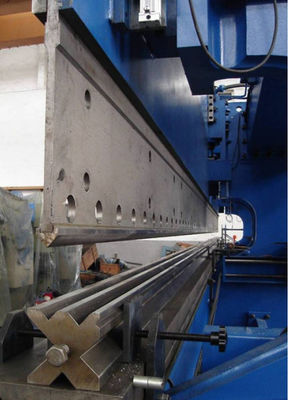

Single Rate Round/circle/conical light pole tooling for press brake machine to bend circle pole |
|
Feature | In one set of tooling, it can have one taper rate: 11/1100, full length 16 meters. in whole word, the 95% pole is 11/11000 rate |
Capacity | To make min OD 60mm | Advantages | With this conical tooling, the light pole is very round |
Application:

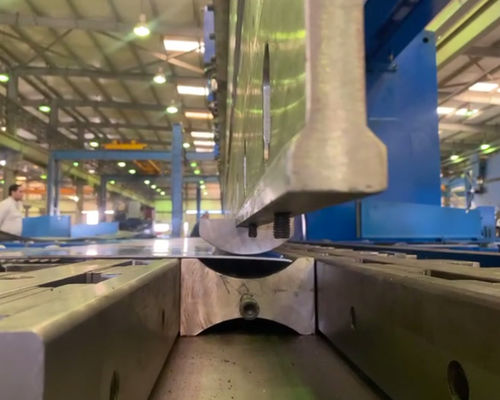

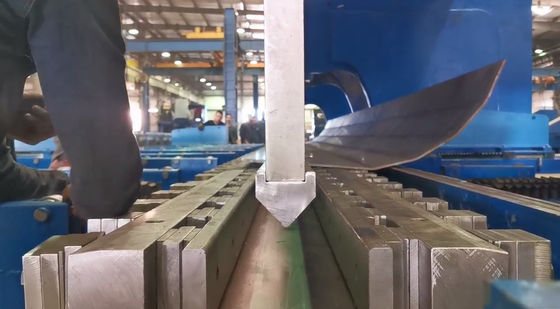

Making conical light pole on CNC press brake
Specifications

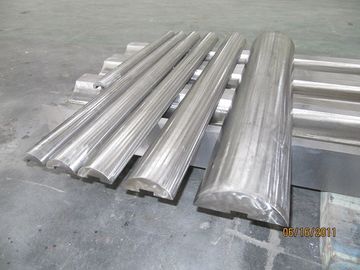

Conical light pole tool | ||||||||||||||||
For bottom tool,one side with taper rate 11/1000 | ||||||||||||||||
tool length | 16 | m | ||||||||||||||
taper rate: | 11 | /1000 | ||||||||||||||
small end OD: | 60 | mm | ||||||||||||||
Big end OD: | 236 | mm | ||||||||||||||
bascial thickness: | 4 | mm | ||||||||||||||
It can do the following size CONICAL CIRCULAR light pole. | ||||||||||||||||
Light pole length,small end outer diameter,big end outer diameter table | ||||||||||||||||
small end OD (mm) | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 | 210 |
pole length (m) | Big end outer diameter table (mm) | |||||||||||||||
2 | 82 | 92 | 102 | 112 | 122 | 132 | 142 | 152 | 162 | 172 | 182 | 192 | 202 | 212 | 222 | 232 |
3 | 93 | 103 | 113 | 123 | 133 | 143 | 153 | 163 | 173 | 183 | 193 | 203 | 213 | 223 | 233 | |
4 | 104 | 114 | 124 | 134 | 144 | 154 | 164 | 174 | 184 | 194 | 204 | 214 | 224 | 234 | ||
5 | 115 | 125 | 135 | 145 | 155 | 165 | 175 | 185 | 195 | 205 | 215 | 225 | 235 | |||
6 | 126 | 136 | 146 | 156 | 166 | 176 | 186 | 196 | 206 | 216 | 226 | 236 | ||||
7 | 137 | 147 | 157 | 167 | 177 | 187 | 197 | 207 | 217 | 227 | ||||||
8 | 148 | 158 | 168 | 178 | 188 | 198 | 208 | 218 | 228 | |||||||
9 | 159 | 169 | 179 | 189 | 199 | 209 | 219 | 229 | ||||||||
10 | 170 | 180 | 190 | 200 | 210 | 220 | 230 | |||||||||
11 | 181 | 191 | 201 | 211 | 221 | 231 | ||||||||||
12 | 192 | 202 | 212 | 222 | 232 |
