Double Hole Drilling machine for 40 ~ 120mm pipe

Product Details:
Place of Origin: Wuxi,China
Brand Name: CMC
Model Number: M10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Suitable for container shipping
Delivery Time: according to the machine requirment
Payment Terms: Down payment 30% T/T, 70% T/T before shipping
Supply Ability: According requirement

Detail Information

High Light:

light pole production line

Product Description

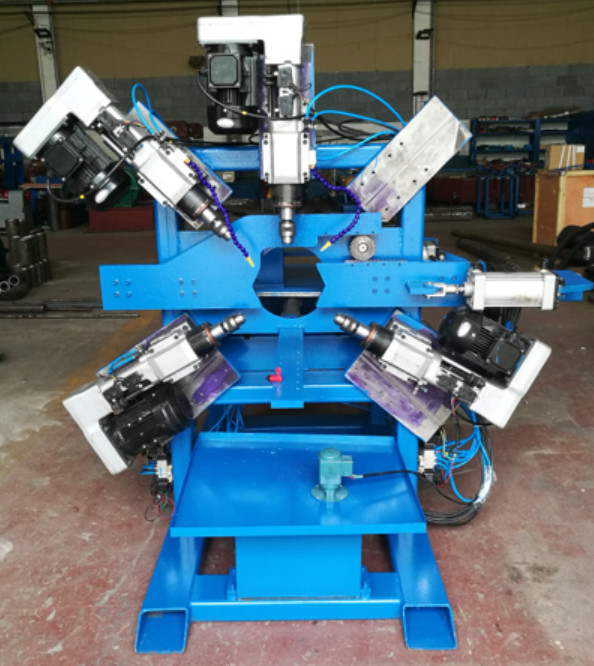

Double Hole Quick Drilling - Light Pole Machine To Drill Light Pole Head





Quick Detail:

Name Other Names Brand Name CMC
Double hole quick drilling machine-light pole machine

        ___



Feature Drilling one time can get two holes
Capacity

Pipe diameter: 40-120mm

Pipe thickness: 2-10mm

Max hole diameter: 12mm

Usage Industrial Street light pole industrial





Application:

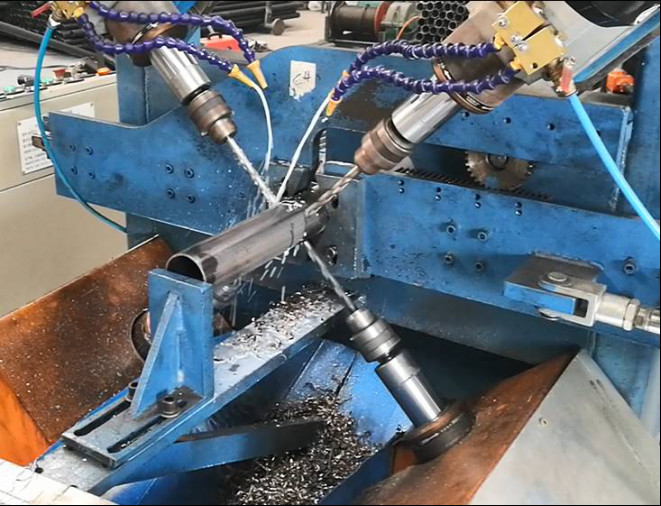

It is suitable for light pole top fixing hole quick drilling process.

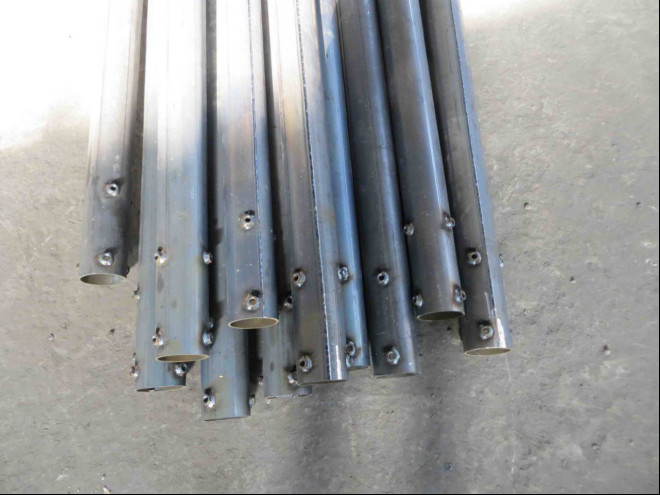

Once finish two holes. Then rotated the pole 90 degree, it can finish another 2 holes.

Pole is not moving, the machine is moving tape, easy to make fix hole for big length light pole.





Specifications

Technical indicators Technical parameters
Suitable for pipe diameter 40~120mm
Suitable for pipe thickness 2~10mm
Max. hole diameter 12mm
Drilling cutting feed stroke 0~30mm
Feed driving force 1200N
No loading rotation speed 1000rpm
Drilling motor 600W+600W
Air consumption for single head 3~6 L/stroke
Total power consumed 1.2KW
Power supply 380V,50Hz 3 phases,or according customer requirement
Overall dimension(L×W×H) 1500mm×800mm×700mm
Weight 100kg
