CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet

Certification
China Wuxi CMC Machinery Co.,Ltd certification
China Wuxi CMC Machinery Co.,Ltd certification
I'm Online Chat Now

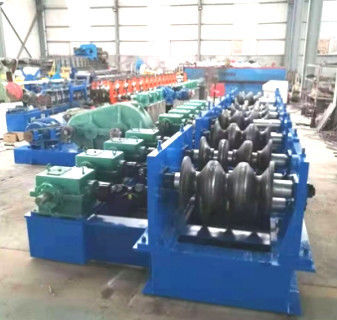

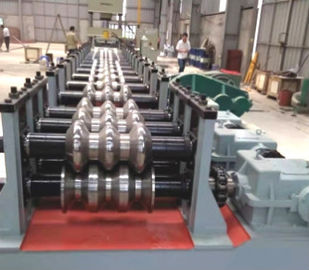

CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet

CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet
CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet
CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet

Large Image :  CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet

Product Details:
Place of Origin: wuxi, China
Brand Name: CMC
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: The whole body covered with plastic bag. or according to the customers requirements.
Delivery Time: According to the stocks
Payment Terms: T/T,L/C,D/P
Supply Ability: 50 Sets per month.

CE 476mm Guardrail Roll Forming Machine For 4mm Thickness Sheet

Description
Condition: New Place Of Origin:: Wuxi, China
Thickness: 2.5~3.0mm Width: 450-476mm
Applicable Industries: Construction Works Color: User Defined
High Light:

4mm Guardrail Roll Forming Machine

,

476mm guard rail forming machine





guardrail roll forming machine for 4mm thickness sheet





we are a professional manufacturer engaged in designing and producing all types of high precision, hight tech, professionally designed cold roll forming machines. Using advanced technology and incorporating COPRA design software, we are able to manufacture to international standards for our clients.







Machine

a. Thickness : 2.5--4mm (±0.2mm) , Width: 750mm±5mm,
b.Yield strength is 235Mpa, side bend less than 10mm( base on 5mm),
c.Coil Inner-diameter:φ508~φ600mm; Coil Inner-diameter: ≤φ1800mm,
d.Coil weight: ≤10T



I.Basic machine parameters

  1. Mechanical properties and specifications of raw materials
  2. Material: Q345B galvanized sheet
  3. Thickness: 2.5~3.0mm
  4. Width: 450-476mm
  5. Weight: 65KG
  6. Specifications of products
  7. Product: by product drawing
  8. Product width: 310mm ± 5mm
  9. Product height: 81mm ± 5mm
  10. Product specifications
  11. Forming method: Cold roll forming
  12. Production speed: ≤10m / min
  13. Feeding direction: left feed
  14. Main voltage: 380V, 50Hz
  15. Unit total power: about 20.7KW
  16. Drive shaft bearing: 6026
  17. Turbo lift: SWL10-3 / 23-FU3
  18. Main drive motor: YVP180M-4-15
  19. Reducer: ZQ500-48.57
  20. Wallboard material: A3
  21. Shaft material: 40
  22. Mold material: Gcr15





II,Overview of equipment structure



The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.







III,Equipment configuration checklist



No



Part Name



Quantity

1



Forming mould



One set of molds on each side

2



15KW drive motor



1Set

3



Forming mold shaft



3Sets

4



Turbo lift



3Sets

5



Lifting drive motor



1Set

6



ZQ500 reducer



1Set

7



Electrical console



1Set

8



Equipment anchor bolt



1Set
