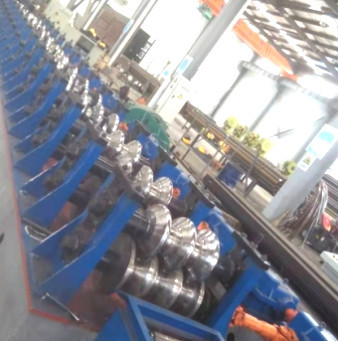

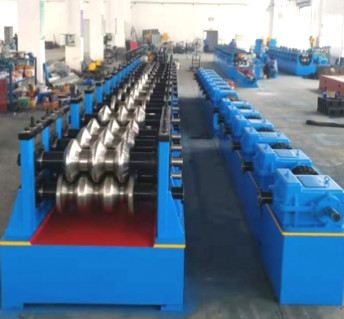

Three Waves 2.5mm Guardrail Roll Forming Machine

Product Details:
Place of Origin: wuxi
Brand Name: CMC
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiate
Packaging Details: Nude
Delivery Time: According to the requirements
Supply Ability: According to the actual situation

Detail Information

Tile Type: Steel Use: Steel Construction
Condition: New Weight: 65KG
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 12 Months
High Light:

2.5mm Guardrail Roll Former


10m / min Guardrail Roll Forming Machine

Product Description

It can be customized if you need to modify the format.

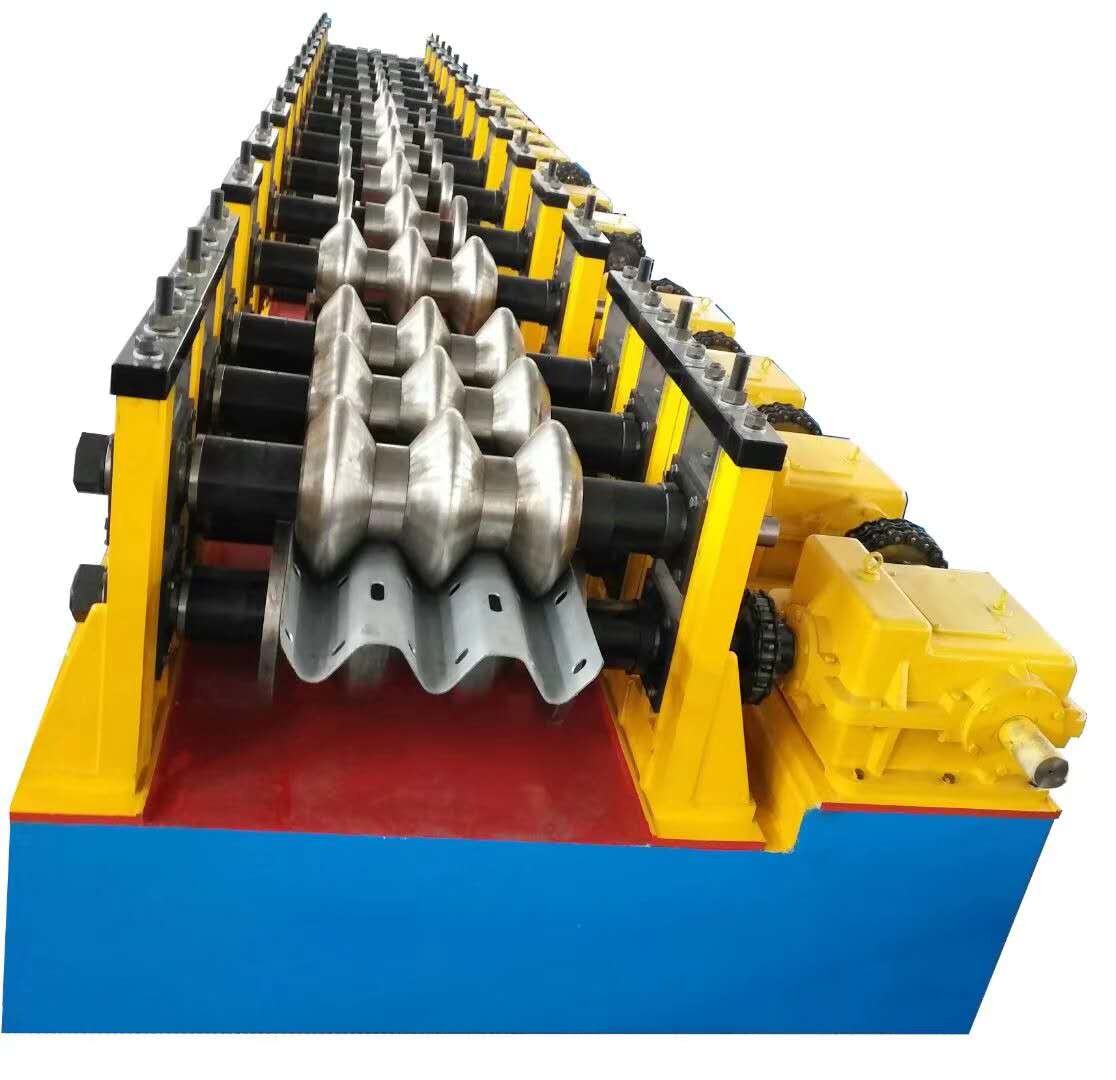

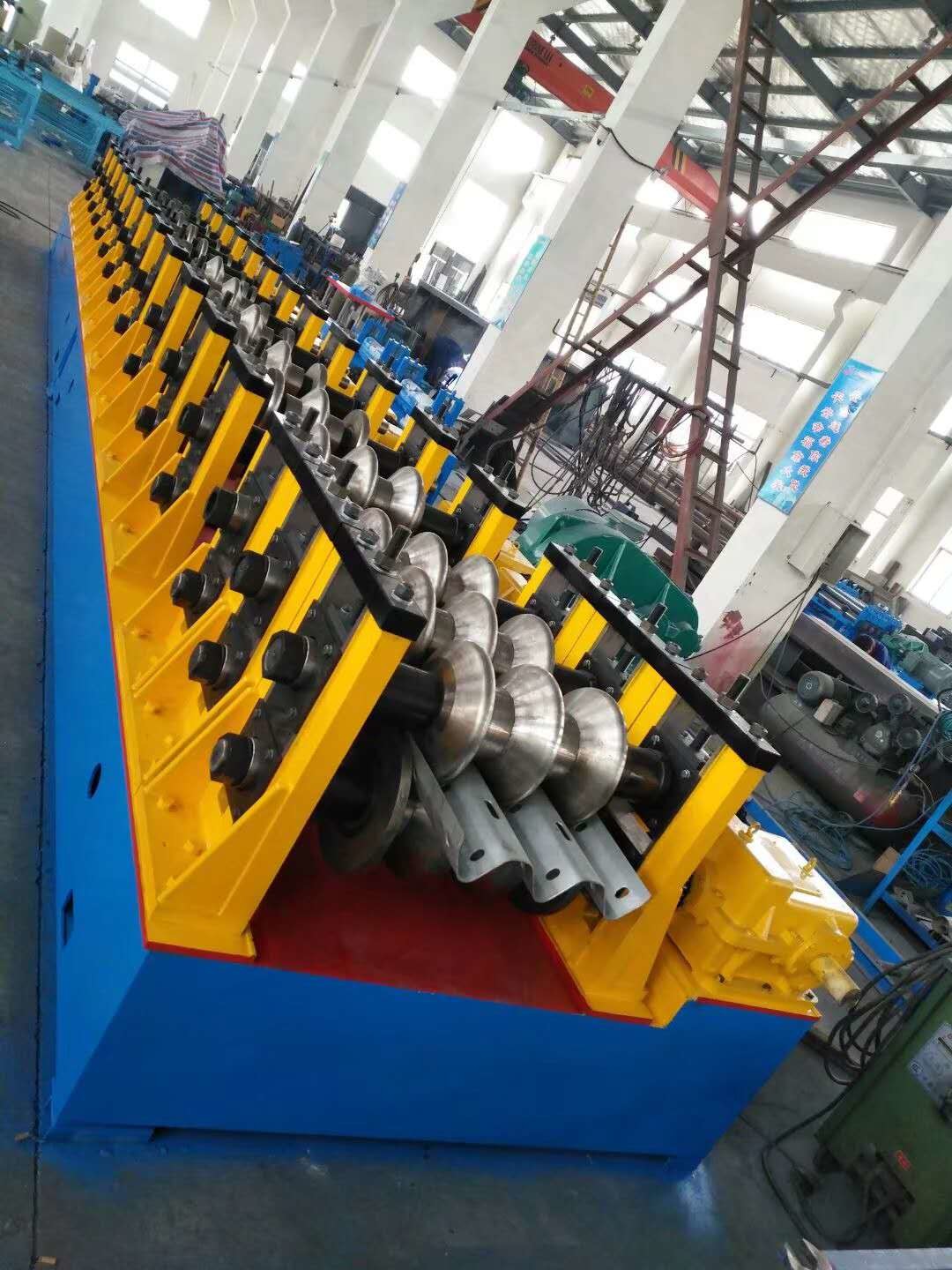

Three waves Guardrail Roller Forming machine


I.Basic machine parameters

  1. Mechanical properties and specifications of raw materials
  2. Material: Q345B galvanized sheet
  3. Thickness: 2.5~3.0mm
  4. Width: 450-476mm
  5. Weight: 65KG
  6. Specifications of products
  7. Product: by product drawing
  8. Product width: 310mm ± 5mm
  9. Product height: 81mm ± 5mm
  10. Product specifications
  11. Forming method: Cold roll forming
  12. Production speed: ≤10m / min
  13. Feeding direction: left feed
  14. Main voltage: 380V, 50Hz
  15. Unit total power: about 20.7KW
  16. Drive shaft bearing: 6026
  17. Turbo lift: SWL10-3 / 23-FU3
  18. Main drive motor: YVP180M-4-15
  19. Reducer: ZQ500-48.57
  20. Wallboard material: A3
  21. Shaft material: 40
  22. Mold material: Gcr15


II.Overview of equipment structure

The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.


III.Equipment configuration checklist




Part Name





Forming mould


One set of molds on each side



15KW drive motor





Forming mold shaft





Turbo lift





Lifting drive motor





ZQ500 reducer





Electrical console





Equipment anchor bolt
