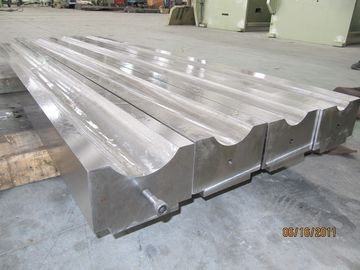

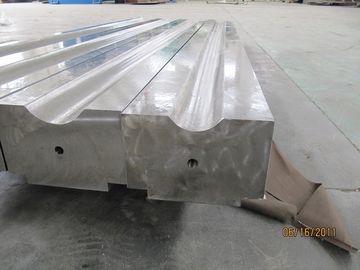

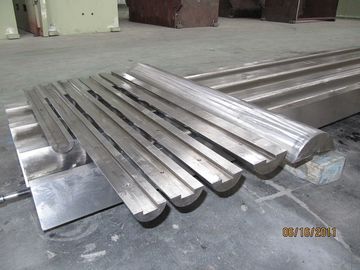

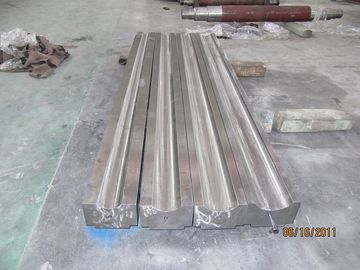

Press brake machine tooling / die for conical light pole OD 60mm

Product Details:
Place of Origin: wuxi -china
Brand Name: cmc
Model Number: double rate tooling 11/1000&12.5/1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: metal or wood case
Delivery Time: 50-60 days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate

Detail Information

High Light:

light pole production line

Product Description



Round / Circle / Conical Light Pole Tooling For Press Brake Machine To Bend Circle Pole - Double Rate







Quick Detail:


Name Other Name Brand Name CMC
Round/circle/conical light pole tooling for press brake machine to bend circle pole


Light pole tooling
Light pole punch
Light pole die
Press brake machine tooling
Press brake machine punch
Press brake machine die

Feature In one set of tooling, it can have two taper rates: 11/1100 and 12.5/1000, full length 16 meters. in whole word, the 95% pole is 11/11000 rate, 5% is 12.5/1100
Capacity To make min OD 60mm Advantages With this conical tooling, the light pole is very round








Application:


Making conical light pole on CNC press brake





Specifications




Conical light pole tool
For bottom tool,one side with taper rate 11/1000
  tool length 16 m
  taper rate: 11 /1000
  small end OD: 60 mm
  Big end OD: 236 mm
  bascial thickness: 4 mm
It can do the following size CONICAL CIRCULAR light pole.
Light pole length,small end outer diameter,big end outer diameter table
small end OD (mm) 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210
pole length (m) Big end outer diameter table (mm)
2 82 92 102 112 122 132 142 152 162 172 182 192 202 212 222 232
3 93 103 113 123 133 143 153 163 173 183 193 203 213 223 233
4 104 114 124 134 144 154 164 174 184 194 204 214 224 234
5 115 125 135 145 155 165 175 185 195 205 215 225 235
6 126 136 146 156 166 176 186 196 206 216 226 236
7 137 147 157 167 177 187 197 207 217 227
8 148 158 168 178 188 198 208 218 228
9 159 169 179 189 199 209 219 229
10 170 180 190 200 210 220 230
11 181 191 201 211 221 231
12 192 202 212 222 232




Conical light pole tool
For bottom tool,one side with taper rate 12.5/1000
  tool length 16 m
  taper rate: 12.5 /1000
  small end OD: 60 mm
  Big end OD: 260 mm
  bascial thickness: 4 mm
It can do the following size CONICAL CIRCULAR light pole.
Light pole length,small end outer diameter,big end outer diameter table
small end OD (mm) 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210
pole length (m) Big end outer diameter table (mm)
2 85 95 105 115 125 135 145 155 165 175 185 195 205 215 225 235
3 98 108 117.5 128 138 148 158 168 178 188 198 208 218 228 238 248
4 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260
5 123 133 142.5 153 163 173 183 193 203 213 223 233 243 253
6 135 145 155 165 175 185 195 205 215 225 235 245 255
7 148 158 167.5 178 188 198 208 218 228 238 248 258
8 160 170 180 190 200 210 220 230 240 250 260
9 173 183 192.5 203 213 223 233 243 253
10 185 195 205 215 225 235 245 255
11 198 208 217.5 228 238 248 258
12 210 220 230 240 250 260
