2 Waves And 3 Waves 8m / Min Guard Rail Roll Forming Machine

Product Details:
Place of Origin: wuxi,China
Brand Name: CMC
Certification: CE, ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: The whole body covered with plastic bag. or according to the customers requirements.
Delivery Time: According to the stocks
Payment Terms: T/T,L/C
Supply Ability: 50 Sets per month.

Detail Information

Tile Type:: Steel Place Of Origin:: Wuxi,China
Production Capacity:: 8-12m/min Condition:: New
Usage:: Construction Beam Dimension(L*W*H):: 12800mm*1.55mm*1.3mm
High Light:

8m / Min Guard Rail Forming Machine

,

748mm Guardrail Roll Forming Machine

Product Description

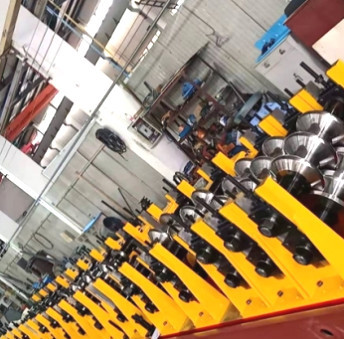

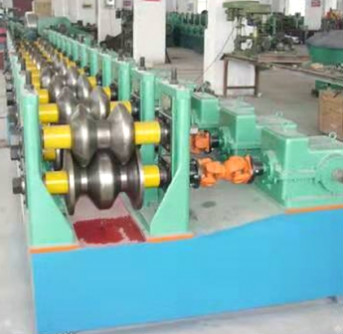

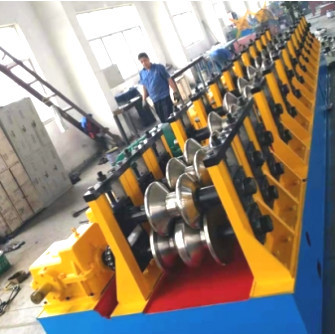

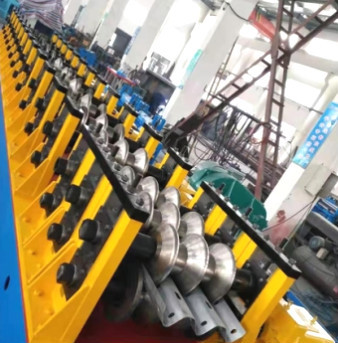

2 waves and 3 waves guardrail roll forming machine







We provide shipping service for Two waves Cold Rolled highway guardrail roll Forming Machine

1. Machines need one 20/40 feet container to load .

2.We have professional technicians for loading to make sure machine has no damage.

3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.





I.Specification



Item: Specification: Notes:
1.Information of raw material Suitable material: Galvanized coil
Width: 748mm
Thickness: 2.5-3.5mm
Yield strength: Q235A HR
2.Production specification Detailed as the file
3.Power requirement: Main power: 22kw two sets

With inventor

(normal standard)

Cutter power:

15.5kw(pressure:25mpa)

3 pcs cutter

Speed of machine: 10-15meters/min



5.Hydraulic de-coiler:

Loading: 5tons Main power:3kw
Inner diameter 508mm
Type: Automatic type











6.Machine specification:

Structure: 400I beam



Transform method : Gearbox with shaft

Roll stations:

20 roll stations

(with 6pcs rollers for leveling diameter:80mm)

Splint thickness: 22mm
Diameter of shaft: 110mm,
Material of shaft: Forged 45# steel
Type of cutting: Saw cutting
Material of roller:

CR12 with heat treatment:

HRC58-62

Sizes of machine: 15.5*1.0*1.5meters
Material of punching mold: Cr12,hydraulic pre-punching
Sizes of chain:

2.0inch





II.Our Services

We provide superior service for Two waves Cold Rolled highway guardrail roll Forming Machine



1.Payment Term: 30% paid by T/T as down payment, the rest 70% after inspection by buyer in seller’s factory while before delivery. After finished production, we will inspect the machine and inform the buyer, the buyer send person to inspect goods, then payoff the whole payment before shipping.

2.Delivery Time: We guarantees the equipment will be ready for shipment within 30 working days after receipt of deposit .

3.After sale Service: We could send technician to your country to install machine if you need. The buyer need to pay for extra cost, including: visa, round trip tickets, accommodation, salary of USD 100~120 per day.





equipment structure diagram:











III.Basic machine parameters

  1. Mechanical properties and specifications of raw materials

Material: Q345B galvanized sheet

Thickness: 2.5~3.0mm

Width: 450-476mm

Weight: 65KG

Specifications of products

Product: by product drawing

Product width: 310mm ± 5mm

Product height: 81mm ± 5mm

Product specifications

Forming method: Cold roll forming

Production speed: ≤10m / min

Feeding direction: left feed

Main voltage: 380V, 50Hz

Unit total power: about 20.7KW

Drive shaft bearing: 6026

Turbo lift: SWL10-3 / 23-FU3

Main drive motor: YVP180M-4-15

Reducer: ZQ500-48.57

Wallboard material: A3

Shaft material: 40

Mold material: Gcr15



IV,Overview of equipment structure

The equipment frame is processed by A3 steel plate, after aging treatment, 3-roller structure, 1 upper and 2 lower, the lower roller adopts a fixed structure, the upper roller adopts slider movement adjustment, and 3 sets of turbine box drive are driven by the motor to adjust the upper and lower The turbine box is connected by a connecting rod to ensure the synchronization of 3 sets of boxes, and the 3 independent wall plates are connected by a shaft to ensure the parallelism of the whole machine. The diameter of the roller shaft is 110mm. There are two sets of molds on the left and right, one for the inner arc and one for the outer arc, and a set of 15KW main motor. It is driven by a ZQ500 reducer, which drives the left and right lower shafts through gears.The gear module is 10m, one for each left and right.The product is processed through the operation console.



V,Equipment configuration checklist



No



Part Name



Quantity

1



Forming mould



One set of molds on each side

2



15KW drive motor



1Set

3



Forming mold shaft



3Sets

4



Turbo lift



3Sets

5



Lifting drive motor



1Set

6



ZQ500 reducer



1Set

7



Electrical console



1Set

8



Equipment anchor bolt



1Set
