Name: Double Arc Multi-Wire Submerged Arc CNC Pole Shut Welding Machine For 14m Diameter 1.9m Steel Pole
Brand: Wuxi CMC Machinery Co.,Ltd
SKU: HM1900
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Equipment Model: HM1900/14000 CNC Pole Shut-Welding Machine

Diameter Range: 400mm ~ 1900mm

Maximum Processing Pole Length: 14000mm

Applicable Steel Plate Thickness: 5~20mm, Max Clamping Bearing Thickness 25mm

Welding Technology: Double Arc Three-Wire Submerged Arc Welding

Clamping Structure: 3 Sets Hydraulic Synchronous Clamping Rollers

Applicable Pole Type: Conical / Octagonal / Multi-sided Polygonal Steel Pole

Paint Color: Customizable

Basic Infomation

Place of Origin: WUXI, CHINA

Brand Name: CMC

Model Number: HM1900

Payment & Shipping Terms

Delivery Time: 90days

Payment Terms: T/T,L/C

Supply Ability: According to requirements

Gallery

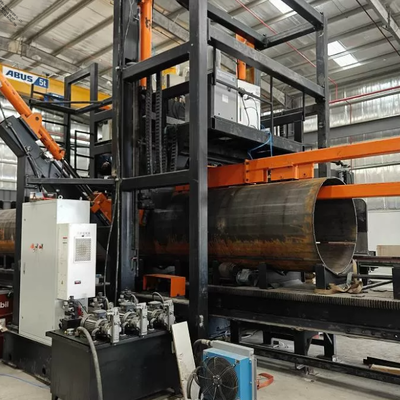

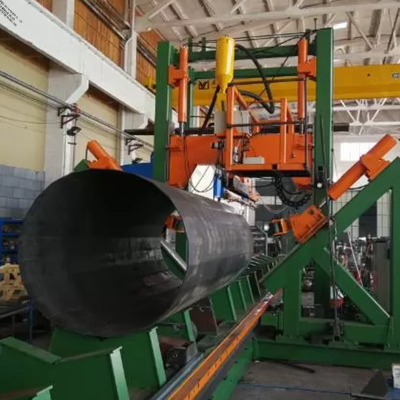

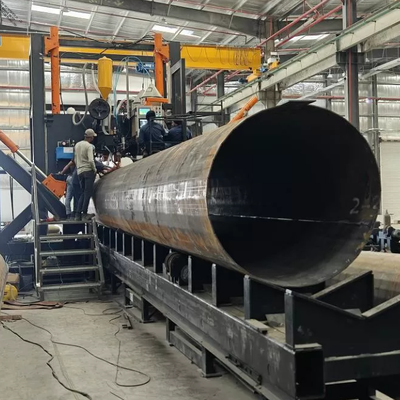

Double Arc Multi-Wire Submerged Arc CNC Pole Shut Welding Machine For 14m Diameter 1.9m Steel Pole

Product Description

Double Arc Multi-Wire Submerged Arc CNC Pole Shut Welding Machine For 14m Diameter 1.9m Steel Pole

Product Overview

HM1900/14000 CNC Pole Shut-Welding Machine is an automatic longitudinal seam submerged arc welder specifically designed for conical octagonal 5G communication poles and high mast poles.

Item	Details
Product Name	CNC Pole Shut-Welding Machine
Model	HM1900/14000
Application	5G communication pole, power monopole, high mast light pole
Processed Pole Shape	Round conical pole, octagonal & multi-sided polygonal pole (1/2/3 shell structure)
Welding Technology	Double arc multi-wire submerged arc welding
Max Pole Length	14000 mm
Customizable Options	Remote online diagnosis system, insulated & air-conditioned electrical cabinet, spare parts package

Product Introduction

HM1900/14000 CNC pole shut-welding machine is specially developed for longitudinal closing seam automatic welding of long tapered poles, including 5G communication poles, power monopoles and high mast poles. It is applicable for one-piece, two-piece or three-piece conical round and polygonal poles.

The equipment adopts gantry fixed structure matched with welding system, servo-driven adjustable-speed V-shaped trolley for pole transportation. Hydraulic clamping rollers close the pole seam while welding proceeds simultaneously. For two-segment two-seam poles, after finishing the first welding seam, lifting rollers jack up and rotate the pole automatically to position for secondary seam welding.

Main Technical Parameters

No.	Item	Specification
1	Applicable Pole Outer Diameter	400 ~ 1900 mm
2	Maximum Processing Pole Length	14000 mm
3	Applicable Plate Thickness	5 ~ 20 mm, material Q235, Q355, Gr65 (Max bearing thickness 25mm, refer to note above)
4	Quantity of Clamping Roller Sets	3 sets
5	Hydraulic Pump Motor Power	2.2+2.2+3 KW
6	Servo Motor Power for V-type Trolley	7 KW, stepless adjustable speed
7	Vertical Pressing Stroke	1600 mm
8	Working Height (Pole bottom to ground)	800 mm
9	Welding System	Double arc three-wire submerged arc welding power unit DC power: 250~1250A; AC power:250~1250A
10	Welding Wire Specification	Single wire Φ4.0mm / Twin wire 2*Φ1.6mm
11	Welding Travel Speed	0.3 ~ 1.5 m/min, stepless adjustable
12	Welding Direction	Weld from large diameter end towards small diameter end
13	Welding Standard	Achieve single-side welding double-side formation under standard process
14	Total Machine Weight	23 Ton
15	Overall Dimension (LWH)	31000 * 6600 * 6100 mm

Complete Machine Composition

Servo driven V-type worktable (transport trolley)
Front & rear rails for V-type trolley
Main heavy-duty gantry frame
Drive system for V-shaped worktable
Hydraulic clamping unit with 3 sets of clamping rollers
Submerged arc welding system & automatic wire feeding device
Flux recovery recycling system
Water-cooled inner copper backing block system
Operation platform
2 sets of pole rotation roller racks
Complete hydraulic system
Integrated CNC & PLC control system

Core Advantages

Advantage Item	Detailed Description
Intelligent CNC Automatic Adjustment	The CNC system automatically adjusts clamping pressure, roller position and trolley speed following pole diameter change, continuously keeps seam closed during welding
Excellent Synchronous Hydraulic Control	Optimized hydraulic & control system guarantees high synchronization for left, right and middle clamping rollers
Low Pole Deformation After Welding	No torsion on finished welding seam. No manual prying and seam alignment required at machine outlet if upstream forming process meets specification
Stable Head-to-Tail Welding	Servo-controlled V-shaped trolley realizes continuous welding from pole head to tail, reduces unwelded tail segment length
Triple Roller Clamping Design	Three groups of pressing rollers disperse surface pressure, reduce indentation and scratches on pole surface; suitable for round, octagonal and tapered poles
Fast Automatic Trolley Return	Motorized quick return function for V-type trolley, reduce operator labor intensity
Adaptive Rear Seam Guide Device	Self-adjustable guiding structure, rarely manual calibration required during continuous production
Visual Weld Monitoring	Camera installed on welding head transmits seam image to main control screen for easy seam tracking and observation
Water-cooled Inner Copper Backing Block	Greatly improve welding penetration and guarantee consistent weld formation
Automatic Rotation for Double-Seam Poles	Built-in lifting roller mechanism to rotate two-seam pole automatically for secondary welding
Simple Operation	Only 1 operator required for whole production cycle
Optional Upgrade Configurations	Remote fault diagnosis & parameter adjustment network system; insulated air-condition electrical cabinet; spare parts package

Application Scope

5G tapered communication monopole longitudinal seam welding
Highway & power transmission steel monopole manufacturing
High mast lighting pole, octagonal multi-sided lamp pole production
Steel structure tapered tubular component closing seam welding

After-Sales Service Support

Service Item	Service Details
Warranty Period	12 months full machine warranty; long-term warranty for main servo motors, welding power source and CNC controller
Spare Parts Supply	Long-term supply of wearing spare parts at factory cost
Overseas Technical Service	Professional engineers available for overseas installation, commissioning and operator training
Remote Technical Support	Online remote debugging, parameter optimization and fault troubleshooting
Technical Documents	Complete English operation manual, welding process guide and training videos

Frequently Asked Questions

Question	Standard Answer
What types of poles can HM1900/14000 welding machine process?	It is suitable for 14m long round tapered pole, octagonal and multi-sided polygonal poles (1/2/3 shell structure). Processing diameter range 400~1900mm, applicable thickness 5~20mm.
Does this machine support automatic welding for two-seam octagonal poles?	Yes. After completing the first welding seam, the lifting roller rack will jack up and rotate the pole automatically to realize the second seam welding without reloading.
Is extra surfacing welding needed for plates over 20mm thickness?	The machine clamping force supports material up to 25mm. But for workpieces requiring high penetration within 20~25mm, molten steel filling may be insufficient. We suggest adding submerged arc surfacing welding after primary welding.
