CNC Double Linkage Bending Machine For 14m Tapered Octagonal Street Light Pole

1 set
MOQ
negotiation
Price
CNC Double Linkage Bending Machine For 14m Tapered Octagonal Street Light Pole
Features Gallery Product Description Request A Quote
Features
Specifications
Single Unit Bending Tonage: 400 Ton, Total Tandem 800 Ton
Single Worktable Processing Length: 7000mm, Total Linked Length 14000mm
Equipped CNC Controller Model: Delem DA53T (Netherlands)
Main Drive Motor Power Configuration: 2×30kW Dual Pump Motor
Applicable Processing Workpiece: Tapered / Octagonal Street Light Pole & High Mast Pole
Supporting Forming Mold Type: 7 Times Forming Double Taper Conical Mold
Surface Color: Customizable
Direction: Customizable
Basic Infomation
Place of Origin: WUXI,CHINA
Brand Name: CMC
Model Number: 2-WE67K-400/7000
Payment & Shipping Terms
Packaging Details: Suitable for container shipping
Delivery Time: 90 days
Payment Terms: T/T,L/C
Supply Ability: According to requirements
Product Description
1. Quick Overview Table
Item Details
Product Name CNC Tandem Hydraulic Press Brake / Double Linkage Light Pole Bending Machine
Model 2-WE67K-400/7000
Core Application Bend street light poles, octagonal poles, tapered conical poles and highway high mast poles
Origin Jiangsu, China
MOQ 1 Set
Standard Voltage 380V 50Hz, Customizable
Target Customer Light pole manufacturing factory, steel monopole production line
Main Configuration Delem DA53T CNC System,  Schneider Electric Parts
2. Product Introduction

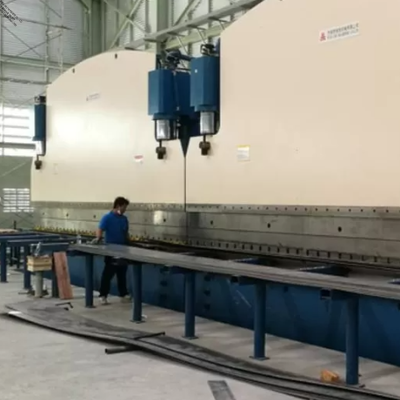

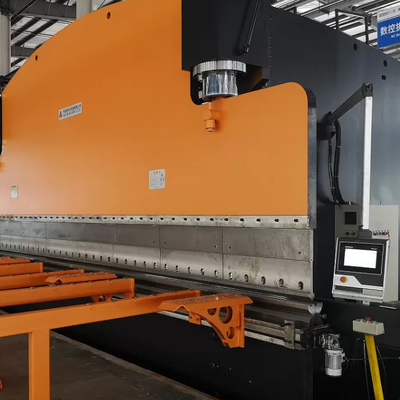

2-WE67K-400/7000 double linkage CNC tandem hydraulic press brake consists of two 400-ton single bending machines working synchronously, total effective bending length reaches 14 meters, specially customized for long-size tapered street light poles, octagonal poles and large high mast poles. Equipped with Netherlands Delem DA53T CNC controller with Y1/Y2 axis control and mechanical table crowning compensation system. main electrical parts French Schneider, all world-famous brand accessories guarantee stable long-term operation. Support multiple customized light pole bending molds, side unloading system, automatic plate feeding bending line and remote fault diagnosis function, full set solution for lamp pole production.

3. Full Technical Parameters Table
No. Item Unit Parameter Value
1 Machine Type - Multi-machine Tandem Electro-hydraulic Synchronous CNC Press Brake
2 Nominal Working Force Ton 2×400
3 Single Worktable Length mm 7000, Total Linkage Length 14000
4 Distance Between Two Frames mm 5600
5 Throat Depth mm 950
6 Max Opening Height mm 970
7 Ram Stroke mm 320
8.1 Rapid Down Speed mm/s 60
8.2 Working Bending Speed mm/s 7
8.3 Return Speed mm/s 60
9 Main Pump Motor Power kW 2×30
10 CNC Controller - Delem DA53T (Netherlands), Y1/Y2 Axis + Mechanical Crowning System
11 Table Compensation - Mechanical Crowning System
12 Cylinder Seal Brand - famous brand
13 Hydraulic Valve Brand -  famous brand Germany
14 Hydraulic Pump Brand -  USA Brand
15 Linear Encoder Brand - FAGAR, Spain
16 Main Electrical Components - Schneider, France
17 Single Machine Net Weight kg 50000, Total 100000kg
18.1 Single Machine Overall Dimension L×W×H mm 7200×2710×5696
18.2 Floor Height Above Ground mm 4500
18.3 Total Length With Side Unloading Device mm 17500
18.4 Total Width With Front Material Support mm 4040
19 Export Packing Way - Disassembled split packing for sea transportation
4. Standard & Optional Toolings & Accessories List
Category Details
with 1 set 18mm thick upper tool holder for street light pole, total mold length 14m
Option 1 Octagonal light pole dedicated mold, min OD 60mm tapered octagonal mold, 14m length
Option 2 Multi-V bottom die set for octagonal poles & high mast poles, specification 150×150, 14m length
Option 3 7-times forming double taper conical pole mold
Taper ratio:11/1000(Φ60~236) & 13/1000(Φ60~268)
Applicable pole wall thickness:3~4mm, sectional split structure, total mold length 16m

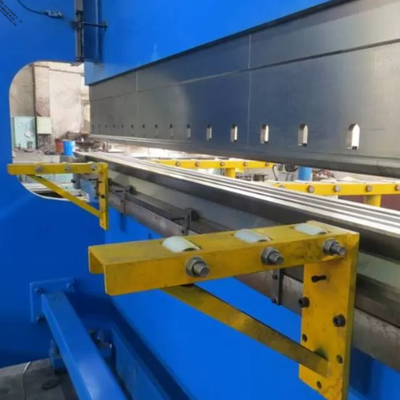

Standard Auxiliary 2 sets 6.5m conical upper mold supports for both sides of upper holder
Option 5 Pushing-type light pole side unloading system
Option 6 Remote fault diagnosis & remote parameter adjustment function

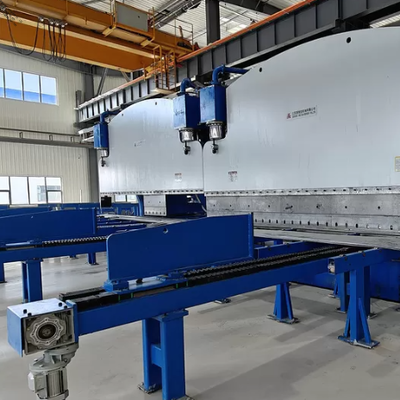

Option 7 Full automatic light pole bending production system
Including plate trolley, loading crane, lateral roller rack, CNC feeding system, positioning device, extended unloading rack & finished pole storage frame
Option 8 Complete set of spare parts for 400ton press brake
5. Core Performance Advantages Table
Performance Point Detailed Advantage Description
Dual Y Axis Synchronous Control Linear grating rulers installed on both sides of ram to real-time feedback position signal, accurate control of two hydraulic cylinders
High Rigid Integral Frame Welded structure composed of oil tank, worktable, side housings and ram, strong load-bearing & anti-deformation capacity
Electro-hydraulic Proportional Synchronization System Adopt German proportional valve, stable response, tiny mechanical friction, continuous stable output force
Independent Grating Installation Design Raster sensors fixed on C-shaped bracket instead of side frame, measuring data will not be affected by frame deflection during bending
Double Machine Linkage Synchronous Control Switch to tandem mode on main machine panel, Delem CNC unifies two machine signals, precisely control fast down, speed shift, bending & return speed for synchronous linkage
Intelligent Delem CNC System Multi-language operation interface, auto calculate bending tonnage, dead point & speed change position; support ram tiny tilt for special bending requirements
Complete Auxiliary Guiding & Balancing System Match long workpiece & eccentric bending processing demands, guarantee uniform bending precision along full plate length
Mechanical Table Crowning Compensation Automatically offset worktable deflection under heavy load, ensure consistent forming precision of finished poles
Wear-resistant Hydraulic Cylinder Surface quenching heat treatment, good lubricity, long service life & low failure rate
6. Application Matching Table
Workpiece Type Processing Purpose
Tapered street light pole Long plate bending, one-step forming for 14m poles
Octagonal lamp pole Special octagonal mold forming, uniform angle precision
Highway high mast pole Heavy load linkage bending for thick wall large-size poles
Conical monopole / 5G communication pole Double taper 7-pass forming mold matching
7. After-Sales Service Support Table
Service Item Specific Content
Warranty Period 12 months full machine warranty; 24 months for hydraulic valve, pump, motor and CNC system
Spare Parts Supply Long-term supply of original vulnerable spare parts at factory cost
Oversea Service Engineers available for overseas installation, commissioning and operator training
Online Support 24/7 video & remote online diagnosis support (optional function pre-installed)
Attached Documents Full English operation manual, bending parameter tutorial and operation video
8. FAQ

Question Answer
1. What is the maximum bending length this tandem press brake can process? Two 7000mm machines work synchronously, the total effective bending length reaches 14 meters, perfectly fit long street light poles and high mast poles.
2. What brand core parts does this bending machine adopt? Main CNC system is Netherlands Delem DA53T, linear encoder Spain FAGAR, electric parts France Schneider, all world-famous top brands.
3. Can this machine form tapered & octagonal light poles? Yes, we supply matched sectional split molds for octagonal poles and double-taper 7-times forming conical poles, wall thickness range 3–4mm for lamp pole production.
