Home /Products/CNC Hydraulic Press Brake/CNC Tandem Hydraulic Press Brake with 2X1200Ton Working Force and 2X6250mm Table Length for Long Service Life

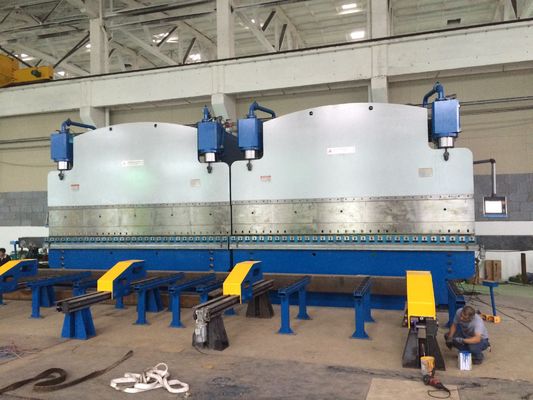

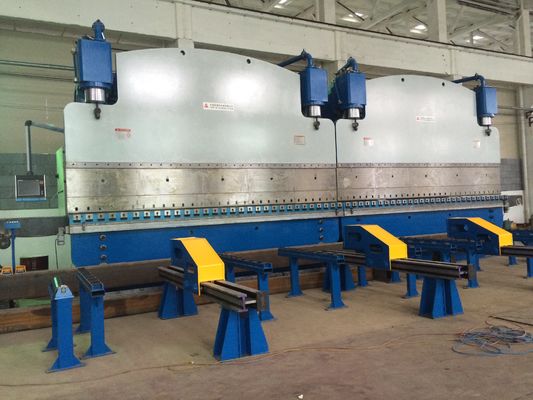

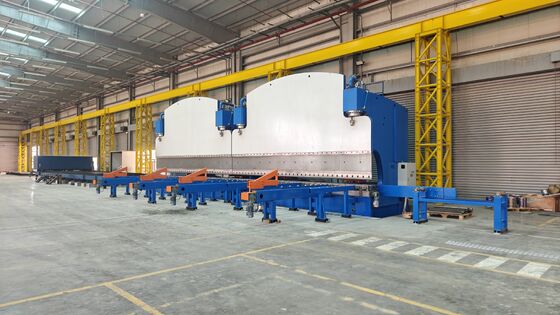

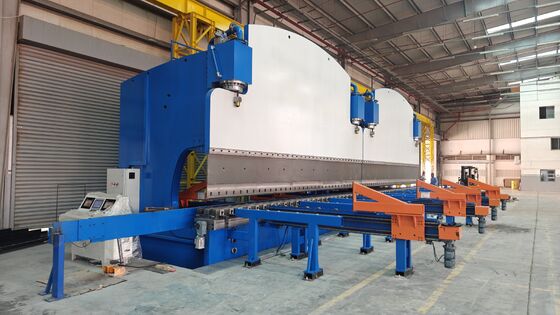

CNC Tandem Hydraulic Press Brake with 2X1200Ton Working Force and 2X6250mm Table Length for Long Service Life

1 set
MOQ
Negotiable
Price
CNC Tandem Hydraulic Press Brake with 2X1200Ton Working Force and 2X6250mm Table Length for Long Service Life
Features Gallery Product Description Request A Quote
Features
Specifications
Key Selling Points: Long Service Life
Ram Stroke: 150mm
OEM: Acceptable
Highlight:

1200 Hydraulic Press Brake

,

CNC Tandem Hydraulic Press Brake

,

6250 Hydraulic Press Brake
Basic Infomation
Place of Origin: Wuxi, China
Brand Name: CMC
Payment & Shipping Terms
Packaging Details: Suitable for container shipment, both marine and inland transportation
Delivery Time: 90 days
Payment Terms: L/C,T/T
Supply Ability: According to requirement
Product Description
CNC Tandem Hydraulic Press Brake Model 2-WE67k-1200/6250
Designed for manufacturing monopole transmission tubular towers and high mast structures with precision and efficiency.
Technical Specifications
Feature Specification
Type Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
Working Force 2X1200 Ton
Length of Table 2X6250 mm
Distance Between Frames 4800 mm
Throat Depth 1600 mm
Open Height 1550 mm
Stroke 450 mm
Working Speed Unload: 70mm/s | Working: 7mm/s | Return: 65mm/s
Main Motor 2x2x45 Kw
Control System & Components
CNC System: DELEM DA53T (Delem Co., Netherlands) - 2 Axis (Y1,Y2) + 1 Axis bottom die table crowning system
Linear Raster Display Sensor: Fagur, Spain
Hydraulic Components: Germany
Hydraulic Pump: Suuny, USA
Cylinder Seals: SKF type
Main Electric Elements: Schneider
Tooling Configuration
  • 1 set of punch holder
  • 1 set of upper punch
  • 1 set of adjustable type bottom die
Physical Dimensions & Weight
Weight: 2x145,000 Kg
Profile Dimension: 2-6450x4600x6800 mm (With front and back feeding system, width: 8800mm)
Shipping & Installation
The machine is disassembled for transportation. Our engineering team provides on-site assembly and debugging services at customer location.
Included Accessories
Motorized front feeding system: 1 set (4 units)
Motorized back feeding system: 1 set (4 units)
Major Components for Shipping
Side Frame: 32 ton, 5965x4380x730 mm
Table Vertical Plate: 12.7 ton, 6200x220x160 mm
Ram Single Piece: 17.1 ton, 6250x2800x505 mm
