CNC Tandem Hydraulic Press Brake Model 2-WE67k-1200/6250 For Making Monopole Transmission Tubular Tower And High Mast

1 set
MOQ
negotiable
Price
CNC Tandem Hydraulic Press Brake Model 2-WE67k-1200/6250 For Making Monopole Transmission Tubular Tower And High Mast
Features Gallery Product Description Request A Quote
Features
Specifications
Key Selling Points: Long Service Life
Ram Stroke: 150mm
Oem: Acceptable
Highlight:

1200 Hydraulic Press Brake

,

CNC Tandem Hydraulic Press Brake

,

6250 Hydraulic Press Brake
Basic Infomation
Place of Origin: WUXI, CHINA
Brand Name: CMC
Payment & Shipping Terms
Packaging Details: Suitable for container shipment, both marine and inland transportation
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: According to requirement
Product Description

CNC TANDEM HYDRAULIC PRESS BRAKE MODEL : 2-WE67K-1200/6250

Application: making monopole, transmission tubular tower and high mast



TECHNICAL FEATURES
1 Type Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2 Working force 2X1200Ton
3 Length of table 2X6250mm
4 distance between frames 4800mm
5 Throat depth 1600mm
6 Open height 1550mm
7 Stroke 450mm



8

Working

Speed

 Unload 70mm/s
Working 7mm/s
Return 65mm/s
9 Main motor 2x2x45Kw
10 CNC system

Type: DELEM DA53T

Delem Co., Netherlands

2 Axis(Y1,Y2)+1 AXIS

Y1,Y2 Axis------Two raster displays installed at both sides of ram to control cylinders.

1axis, bottom die table crowning system controlled by CNC system.
11 Tool
  • With 1 set of punch holder
  • With 1 set of upper punch
  • With 1 set of adjustable type bottom die
12 Seal in the cylinders SKF type or NOK type
13 Hydraulic components BOSCH-Rexroth , Germany
14 Hydraulic pump SUNNY , USA
15 Linear Raster displayer sensor FAGAR, SPAIN
16 Main Electric Elements in cabinet Schneider
17 weight ( 2x145000Kg)
18 Profile dimension (mm) LxWxH

2-6450x4600x6800

With front and back feeding system,

the width: 8800

19 Packing: The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.
20

Accessories

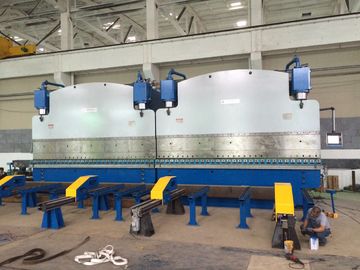

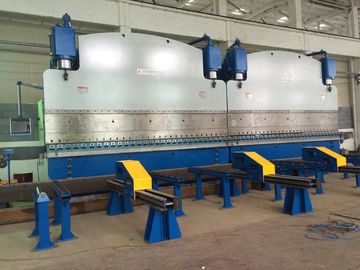

As photos

Motorized front feeding system 1 set (4 units)

Motorized back feeding system 1 set (4 units)
21 Big parts weight and dimension, for shipping:

Side frame: 32ton, 5965x4380x730

Table vertical plate: 12.7ton, 6200x220x160

Ram single piece: 17.1ton,6250x2800x505
Tag:

cnc bending machine

cnc hydraulic press brake bending machine

sheet metal working machine
