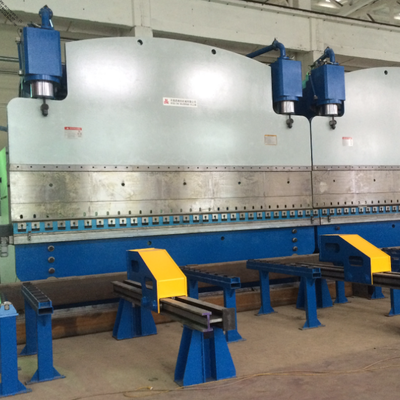

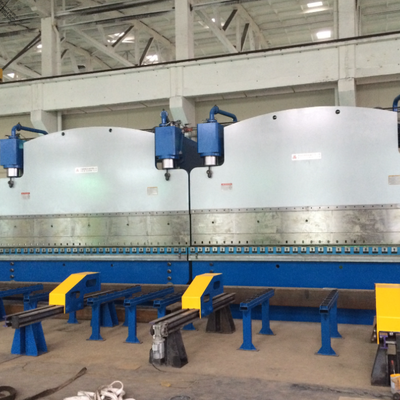

CNC Tandem Hydraulic Press Brake Machine with 2X1200Ton Working Force and 2X6250mm Length of Table for Long Service Life

The 2-WE67K-1200/6250 CNC tandem hydraulic press brake is a high-precision, heavy-duty dual-machine linkage bending equipment independently developed for the production of large-scale tubular structural parts.

It is professionally designed for the precision bending and forming of monopole transmission towers, high-mast lighting poles, ultra-long conical street light poles, communication poles and other large metal tubular structures.

This tandem press brake adopts electro-hydraulic synchronous linkage technology, which realizes synchronous and coordinated operation of two complete bending hosts.

It perfectly solves the forming difficulties of ultra-long, large-tonnage and high-precision sheet metal bending, effectively eliminates the problems of uneven bending accuracy and low forming efficiency of traditional single-machine equipment for ultra-long workpieces. With stable mechanical performance, high bending precision and strong load-bearing capacity, it can meet the mass and standardized production needs of large pole products in the engineering and power industry.

The whole machine adopts international first-line brand components, with stable operation, low failure rate and long service life, realizing high-precision intelligent bending control:

• CNC Numerical Control System: Equipped with Netherlands original imported DELEM DA53T professional bending system, supporting 2-axis (Y1, Y2) synchronous control and 1-axis lower die table automatic crowning compensation system. It can automatically compensate the deflection deformation of the worktable and slider during heavy-load bending, effectively ensuring the straightness and uniform angle of the long workpiece bending surface.
• Linear Detection Sensor: Adopts Spain Fagur high-precision linear raster display sensor, real-time monitoring of slider displacement, with high detection accuracy and strong anti-interference ability.
• Hydraulic System: Hydraulic core components adopt German original parts, with precise oil circuit control and stable pressure output; Hydraulic pump is equipped with American Suuny high-efficiency hydraulic pump, energy-saving and low-noise; Cylinder seals adopt SKF standard high wear-resistant and high-temperature resistant seals, effectively preventing oil leakage and extending the service life of hydraulic components.
• Electrical System: Main electrical components adopt Schneider brand international standard parts, with stable circuit operation, strong overload resistance and high safety factor.

The machine is equipped with professional supporting moulds for pole bending, which is suitable for the forming processing of conical poles, straight poles and other tubular workpieces:

• 1 set of high-precision punch holder 高精度上模模座
• 1 set of integral upper bending punch 整体式折弯上模
• 1 set of adjustable precision lower die 可调式高精度下模,supports multi-specification sheet metal bending adaptation

• Single Machine Weight 单台设备重量:145,000Kg,total double-machine weight 290,000Kg
• Overall Profile Dimension 整机外形尺寸:6450×4600×6800mm (single machine)；with front and rear automatic feeding system, the overall width is 8800mm

Equipped with fully automatic motorized front and rear feeding systems, which solves the problem of difficult handling and positioning of ultra-long and heavy workpieces, realizes automatic feeding and positioning, greatly saves labor costs and improves production efficiency:

• 1 set (4 units) motorized front feeding system
• 1 set (4 units) motorized rear feeding system

The whole machine adopts split disassembly design for convenient ocean transportation and container loading, with standardized packaging and complete parts:

• Side Frame :32Ton,overall dimension 5965×4380×730mm
• Worktable Vertical Plate :12.7Ton,overall dimension 6200×220×160mm
• Integral Ram :17.1Ton,overall dimension 6250×2800×505mm

In view of the super-large volume and weight of the equipment, the whole machine is disassembled and packaged in parts for transportation to ensure the safety and convenience of international logistics. Our professional engineering after-sales team provides full set of on-site installation, assembly, debugging and operation training services overseas. After the equipment is in place, the engineers will complete the equipment assembly, hydraulic debugging, system calibration, precision testing and personnel operation guidance to ensure that the equipment can be put into formal mass production smoothly.

This equipment is specially customized for large pole manufacturing enterprises, widely used in precision bending of ultra-long thick steel plates. It is mainly applicable to power transmission monopoles, high-mast lighting poles, ultra-long conical street light poles, communication signal poles, highway guardrails and other large tubular and long sheet metal structural parts, and is the core supporting equipment for automated production of pole industry.
