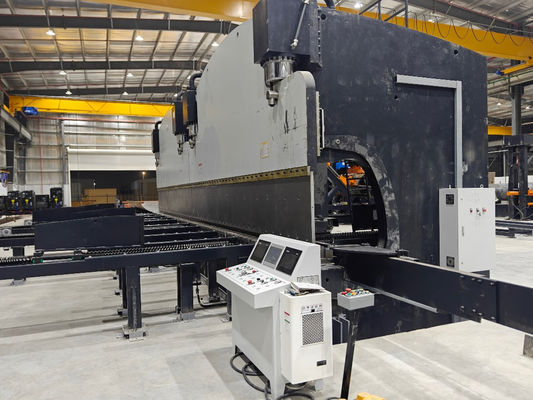

CNC Tandem Hydraulic Press Brake Model : 2-We67k-1200/6250 For making monopole, transmission tubular tower and high mast

CNC Tandem Hydraulic Press Brake Model : 2-We67k-1200/6250 For making monopole, transmission tubular tower and high mast

Brand Name:	CMC
MOQ:	1 set
Price:	negotiable
Payment Terms:	L/C, T/T
Supply Ability:	According to requirement

Detail Information

Product Description

Detail Information

Place of Origin:

WUXI, CHINA

Key Selling Points:

Long Service Life

Ram Stroke:

150mm

Oem:

Acceptable

Supply Ability:

According to requirement

Highlight:

Metal Press Brake Forming Machine

Automobiles Metal Press Brake

150mm Ram Stroke Metal Press Brake

Product Description

CNC TANDEM HYDRAULIC PRESS BRAKE MODEL : 2-WE67K-1200/6250

Application: making monopole, transmission tubular tower and high mast

TECHNICAL FEATURES
1	Type		Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2	Working force		2X1200Ton
3	Length of table		2X6250mm
4	distance between frames		4800mm
5	Throat depth		1600mm
6	Open height		1550mm
7	Stroke		450mm
8	Working Speed	Unload	70mm/s
		Working	7mm/s
		Return	65mm/s
9	Main motor		2x2x45Kw

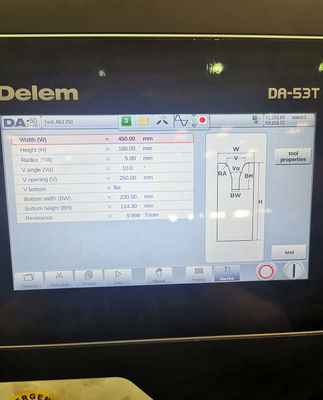

10	CNC system		Type: DELEM DA53T Delem Co., Netherlands 2 Axis(Y1,Y2)+1 AXIS Y1,Y2 Axis------Two raster displays installed at both sides of ram to control cylinders. 1axis, bottom die table crowning system controlled by CNC system.
11	Tool		With 1set of punch holder With 1 set of upper punch With 1 set of adjustable type bottom die
12	Seal in the cylinders		SKF type or NOK type
13	Hydraulic components		BOSCH-Rexroth , Germany
14	Hydraulic pump		SUNNY , USA
15	Linear Raster displayer sensor		FAGAR, SPAIN
16	Main Electric Elements in cabinet		Schneider
17	weight		( 2x145000Kg)
18	Profile dimension (mm) LxWxH		2-6450x4600x6800 With front and back feeding system, the width: 8800
19	Packing:		The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.

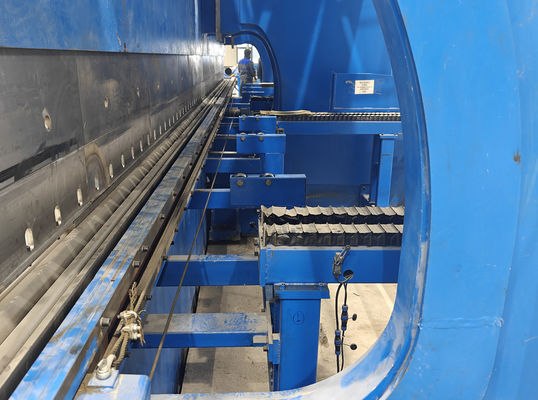

20	Accessories As photos		Motorized front feeding system 1 set (4 units) Motorized back feeding system 1 set (4 units)
21	Big parts weight and dimension, for shipping:		Side frame: 32ton, 5965x4380x730 Table vertical plate: 12.7ton, 6200x220x160 Ram single piece: 17.1ton,6250x2800x505
