CNC Hydraulic Press Brake
Created with Pixso.

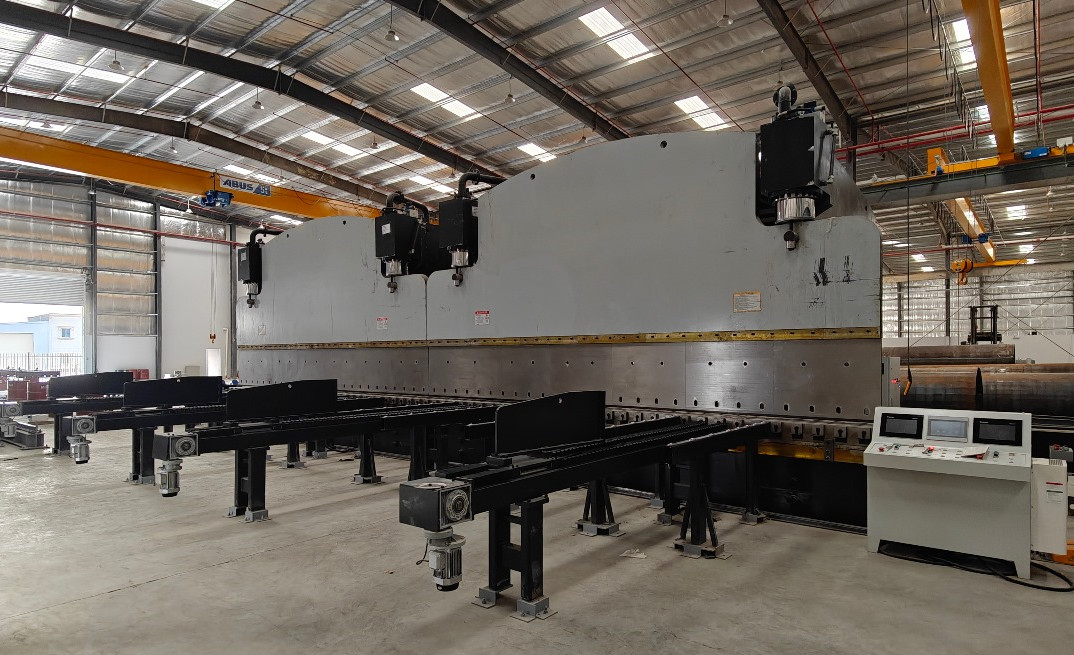

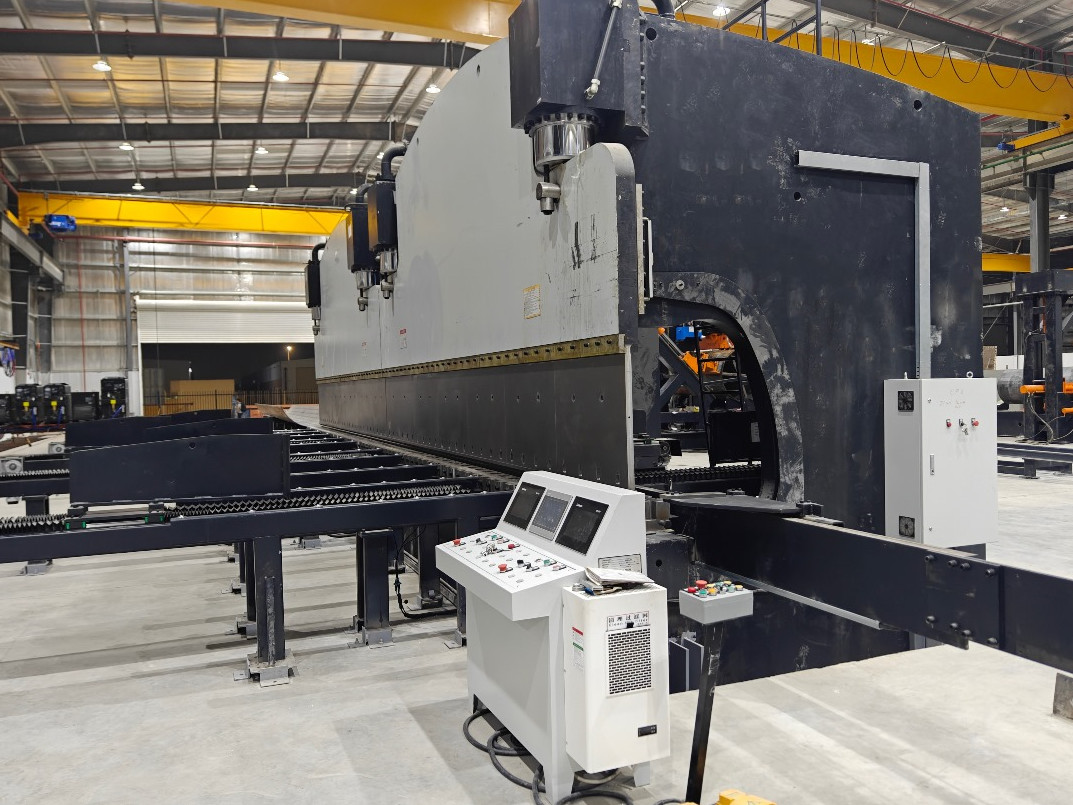

CNC Control System 1200T/6500 Tandem press brake

CNC Control System 1200T/6500 Tandem press brake

Brand Name: wuxi cmc
MOQ: 1 set
Price: Negociate
Payment Terms: T/T, L/C
Detail Information
Place of Origin:
Wuxi-China
Packaging Details:
metal pallet and plastic cover
Highlight:

CNC Control System Hydraulic Press Brake

,

600mm Press Brake

,

CNC Control System Press Brake

Product Description
TECHNICAL FEATURES
1 Type Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2 Working force 2X1200Ton
3 Length of table 2X6500mm
4 distance between frames 4800mm
5 Throat depth 1600mm
6 Open height 1550mm
7 Stroke 450mm



8

Working

Speed

Unload 70mm/s
    Working 7mm/s
    Return 65mm/s
9 Main motor 2x2x45Kw
10 CNC system

Type: DELEM DA53T

Delem Co., Netherlands

2 (Y1,Y2)

11 Tool

See the next page

  • Table with mechanical crowning system
12 Seal in the cylinders SKF type or NOK type
13 Hydraulic components BOSCH-Rexroth , Germany
14 Hydraulic pump SUNNY , USA brand made in China
15 Linear Raster displayer sensor FAGAR, SPAIN
16 Main Electric Elements in cabinet Schneider, Germany brand
17 weight ( 2x145000Kg)
18 Profile dimension (mm) LxWxH

2-6700x4600x6800

With front and back feeding system,

the width: 8800

19 Packing: The machine should be disassemble during transportation.
20

Accessories

As photos

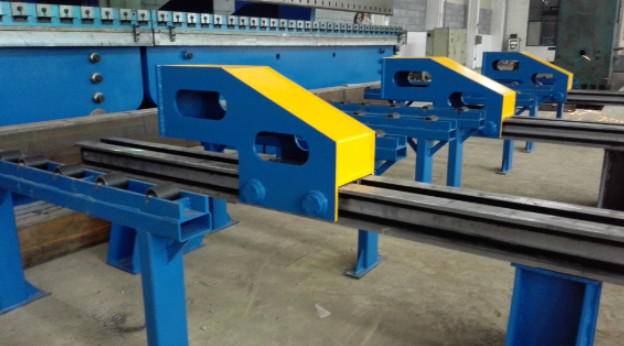

Motorized front feeding system 1 set (4 units)

Motorized back feeding system 1 set (4 units)

21 Big parts weight and dimension, for shipping:

Side frame: 28ton, 5650x4380x730

Table vertical plate: 12.7ton, 6200x220x160

Ram single piece: 17.1ton,6250x2800x505
