| Brand Name: | wuxi cmc |
| MOQ: | 1 set |
| Price: | Negociate |
| Payment Terms: | T/T, L/C |
| TECHNICAL FEATURES | |||

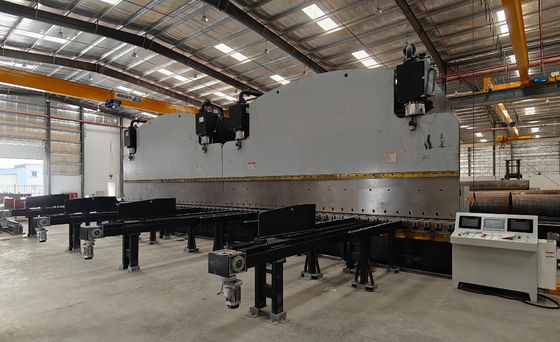

| 1 | Type | Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro | |
| 2 | Working force | 2X1200Ton | |
| 3 | Length of table | 2X6500mm | |
| 4 | distance between frames | 4800mm | |
| 5 | Throat depth | 1600mm | |
| 6 | Open height | 1550mm | |
| 7 | Stroke | 450mm | |
|
8 |
Working Speed |
Unload | 70mm/s |
| Working | 7mm/s | ||
| Return | 65mm/s | ||
| 9 | Main motor | 2x2x45Kw | |

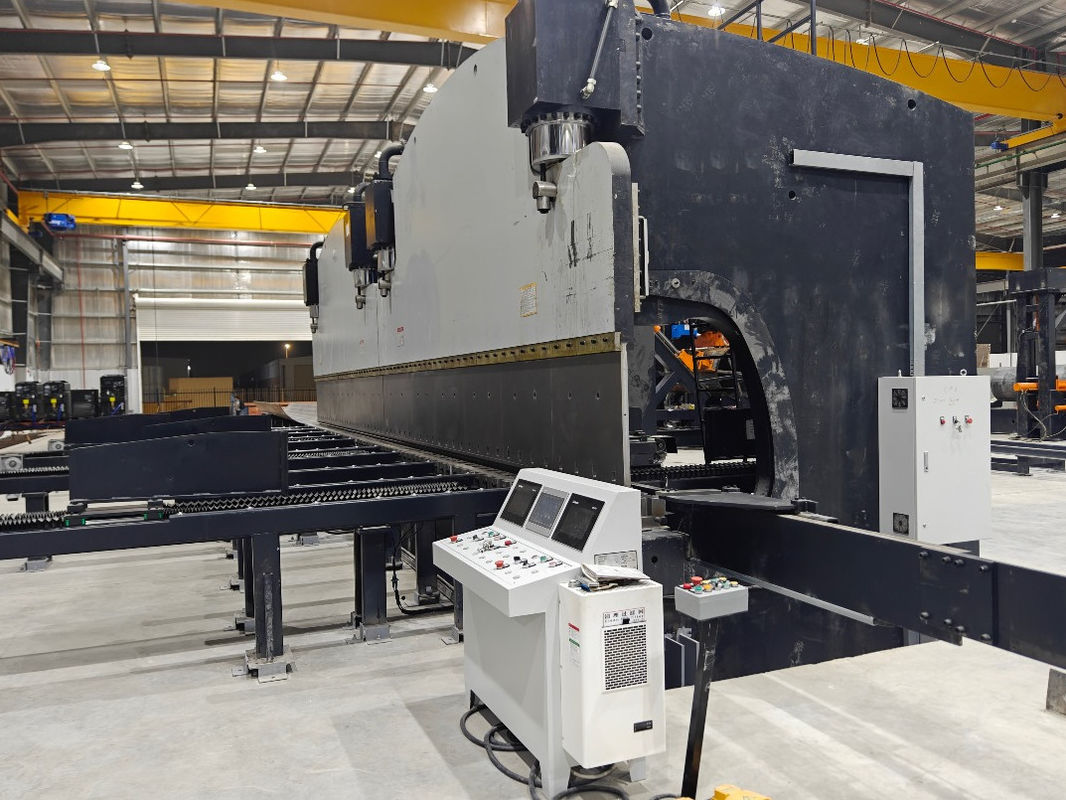

| 10 | CNC system |
Type: DELEM DA53T Delem Co., Netherlands 2 (Y1,Y2) |
|
| 11 | Tool |
See the next page
|
|
| 12 | Seal in the cylinders | SKF type or NOK type | |
| 13 | Hydraulic components | BOSCH-Rexroth , Germany | |
| 14 | Hydraulic pump | SUNNY , USA brand made in China | |
| 15 | Linear Raster displayer sensor | FAGAR, SPAIN | |
| 16 | Main Electric Elements in cabinet | Schneider, Germany brand | |
| 17 | weight | ( 2x145000Kg) | |
| 18 | Profile dimension (mm) LxWxH |
2-6700x4600x6800 With front and back feeding system, the width: 8800 |
|
| 19 | Packing: | The machine should be disassemble during transportation. | |
| 20 |
Accessories As photos |

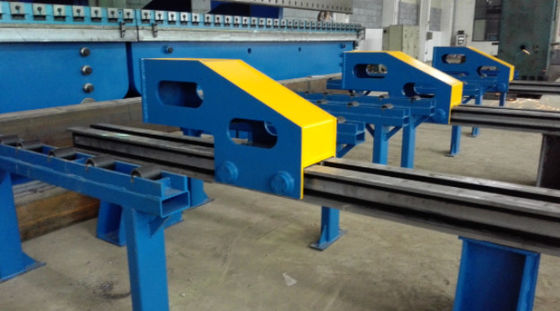

Motorized front feeding system 1 set (4 units) Motorized back feeding system 1 set (4 units) |
|
| 21 | Big parts weight and dimension, for shipping: |
Side frame: 28ton, 5650x4380x730 Table vertical plate: 12.7ton, 6200x220x160 Ram single piece: 17.1ton,6250x2800x505 |
|
