Automatic CNC Press Brake Bending Machine 2-WE67K-1200-6250

1 set
MOQ
negotiation
Price
Automatic CNC Press Brake Bending Machine 2-WE67K-1200-6250
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Stainless Steel cnc hydraulic press

,

Stainless nc hydraulic press brake machine

,

Stainless Steel cnc hydraulic bending machine
Basic Infomation
Place of Origin: Wuxi-China
Brand Name: CMC
Model Number: 2-WE67K-1200-6250
Payment & Shipping Terms
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: T/T, L/C
Supply Ability: According requirement
Product Description
TECHNICAL FEATURES
1 Type Mult-machine Tandem Hydraulic CNC electro-hydraulic synchro
2 Working force 2X1200Ton
3 Length of table 2X6250mm
4 distance between frames 4800mm
5 Throat depth 1600mm
6 Open height 1550mm
7 Stroke 450mm



8

Working

Speed

 Unload 70mm/s
Working 7mm/s
Return 65mm/s
9 Main motor 2x2x45Kw
10 CNC system

Type: DELEM DA53T

Delem Co., Netherlands

2 Axis(Y1,Y2)+1 AXIS

Y1,Y2 Axis------Two raster displays installed at both sides of ram to control cylinders.

1axis, bottom die table crowning system controlled by CNC system.

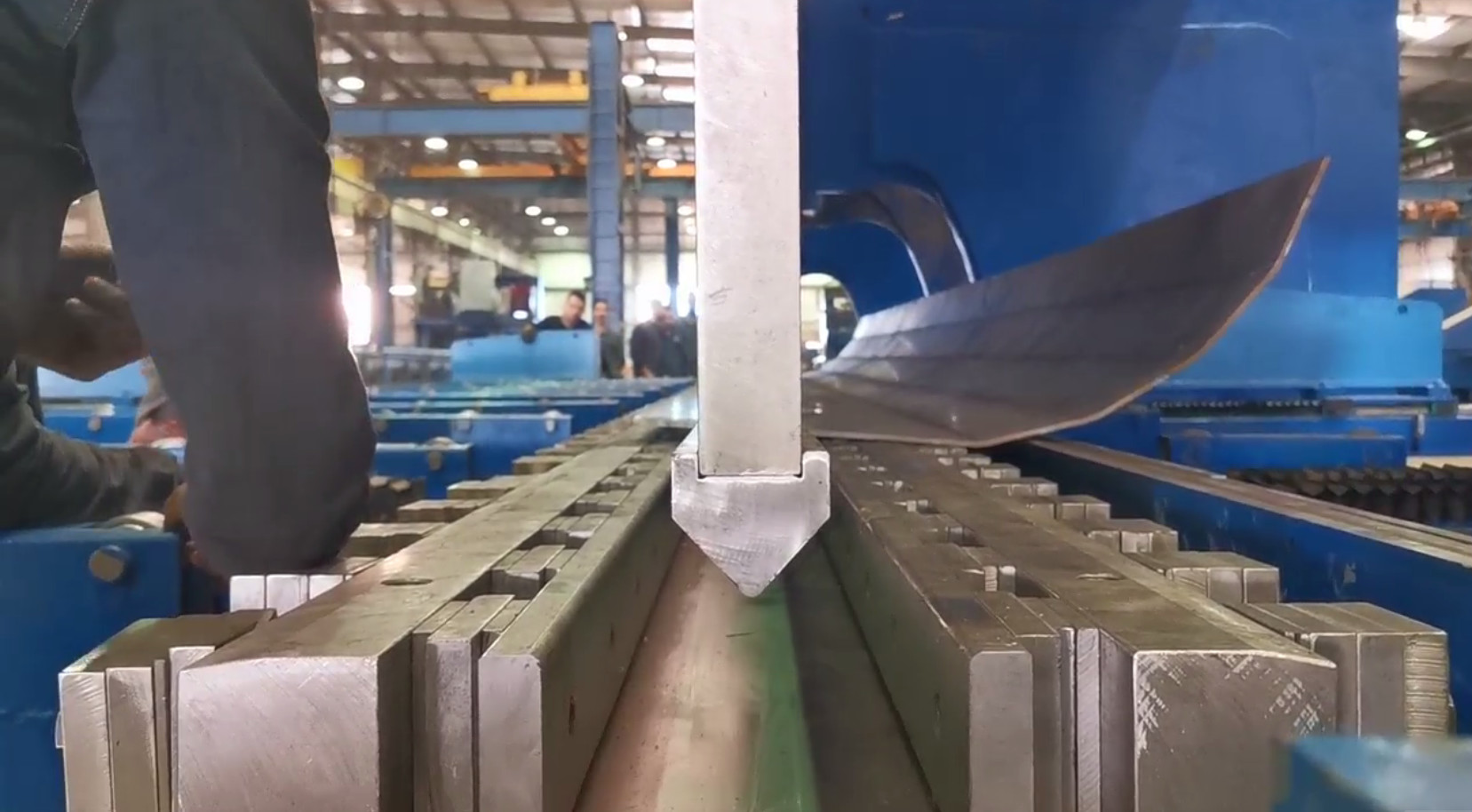

11 Tool
  • With 1set of punch holder
  • With 1 set of upper punch
  • With 1 set of adjustable type bottom die
12 Seal in the cylinders SKF type or NOK type

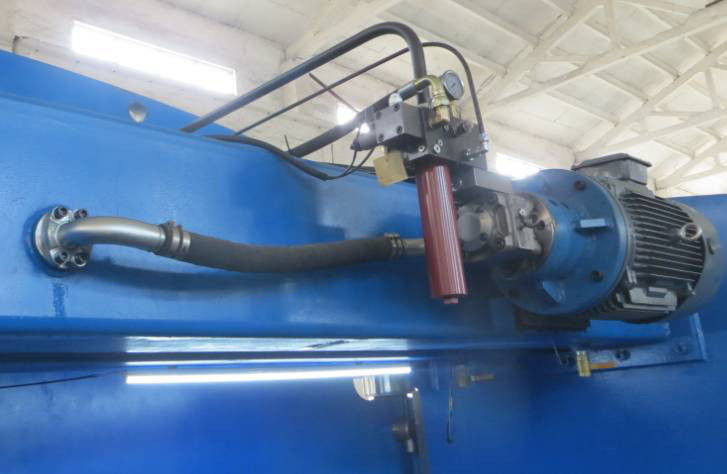

13 Hydraulic components BOSCH-Rexroth , Germany
14 Hydraulic pump SUNNY , USA
15 Linear Raster displayer sensor FAGAR, SPAIN
16 Main Electric Elements in cabinet Schneider
17 weight (2x145000Kg)
18 Profile dimension (mm) LxWxH

2-6450x4600x6800

With front and back feeding system,

the width: 8800

19 Packing: The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.
20

Accessories

As photos

Motorized front feeding system 1 set (4 units)

Motorized back feeding system 1 set (4 units)
21 Big parts weight and dimension, for shipping:

Side frame: 32ton, 5965x4380x730

Table vertical plate: 12.7ton, 6200x220x160

Ram single piece: 17.1ton,6250x2800x505
