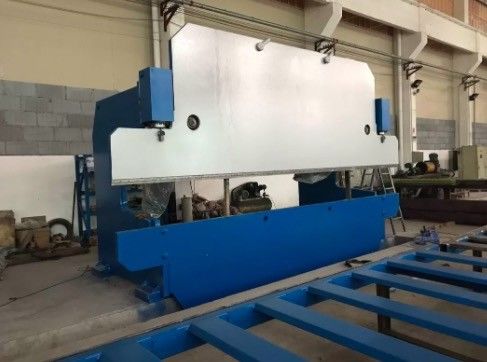

500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm

500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm
500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm

Large Image :  500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm

Product Details:
Place of Origin: WUXI-China
Brand Name: CMC
Model Number: WE67K-500/8200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: nude
Delivery Time: According to machine quantity
Payment Terms: T/T, L/C
Supply Ability: 1 set 90 per days

500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm

Description
Power: Hydraulic,CNC Machine Type: Press Brake,Beading Machine
Condition: New Material / Metal Processed: Stainless Steel,Carbon Steel,Aluminum
Automation: Automatic
High Light:

Aluminum tandem press brake machine

,

CNC tandem press brake machine

,

8200mm 500 ton press brake

8200mm 45 Kw Cnc Hydraulic Press Brake Machine Automatic Carbon Steel



The NC press brake mechanically adjusts the cylinder stroke, and the CNC press brake controls the stroke by hydraulic pressure. The NC press brake is controlled by the balance shaft, and the CNC press brake is synchronized by the servo proportional valves on both sides.


A press brake is a piece of manufacturing equipment that is used to bend sheet metal. A press brake is typically narrow and long so that large pieces of sheet metal can be bent by it. A press brake bends sheet metal by lowering a punch onto sheet metal that has been positioned on top of a die.



TECHNICAL FEATURES
1 Type Hydraulic CNC electro-hydraulic synchro
2 Working force 500 T
3 Length of table 8200 mm
4 Distance between frames 6000 mm
5 Throat depth 1000 mm
6 Open height 1050 mm
7 Stroke 320mm
8 Speed

Fast down speed: 70mm/s

Working speed: 7mm/s

Return speed: 60mm/s

9 Main motor 45 kw
10 CNC system

TYPE: DELEM DA53T

Delem Co., Netherlands

2 Axis(Y1,Y2)+ 1 working table compensation axis

11 Tool With 1 punching and 1 bottom die
12 Main Electric Elements in cabinet Schneider
13 Seal in the cylinders NOK, made in Japan
14 Hydraulic components BOSCH-Rexroth - , Germany
15 Hydraulic pump SUNNY,USA
16 Linear Raster displayer sensor

FAGOR,SPAIN

17 Gross weight 62000kg(net 61000 kg)
18 Overall sizes(mm) LxWxH 8210x4000x6500
19 Packing:
The machine should be disassemble during transportation. Our engineer should go to customer to assemble and adjust it.





500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm 0500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm 1500 Ton Hydraulic CNC Tandem Press Brake Machine 8200mm 2
